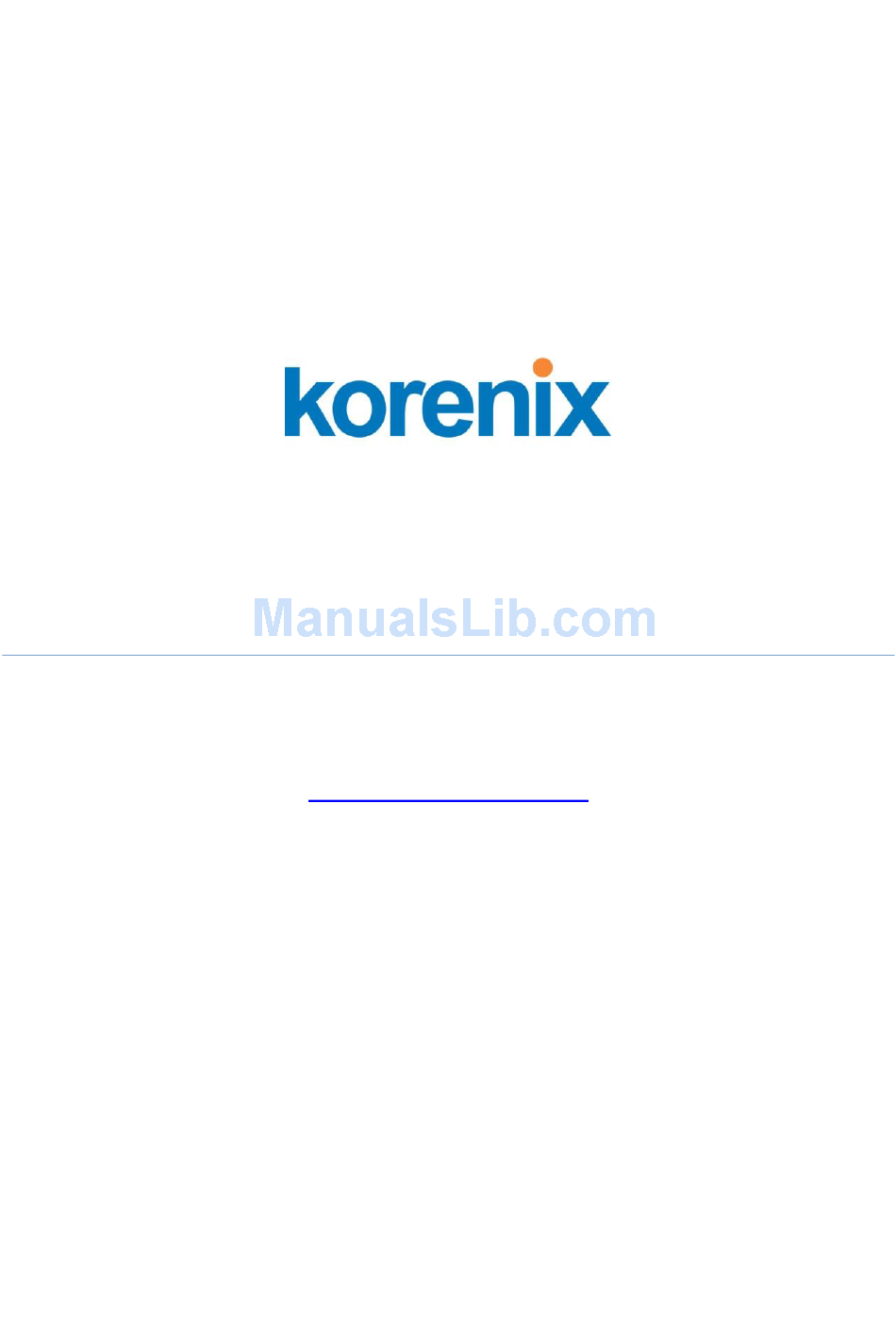

- Page 1 JetBox 5630 HW User Manual www.korenix.com 0.0.1...
-
Page 2: Copyright Notice
Korenix assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. Korenix reserves the right to make changes in the product design without notice to its users. Acknowledgments Korenix is a registered trademark of Korenix Technology Co., Ltd. -
Page 3: Table Of Contents
Table of Content Copyright Notice ........................2 Acknowledgments ........................2 Table of Content ........................3 Chapter 1 Overview ........................4 Chapter 2 Hardware Specification ....................5 Chapter 3 Hardware Feature ......................7 Mechanical Outline ......................7 Front Panel ........................9 Bottom View ........................ -
Page 4: Chapter 1 Overview
Chapter 1 Overview One of the advantages of adopting Korenix JetBox series industrial computers is ready-to-use. All these years, Korenix is devoted to enhance usability and functions of embedded computers in industrial domain. Korenix operating system provides device drivers, protocol stacks, system utilities, supporting services and daemons to make system integration simple. -
Page 5: Chapter 2 Hardware Specification
Battery backup external RTC Battery Ultra-Capacitor (DIP type) Ultra-Capacitor (DIP type) Watchdog timer Embedded hardware watchdog timer to Embedded hardware watchdog timer to auto reset system when system failure auto reset system when system failure Power on/off switch Korenix | Hardware Specification... - Page 6 IEC 61000-4-5, IEC 61000-4-6, IEC IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9 61000-4-8, IEC 61000-4-9 Shock IEC60068-2-27 IEC60068-2-27 Bump IEC60068-2-29 IEC60068-2-29 Vibration IEC60068-2-64 IEC60068-2-64 Free Fall IEC60068-2-32 IEC60068-2-32 Railway EMC EN50121-1/-4 (Compliance) EN50121-1/-4 (Compliance) Warranty 5 years 5 years Hardware Specification | Korenix...
-
Page 7: Chapter 3 Hardware Feature

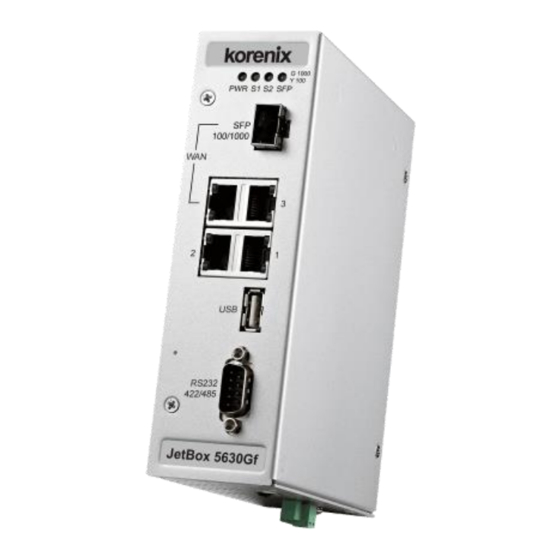

Chapter 3 Hardware Feature Mechanical Outline JetBox 5630Gf-w appearance JetBox 5630Gf-w mechanical outline (160 x 47 x 118 mm) Korenix | Hardware Feature... - Page 8 JetBox 5633Gf-w appearance JetBox 5633Gf-w mechanical outline (160 x 118 x 80 mm) Hardware Feature | Korenix...
-
Page 9: Front Panel
Gigabit RJ45 LAN x3 USB2.0 IP30 Steel Metal Design Compact Size RS232/422/485 2-pin terminal block JetBox 5633Gf-w Combo WAN x1 Mechanical holder for USB dongle Gigabit RJ45 LAN x3 USB2.0 USB2.0 x2 RS232/422/485 2-pin terminal block Korenix | Hardware Feature... -
Page 10: Bottom View
Tighten the terminal screws to prevent the DC wires from loosening. Signal Name Grounding JetBox There is one grounding screw on the bottom side, and please connect the frame grounding of system to the grounding surface to ensure safety and prevent noise to interfere communication. Hardware Feature | Korenix... -
Page 11: I/O Connectors
I/O Connectors 3-6-1 Ethernet (RJ-45) JetBox 5630 series provide three RJ-45 LAN ports and one RJ-45/SFP combo WAN port. The RJ-45 is standard RJ‐45 jack socket. Signal Name MDX0+ MDX0- MDX1+ MDX2+ MDX2- MDX1- MDX3+ MDX3- 3-6-2 JetBox 5630 series provide one RJ-45/SFP combo WAN port. Please don’t connect Ethernet RJ-45 and SFP transceiver at the same time or use wrong SFP spec which does not match with SFP speed setting, or exception conditions would happen. -
Page 12: Rs232/422/485 (Db9)
3-6-4 RS232/422/485 (DB9) JetBox 5630 series provide one serial port (DB9). (Default: RS232, RS485 support 4-wire only) RS-232 RS-422 RS-485 (4-wire) RXD- RXD- RXD+ RXD+ TXD+ TXD+ TXD- TXD- 3-6-5 Console JetBox provides one 3‐pin connector Console port for debug use. -
Page 13: Jetbox 5633Gf-W Usb Holder
2. Plug the dongle into USB socket. 3. Move the platen to press the dongle and tighten the screws. Please do NOT loosen the screws too much or the kits would fall off from JetBox. Korenix | Hardware Feature... - Page 14 2. Use the cable tie to thread through the rear side of guide plate. 3. Surround the USB dongle then tie up the cable tie. Use the cable tie to thread Surround the USB dongle then tie through the rear side of guide up the cable tie. plate. Hardware Feature | Korenix...
-
Page 15: System Login
If the kits fall off from JetBox, you can refer to below picture to assembly. System Login There’re two methods to login JetBox 5630. One is from web GUI, the other is from Linux console. Detail information please refers to Linux and Web user manual.
