- Page 1 Korenix JetNet 3705 Series Industrial Power over Ethernet Switch User’s Manual First Edition, April 2006 www.korenix.com...
- Page 2 Korenix JetNet 3705 Series Industrial Power over Ethernet Switch User’s Manual Copyright Notice Copyright © 2005 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited.
-
Page 3: Fcc Warning
FCC Warning This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Table Of Contents
Product Features ....................1-5 Package Checklist .................... 1-5 Chapter 2 Hardware Installation ................2-1 Introduction....................... 2-2 Dimension of JetNet 3705 and 3705f series ..........2-2 Panel Layout .....................2-2 LED Indicators..................2-3 DIP Switch ....................2-4 Wiring the Power Inputs ................... 2-4 Wiring the Relay Output ................... 2-5 Wiring the Ethernet Ports ................. -
Page 5: Chapter 1 Introduction
Introduction Chapter 1 Korenix JetNet 3705 Series is a power over Ethernet rail switch that is specially designed for industrial or commercial applications. The following topics are covered in this chapter: Overview Ethernet Switching Technology Power over Ethernet Technology Product Features... -
Page 6: Overview

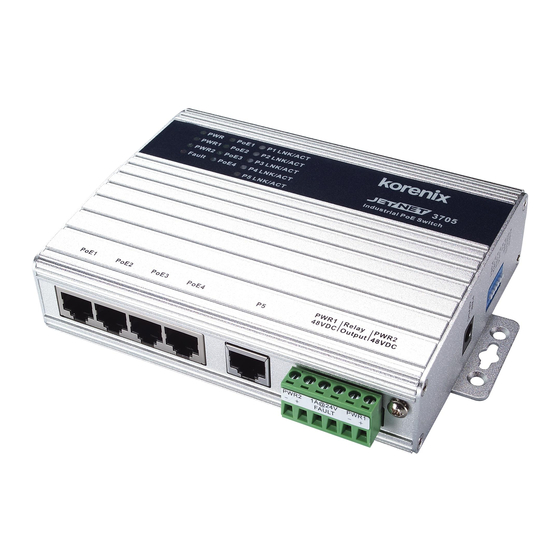

JetNet 3705 Industrial Power Over Ethernet (PoE) Switches have four ports 10/100 TX ports with PoE injector plus one 10/100TX up-link port( JetNet 3705 ) or four ports 10/100 TX ports with PoE injector plus one 100FX up-link port (multi-mode “-m” or single-mode “-s” models, JetNet 3705f ). - Page 7 The JetNet 3705 and JetNet 3705f Industrial Ethernet Switch can break a network into 5 distinct data links or segments (also called collision domains). Since all Ethernet nodes are able to recognize the occurrence of a collision, and since the detection of a collision is principal to the way Ethernet arbitrates media access, large domains containing many nodes can become quite cumbersome.
-
Page 8: Power Over Ethernet Technology
JetNet 3705 equips 4 PoE injector switch ports, with each port delivering power up to 15.4 watts in maximum, and one 10/100Base TX Up-link port transferring data to remote end. The JetNet 3705 conforms to IEEE 802.3af Power over Ethernet (PoE) standard. -
Page 9: Product Features
Introduction Product Features Korenix JetNet 3705 and JetNet3705f Series products have the following features: 4-port 10/100TX with PoE injector plus one 100Mbps fiber up-link port (JetNet3705) 4-port 10/10TX with PoE injector plus one 10/100TX up-link port (JetNet3705f) Support single mode fiber or multi-mode fiber (JetNet3705f) Deliver 15.4W power budget per PoE port... -
Page 11: Chapter 2 Hardware Installation
Hardware Installation Chapter 2 This chapter includes information of installation and configuration. The following topics are covered in this chapter: Introduction Dimension Panel Layout LED Indicators DIP Switch Wiring the Power Inputs Wiring the Relay Output Wiring the Ethernet Ports Wiring the Fiber Ports DIN-Rail Mounting Installation Wall-Mounting Installation... -
Page 12: Introduction
Introduction Dimension of JetNet 3705 and 3705f series Below is the JetNet3705 series mechanical dimension diagram, the unit is mm. Panel Layout Here, we use JetNet 3705 PoE Switch as an example. Top View 1 LED indicators 2 DIP switch... -
Page 13: Led Indicators
Ground Screw Terminal Block LED Indicators There are 13 diagnostic LEDs on JetNet 3705 and JetNet3705f Industrial PoE Switch. These LED indicators provide administrators with real-time system status. The following table describes the function of each LED indicator. Status... -
Page 14: Dip Switch
1. Insert the positive and negative wires of your DC supply into the V+ and V- contacts of the terminal block connector. The acceptable wire range is 12 to 24 AWG. 2. Tighten the terminal screws to prevent the DC wires from coming loose. Korenix JetNet 3705 Series Industrial PoE Switch User’s Manual... -
Page 15: Wiring The Relay Output
Hardware Installation 3. OPTIONAL – DC IN: JetNet 3705 and JetNet 3705f Series Industrial Ethernet Switch has an additional power jack for the connection of AC-DC power converters (wall-transformer type) designed for office use. Be sure that the output voltage is at 48V DC to power the unit. Refer to switch PWR LED to verify the power via the DC-IN jack. -
Page 16: Wiring The Ethernet Ports
Wiring the Ethernet Ports JetNet 3705 and JetNet3705f Series Industrial PoE Switch support 4 RJ-45 ports (JetNet 3705) with automatic MDI/MDI-X crossover, PoE Injector, and automatic 10/100Mbps data rate sensing for 10Base-T or 100Base-TX connections. Automatic MDI/MDI-X crossover allows you to connect to other switches, hubs, or workstations, without regard to using straight-through or crossover cabling. -
Page 17: Connecting To Pd
Be sure the twisted pair cable is bound with the standard RJ-45 pin, especially the pin 4, 5, 7 and If the RJ-45 is bound with the wrong pin number, Jetnet3705 will not recognize the PD and won’t forward DC 48V power to PD, since the JetNet 3705 series switch following the Alternative B mode. -
Page 18: Wiring The Fiber Ports ( Jetnet 3705F Series)
Use a cross screw driver to screw up the DIN rail clip, the DIN rail clip should be screwed in the rear of the ear, and then clipped on the DIN rail. Korenix JetNet 3705 Series Industrial PoE Switch User’s Manual... -
Page 19: Chapter 3 Troubleshooting
This chapter includes the information for general troubleshooting. The following topics are covered in this chapter: Power Connections Incorrect Connections Faulty or Loose Cables Non-standard Cables Improper Network Design LED Indicators Korenix JetNet 3705 Series Industrial PoE Switch User’s Manual... -
Page 20: Power Connections
Power Connections JetNet 3705 and JetNet 3605f is powered by 48V DC. You should verify that the output of your DC supply voltage, or AC-DC power adapter, is at 48V DC while under load. IMPORTANT: The power input range for the JetNet3705 series is from 44v to 57v, but to avoid damage and keep the switch with good performance, we strongly suggest you choice DC 48V as the power input. -
Page 21: Led Indicators
LED will turn off and stop feeding power to the PD. To avoid those wrong situations, be sure the PD power consumption is below 12.95 Watts and the cable is without any failure before install the PD. Korenix JetNet 3705 Series Industrial PoE Switch User’s Manual... -
Page 23: Appendix A Specifications
Specifications Appendix A Standards IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3u 100base-FX Fast Ethernet fiber (JetNet3705f) IEEE 802.3x Flow Control and back pressure IEEE 802.3af Power over Ethernet Protocols CSMA/CD Switch Technology Non-blocking, store-and-forward switching architecture Transmission Rate 14,880 pps for Ethernet port 148,800 pps for Fast Ethernet port... - Page 24 FCC Class A, EN55022 Class A CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-4-11 Safety UL, cUL, CE/EN60950 Stability IEC60068-2-32 (free fall test), IEC60068-2-27 (shock test), IEC60068-2-6 (vibration test) Korenix JetNet 3705 Series Industrial PoE Switch User’s Manual...
-
Page 25: Appendix B Revision History
Revision History Appendix B Edition Date Modifications Mar.30...
