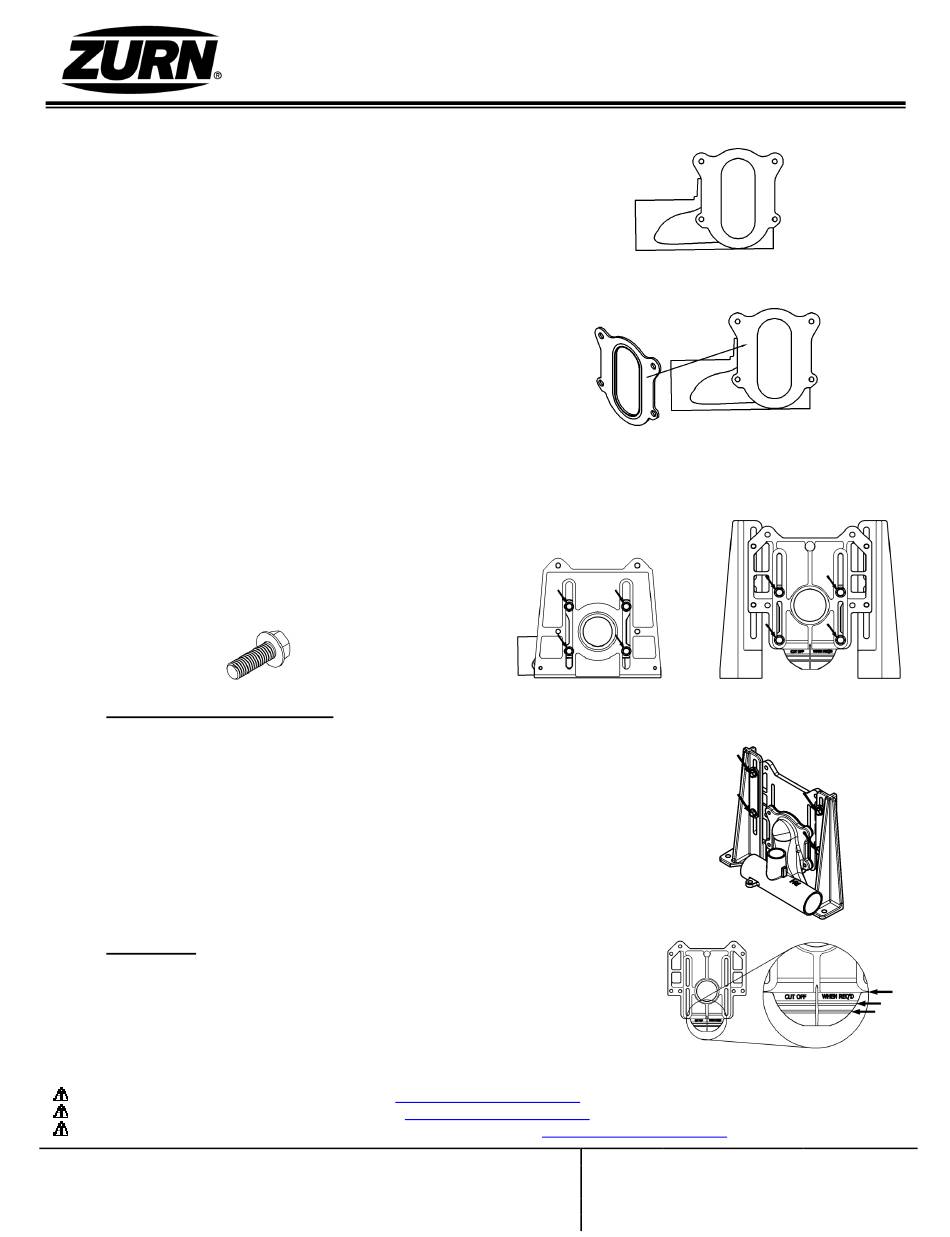

1.
Lay carrier fitting on floor, waste line barrel down.
See Figure 1.
2.
Place faceplate gasket from trim kit on fitting. Align
the gasket holes with the tapped holes in the fitting.
See Figure 2.
3.

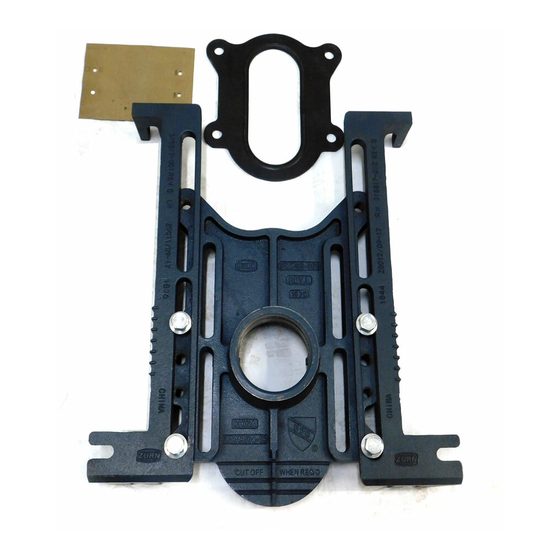

Remove the faceplate/feet from trim kit box and align
the faceplate slots with the gasket and fitting holes.
Secure the (4) ø½ [13] bolts, from 66955-332-9
hardware bag, using a torque wrench (25-35 lb-ft of
torque).
- For ZF1201, see Figure 3a.
- For ZN1201 and Z1201-XH/XB, see Figure 3b.
(4x)
4.
For ZN1201 and Z1201-XH/XB:
To adjust the rough-in height, loosen the feet bolts
(see Figure 4a) and set the desired height (adding
additional height for tiling where required). Secure
bolts using a torque wrench (25-35 lb-ft of torque).
Note: For certain rough-in heights, the
bottom of the faceplate may need to be
removed along the defined cut lines.
See Figure 4b.
For ZF1201:
The rough-in height is pre-set and cannot be
adjusted.
WARNING: Cancer and Reproductive Harm -
ADVERTENCIA: Cáncer y daño reproductivo -
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction -
Zurn Industries, LLC
|
Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax 905-405-1292
www.zurn.com
INSTALLATION INSTRUCTIONS FOR
ZN1201, ZF1201, Z1201-XH, AND Z1201-XB
WATER CLOSET SYSTEMS
ؽ [13]
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
Figure 1
Figure 2
ZF1201
Figure 3a
Figure 4a
www.P65Warnings.ca.gov
Rev.
B
Date:
04/13/2018
C.N. No.
139851
Form #
C51
ZN1201 &
Z1201-XH/XB
Figure 3b
Figure 4b
Page 1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZURN ZN1201
Summary of Contents for ZURN ZN1201
- Page 1 Secure the (4) ø½ [13] bolts, from 66955-332-9 hardware bag, using a torque wrench (25-35 lb-ft of ZF1201 torque). - For ZF1201, see Figure 3a. - For ZN1201 and Z1201-XH/XB, see Figure 3b. ؽ [13] (4x) Figure 3b Figure 3a...
- Page 2 Mark locations on the floor for ZF1201 ZN1201 anchoring studs. - For ZF1201, see Figure 7a. - For Z1201-XH/XB, see Figure 7b. - For ZN1201, see Figure 7c. Figure 7a Figure 7b Figure 7c 8. Prep the floor for concrete anchors and ZF1201 place the carrier back into position.
- Page 3 INSTALLATION INSTRUCTIONS FOR ZN1201, ZF1201, Z1201-XH, AND Z1201-XB WATER CLOSET SYSTEMS ring and coupling are well lubricated. Insert the o-ring, Apply lubricant ensuring it does not twist. See Figure 9. Note: O-ring installation is critical. Improper installation will cause leakage behind the finished wall.
- Page 4 Each rod extends 5/8 [16] past the closet bowl flange (see Figure 11a). - For ZF1201, see Figure 11b. - For ZN1201 & Z1201-XH/XB, see Figure 11c. Figure 11a Note: If the studs are too long they will bottom out in the finishing cap nut, preventing proper gasket compression which may result in leakage.
- Page 5 INSTALLATION INSTRUCTIONS FOR ZN1201, ZF1201, Z1201-XH, AND Z1201-XB WATER CLOSET SYSTEMS 16. Thread a backup nut and bearing washer onto each Finished 5/8 [16] rod. Adjust hardware so that the front surface of each flat washer is 1/16 [2] in front of the finished wall (see Figure 16).
