Sensor-Operated, Battery-Powered
Dual Flush Closet
ZR6000AV-WS1-DF 1.6/1.1 gpf
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of
purchase. Decorative finishes warranted for one year. We will replace at no cost goods that prove defective provided we are notified in writing
of such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in
accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental
or consequential damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and
use, the purchaser shall determine the suitability of the product for his intended use and the purchaser assumes all risk and liability whatever in
connection therewith. Where permitted by law, the implied warranty of merchantability is expressly excluded. If the products sold hereunder are
"consumer products," the implied warranty of merchantability is limited to a period of three years and shall be limited solely to the replacement
of the defective goods. All weights stated in our catalogs and lists are approximate and are not guaranteed.
EcoVantage

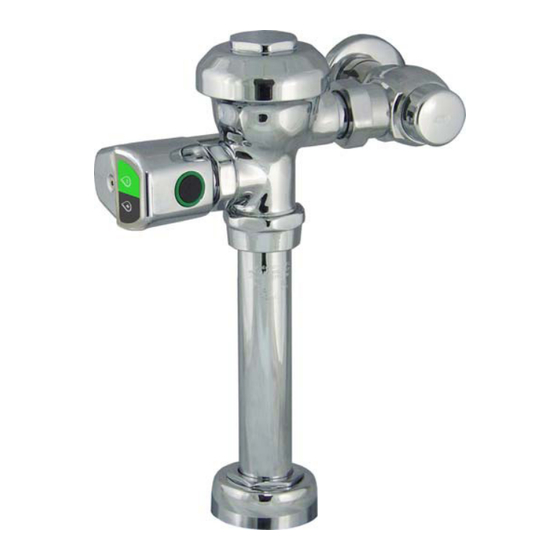

ZR Dual Flush Series
Sensor-Operated, Battery-Powered
Flushometer.
Installation, Operation, Maintenance
and Parts Manual
Patented and Patents Pending
LIMITED WARRANTY
AV
®
TM
Advertisement
Table of Contents
Related Manuals for ZURN EcoVantage AV ZR Dual Flush Series
Summary of Contents for ZURN EcoVantage AV ZR Dual Flush Series
- Page 1 EcoVantage ® ZR Dual Flush Series Sensor-Operated, Battery-Powered Flushometer. Installation, Operation, Maintenance and Parts Manual Patented and Patents Pending Sensor-Operated, Battery-Powered Dual Flush Closet ZR6000AV-WS1-DF 1.6/1.1 gpf WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of...
- Page 2 Suggested Applications: The Zurn ZR DF flush valve is a water savings device. When coupled with 1.6 water conserving toilet and a proper water supply, it will provide years of trouble free performance. When considering the Zurn ZR DF flush valve, it is important to recognize that building layout and pipe sizing for water supplies vary significantly from location to location.
- Page 3 Zurn EcoVantage Dual Flush System Features • Full Flush caution level, the red light will flash when an object is detected. The sensor will provide a full flush after a user is in range for 60 or When batteries reach a lower voltage level, a double blink every 3 more seconds.
- Page 4 45 psi. Note: Installations with running pressure below recommended value may void warranty. Please refer to our web site, www.zurn.com (search Z6000AV-WS1-DF) for a list of recommended bowls that have been tested and proven to perform in our laboratory environment with ZR DF flush valve.
- Page 5 A. Remove the main valve body cover. E. Replace the plas- tic cover and main B. Remove the plastic body cover without cover. reinstalling the dia- phragm kit assem- bly. C. Remove the diaphragm Increase kit assembly from the flush valve Range Phillips Head D.
- Page 6 ZR Dual Flush Flush Valve Solenoid Replacement Instructions Removing the Old Solenoid 1. Turn off water supply to flush valve at shut off (S.O.). 2. Cycle the valve once – flush it to relieve pressure holding the valve closed. 3. Remove the main valve body cap (Item #1) from the flush valve (Item #6) using a wrench.
- Page 7 Parts Replacement Guide CoversV Product No. Outside Cover – Chrome Plated(1) P6000-LL-CP Inside Cover(2) P6000-L Replacement Kits Product No. Low-Consumption Closet Replacement Kit(4) - 1.6/1.1 PR6000-EC-WS1-DF Replacement Parts – Inside Components Product No. Riser Tube(5) PR6000-E13F Low-Consumption Closet Volume Control - 1.6 GpF(3) - Yellow PR6000-EC25-DF Low-Consumption Dual Flush Closet Volume Control - 1.6 GpF(3) - Red PR6000-EC25-WS1-DF...
- Page 8 Tighten chrome cap ZURN INDUSTRIES, LLC 5900 Elwin Buchanan Drive, Sanford, NC U.S.A. 27330, Ph. 1-800-997-3876, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 Rev. D Date: 7/16/2018 C.N.
