HMC3-M1210P0201-V2
Quick Start Guide
HMC3-M1210P0201-V2: 12 Bi-directional type inputs, 10
PNP type transistor outputs. 2 Analog inputs (16-bit
resolution) & 1 Analog output (12-bit resolution)
For more information, please refer to the MAPware-
7000 Programming Manual, available in software help
section and/or you can download from the
Systems website.
For More Information, visit
https:\\www.maplesystems.com

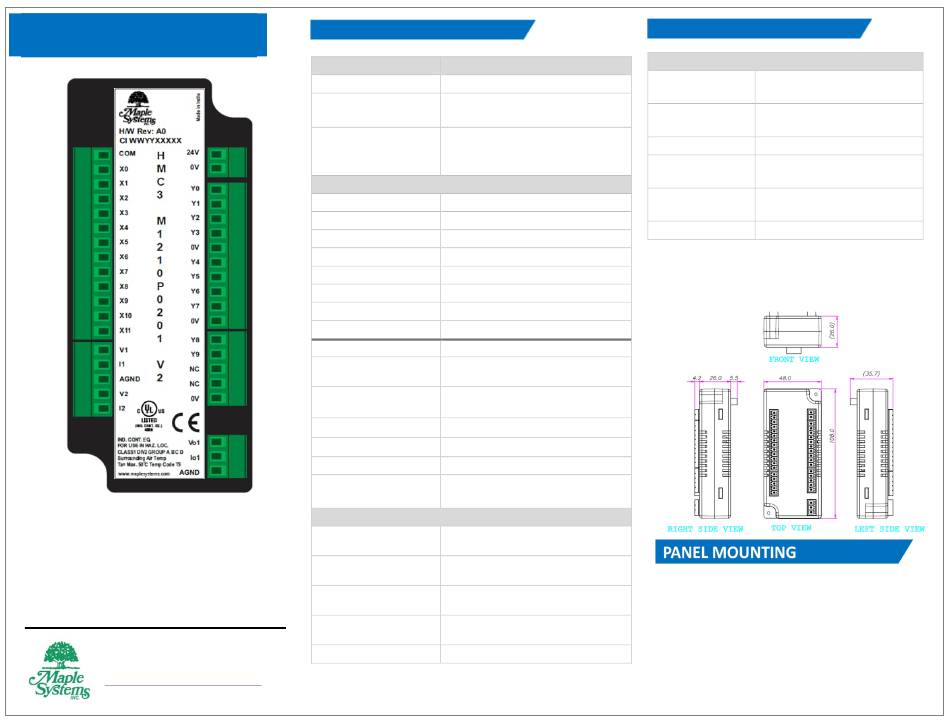

SPECIFICATIONS
Power Supply
Voltage Rating
Power Rating
Isolation
Local I/O Specification
Number of Inputs
Input Design
ON Voltage
OFF Voltage
Nominal Input Voltage
Nominal Input Current
Input Response Time
Input Impedance
Number of Outputs
ON Output Voltage
OFF Output Voltage
Nominal Output Voltage
Nominal Output Current
Output Response Time
Nominal Load Max.
Analog I/O Specification
Analog Input Total
Channels
Input Type
Maple Analog Output Total
Channels
Output type
Accuracy
[Note: HMC3 I/O Module Series only compatible with HMC2000/HMC4000
Series Base Model]
24VDC (±15%), 12V from base
Input/channel: 24VDC, 5mA typical
Output/Channel: 250mA @ 24VDC
Optical Isolation for all I/O points. High
isolation voltage (BV= Greater than
1.5kV)
12 Inputs Bi-directional Type
According to EN 61131-2 Type 1
Min.: 15VDC, Max.: 30VDC
Min.: -3VDC, Max.: 5VDC
24VDC
5mA typical
ON: 10msec, OFF: 10msec
4.8kΩ
10 PNP type transistor outputs
Min ON: 22VDC, Max. ON: 30VDC
(Voltage across load)
Min OFF: 0.2VDC
Max. OFF: 1VDC
30VDC
250mA type/channel
ON: 10msec, OFF: 10msec
96Ω/6W (resistive) @ 24VDC 6VA
(inductive, unity power factor)
2 Input channels (16 bit resolution)
0-20mA, 4-20mA &
0-10VDC, 0-5VDC
1 Output channels (12 bit resolution)
0-20mA, 4-20mA and
0-10VDC, 0-5VDC
± 0.2% of full scale @ 25°C
SPECIFICATIONS
Environment & Approvals
Operating
0 to 60°C
Temperature**
Storage
-20 to 85°C
Temperature
Humidity 10 to 90% (Non-Condensing)
Short Circuit
Yes
Protection
Product 48mm x 108mm x 35.7mm
Dimensions (W x H x D)
Approvals CE, UL
Operating temperature: For UL 0 to 50
**
Dimension Details:
Mounting with base models:
With the expansions, while unpacking the unit, user will
find two screws already attached with base bottom
case. Fix the expansion with the HMI as shown below
with these screws. Fix the Expansion connector with the
expansion female connector given on base HMI.
Apply torque 0.1Nm while fixing with base unit.
° C
