Step 5 - Mocka Brooklyn Change Table and Drawer Set Assembly Instructions Manual

Brooklyn Change Table & Drawer Set
Jolt Wardrobe
Assembly Instructions
ASSEMBLY INSTRUCTIONS
7
Drawers (x2)
13
E
E
15
D
D

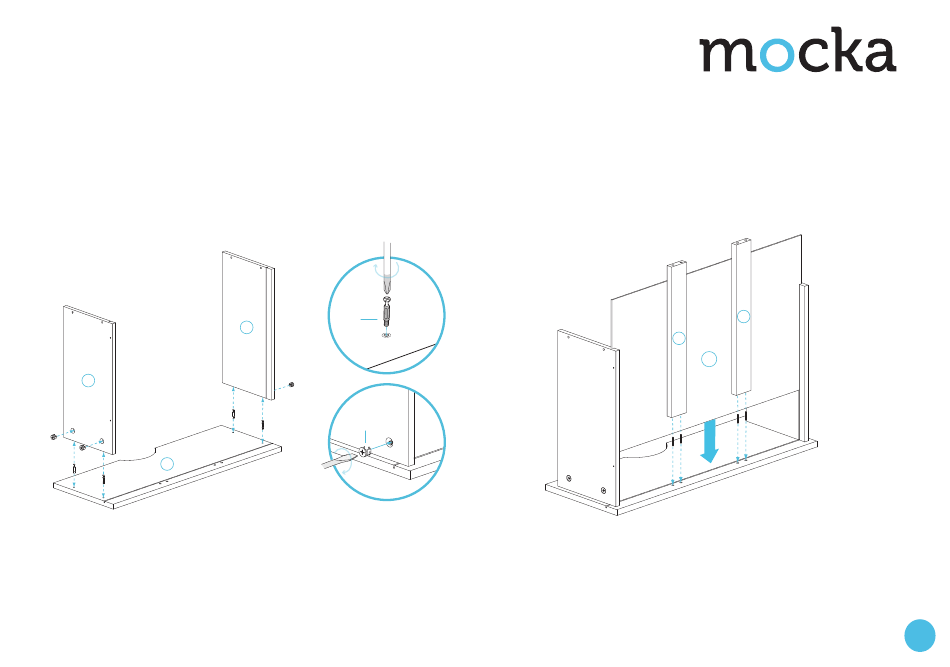

To assemble the drawers, first screw 4x bolts (D) into front panel [15].
Fit panels [12] and [13] over the bolts as shown, ensuring the grooves
in panels face inwards. Secure using 4x locking nuts (E) and tighten
with a screwdriver.
mocka.co.nz | mocka.com.au mocka.co.nz | mocka.com.au
D
12
E
D
D
E
8
Drawers (x2)
x4
x4
Slot panel [16] down into grooves in the side and front panels. Insert 2x
dowels (F) into the end of both support braces [17] and peg into holes in
front panel [15].
17
17
16
F
x2
F
x2
5
5
