Mocka Bronte Bedside Table Assembly Instructions Manual

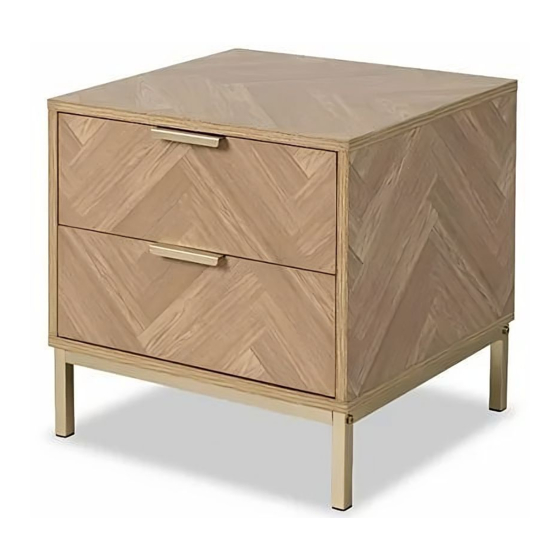

Bronte Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C
screw locking nut bolt
x8 x12 x12
F G H
rail guide screw
x2 x2 x4
K L M
dowel bolt allen key
x8 x4 x1

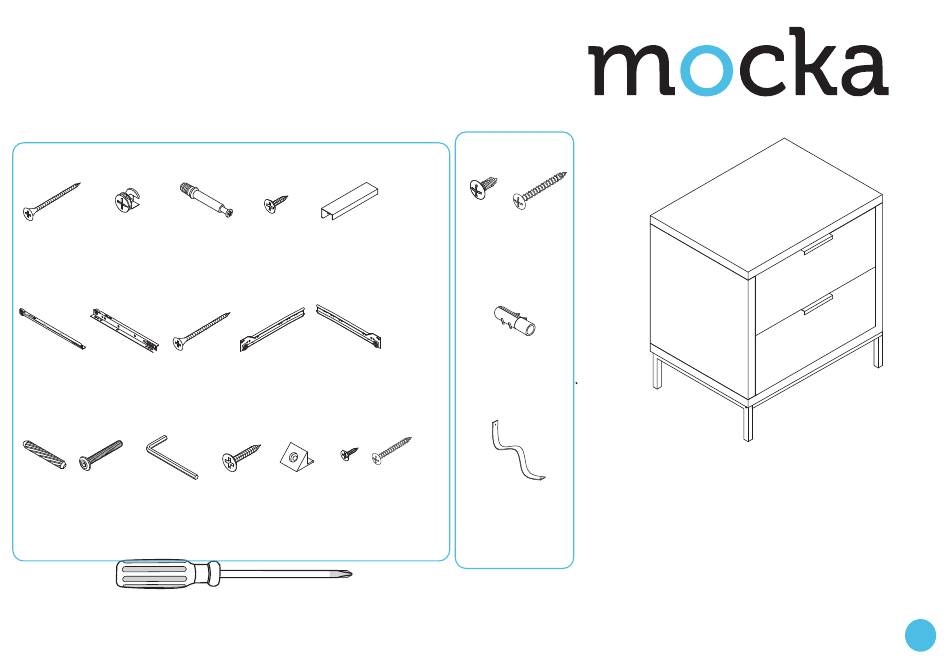

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
D E
screw handle
x16 x2
I J
left rail right rail
x2 x2
N O T P
screw brace screw screw
x4 x4 x4 x8
S R
screw screw
x1 x1
P
wall plug
x1
Q
WARNING:
has the potential to tip over in certain circumstances, ie. if a
wall strap
child attempts to climb on the furniture or in the event
x1
of an earthquake. Accordingly, we recommend that all
furniture is anchored to a wall. We supply a free safety wall
Wall
anchor with all furniture sold and we recommend these are
attachment
used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that
different wall materials may require different fixing devices
from those supplied.
Any furniture that is not anchored to a wall
1
