Step 4 - Mocka Brooklyn Change Table and Drawer Set Assembly Instructions Manual

Brooklyn Change Table & Drawer Set
Assembly Instructions
5
E
E
4
E
E

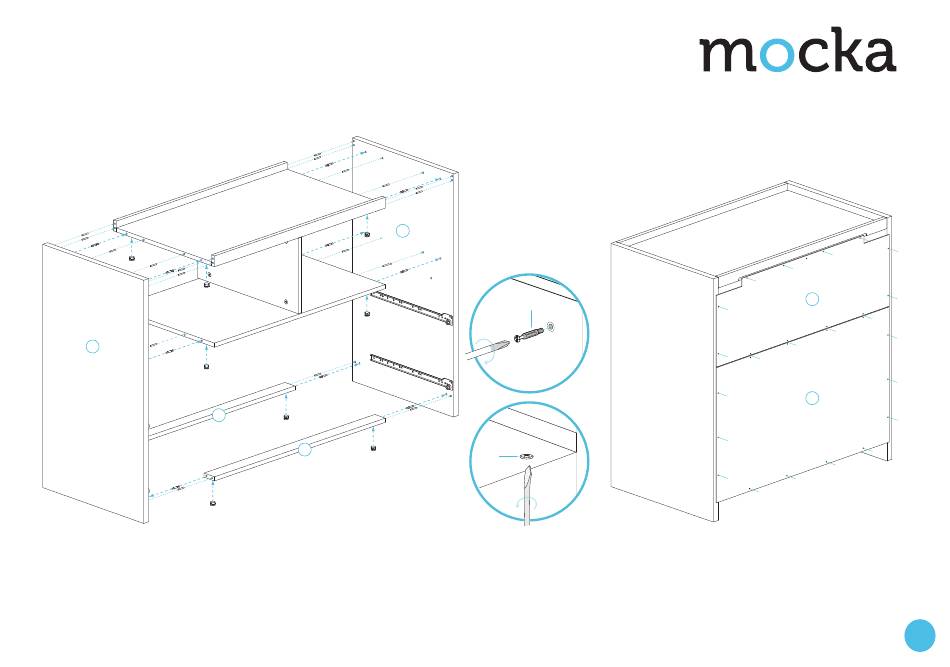

Screw bolts (D) and dowels (F) into side panels [4] and [5] as shown.
Slot (D) and (F) into each end of pieces [8] and [9]. Slide table and shelf
piece, and braces [8] & [9] together between side panels. Secure by
placing hardware (E) in corresponding holes in the underside of pieces
[3, 7, 8, & 9]. Tighten until rigid.
