Mocka Bronte Entertainment Unit Assembly Instructions Manual

Bronte Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C
screw screw hinge
x24 x8 x4
H I J
screw allen key screw
x18 x1 x6
O P Q
screw screw left rail
x4 x6 x1
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
D E F
handle screw bolt
x3 x8 x16
K L M
locking nut screw
screw
x8 x16 x12
R
S T
right rail guide rail
x1 x1 x1

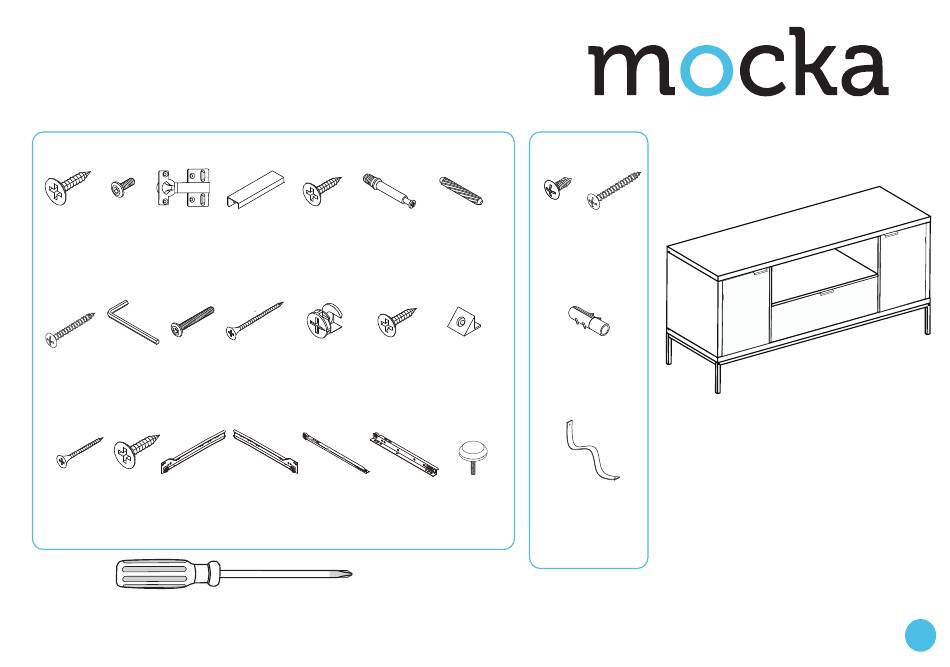

Hardware Supplied
G W X
dowel screw screw
x20 x2 x2
N Y
wall plug
brace
x12 x2
Z
U
wall strap
foot
x2
x2
Wall
attachment
WARNING: Any furniture that is not anchored to
a wall has the potential to tip over in certain
circumstances, ie. if a child attempts to climb on
the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend
these are used to prevent your product tipping.
The fixing device provided should fit most wall
types, but please note that different wall
materials may require different fixing devices
from those supplied.
1
