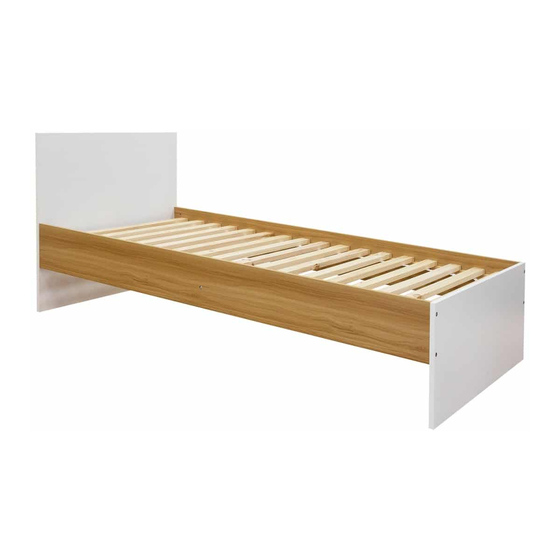

Brooklyn Single Bed
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.

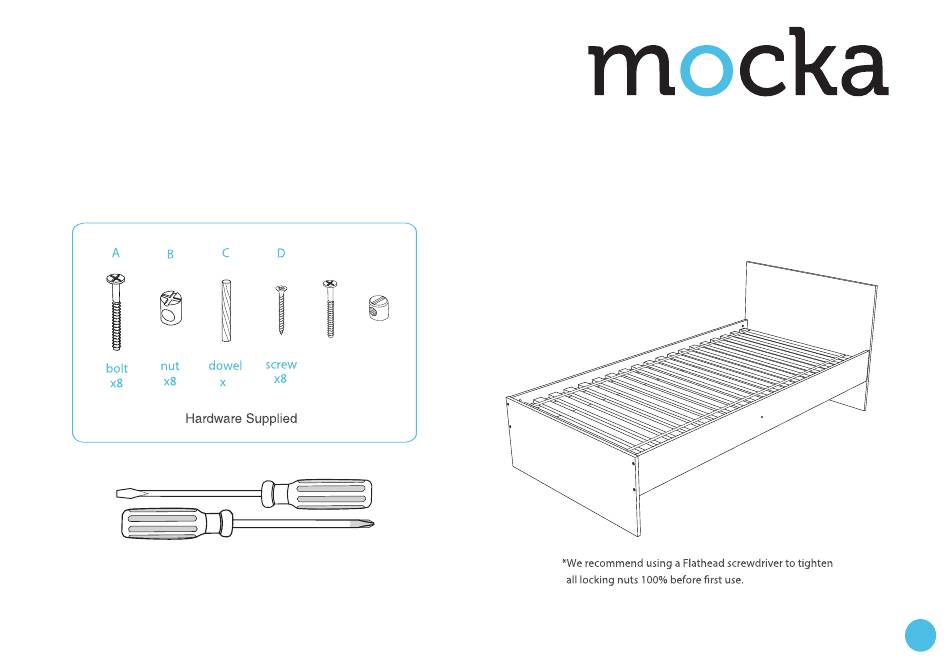

E
F
nut
bolt
x2
x2
6
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
1
mocka.co.nz | mocka.com.au
Advertisement
Related Manuals for Mocka Brooklyn
Summary of Contents for Mocka Brooklyn
- Page 1 Brooklyn Single Bed Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. bolt Phillips & Flathead screwdrivers required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au...
- Page 2 Brooklyn Single Bed Assembly Instructions To begin assembly of the Brooklyn Single Bed, insert 2x dowels (C) into panel [5] and attach each end to panels [1] using 2x bolts (E) and secure with 2x nuts (F). Tighten with a screwdriver.
- Page 3 Brooklyn Single Bed Assembly Instructions mocka.co.nz | mocka.com.au...
- Page 4 Brooklyn Single Bed Assembly Instructions Unroll the base slats [4] and place into position on the inner Attach the base slats to the supports using 2x screws (D) in support of the side panels. Ensure the slats align in place with each corner as shown.
