Mocka Brooklyn Underbed Storage Box Assembly Instructions

Enlarged version

Brooklyn Underbed Storage Box

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

bolt

locking

dowel

x16

nut x16

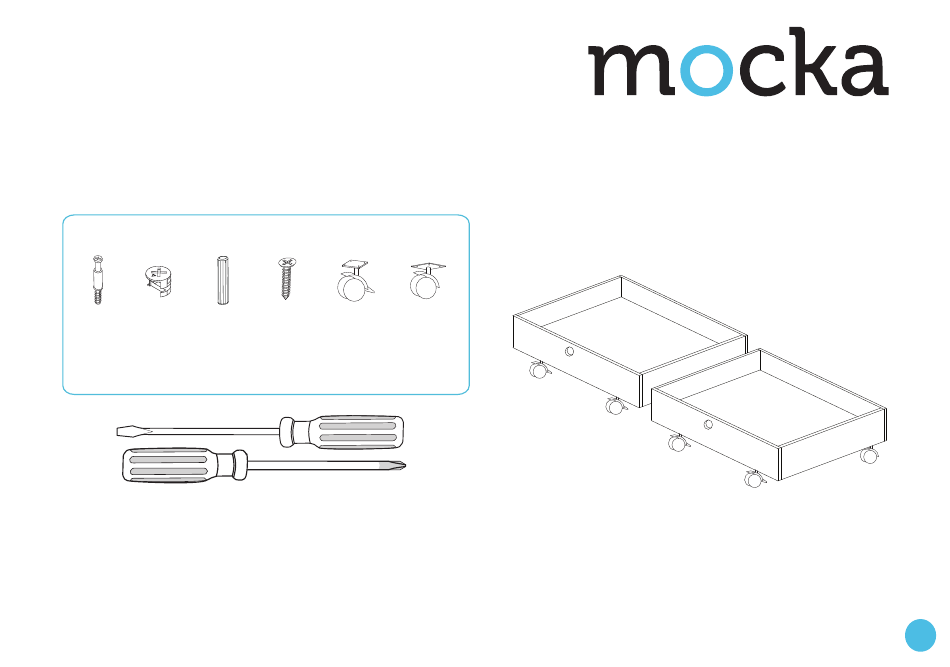

Hardware Supplied

Phillips & Flathead screwdrivers required

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.

Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.

mocka.co.nz | mocka.com.au

screw

wheel

x16

wheel

Table of Contents

Do you have a question about the Brooklyn Underbed Storage Box and is the answer not in the manual?

Page 1 Brooklyn Underbed Storage Box Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. bolt locking dowel screw wheel wheel nut x16 Hardware Supplied Phillips & Flathead screwdrivers required For quicker assembly, we recommend the use of a power drill on a low-speed setting.
Page 2 Brooklyn Underbed Storage Box Assembly Instructions Attach the two side panels [2] to the base panel [1] with 4x bolts (A), 4x Attach the front [4] and back panel [3] with 12x bolts (A), 4x dowels (C) dowels (C) and secure with 4x locking nuts (B). Tighten with a and secure with 12x locking nuts (B).
Page 3 Brooklyn Underbed Storage Box Assembly Instructions Attach 2x wheels (E) and 2x wheels (F) to the underside of the box as Repeat steps 1 to 3 to complete the second box. You’re done, enjoy! shown, using 16x screws (D). Tighten with a screwdriver.
