Brooklyn Midi Drawers
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
locking nut
x30
dowel
bolt
x14
x30
E
F
small screw
x40
L + R
x8

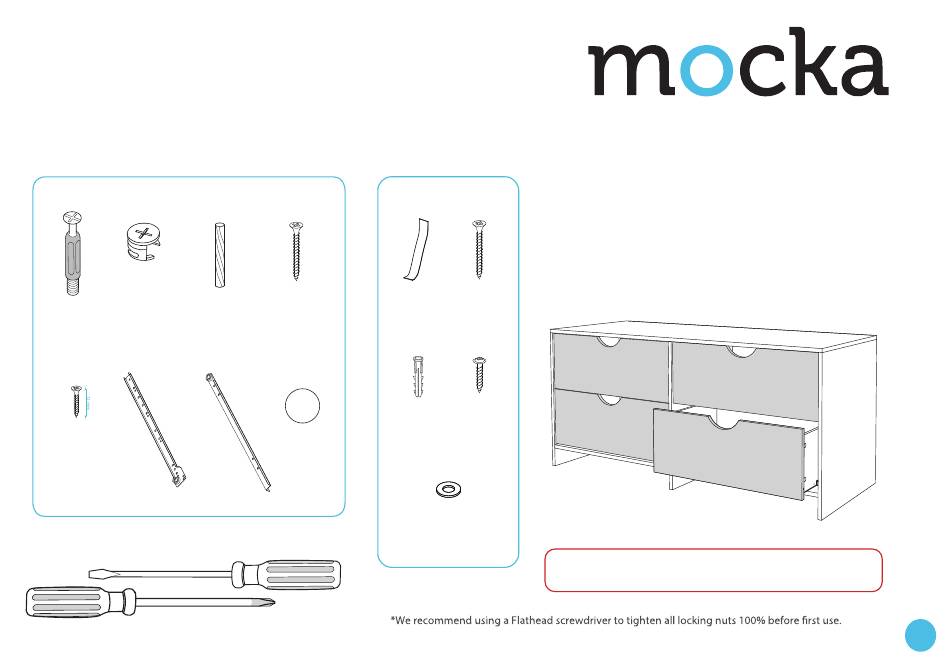

Hardware Supplied
Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
C
D
long screw
x16
G
H
hole cap
x16
L + R
x8
WARNING:
W
to tip over in certain circumstances, i.e. if a child attempts to climb up
on the furniture or in the event of an earthquake. Accordingly, we
recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device provided should
fit most wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Wall
Safety
Screw
Strap
X
Y
wall
r/washer
anchor
screw
x1
x1
Z
washer
x1
Wall Strap
Once assembly is complete, please DO NOT drag the product
(lift only to move). Dragging may damage this product.
Any furniture that is not anchored to a wall has the potential
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Brooklyn Midi Drawers
Summary of Contents for Mocka Brooklyn Midi Drawers
- Page 1 Brooklyn Midi Drawers Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Brooklyn Midi Drawers Assembly Instructions Screw in bolts (A) and insert dowels (C) into holes in panel [2]. Slot Screw in bolts (A) and insert dowels (C) into holes in panel [2]. Slot together with panel [3] as shown. Place locking nuts (B) into together with panel [4] as shown.
- Page 3 Brooklyn Midi Drawers Assembly Instructions Screw in 2x bolts (A) and insert 2x dowels (C) into holes in panel [5]. Screw in 2x bolts (A) and insert 2x dowels (C) into holes in panel [6]. Slot Slot together with the rest of the structure as shown. Place 2x locking together with the rest of the structure as shown.
- Page 4 Brooklyn Midi Drawers Assembly Instructions Slot back panel [7] into grooves on the back of the unit. Ensure the Screw 6x bolts (A) and insert 6x dowels (C) into holes in panel [1]. Slot panel is aligned and slides down into place.
- Page 5 Brooklyn Midi Drawers Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Drawers (x4) Drawers (x4) To assemble the drawers, first screw 4x bolts (A) into front panel [8]. Fit Slot panel [11] down into the grooves in the side and front panels.
- Page 6 Brooklyn Midi Drawers Assembly Instructions Drawers (x4) Drawers (x4) Place back panel [12] into position and fasten into place using 4x Attach rail hardware (G) to both left and right side of the drawer using screws (D). screws (E). Repeat Steps 7 to 10 until all four drawers are fully assembled.
- Page 7 Brooklyn Midi Drawers Assembly Instructions Attach 8x slide rails (F) inside cabinet using 3x small screws (E) in each Slide all four completed drawers into place on the rails in the cabinet. rail. Fasten all screws with a screwdriver. Ensure they easily slide open and closed.
- Page 8 Brooklyn Midi Drawers Assembly Instructions Safety Strap Strap Washer wall anchor wall screw Attach 1x safety strap (W) to the top of the back side of the unit using Once assembled lift furniture into place, do not drag. Use a drill to create 1x r/washer screw (Y).
