M-LOCKS RotoBolt User Manual And Mounting Instructions

Technical Manual
Mounting Instructions
EM2050
CHARACTERISTICS
The RotoBolt lock can be mounted in all four mounting directions. Also, by flipping the lock, all
blocking directions can be achieved. The mounting dimensions are standard. The lock is
delivered with metric (M6) mounting screws.
The electronics feature a 6-digit main code that can be changed by the user. With the main code
a secondary code can be activated and deleted. If a valid code has been entered, the lock
electronics removes the blocking for 3 seconds and the boltwork can be moved into OPEN
position by pushing the bolt inside the lock case. When moving the boltwork into LOCKED
position the RotoBolt automatically secures.

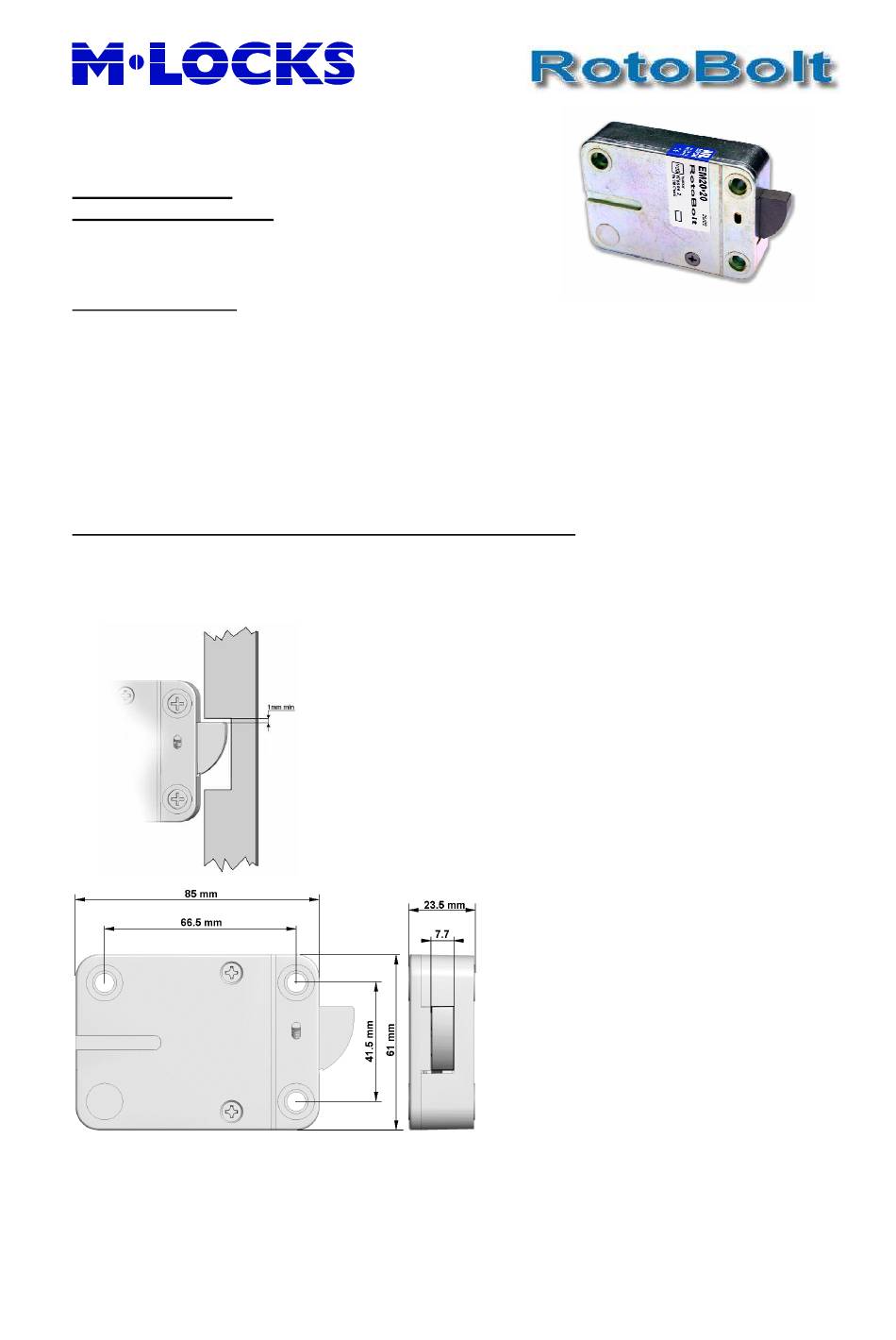

BOLTWORK REQUIREMENTS and MOUNTING INSTRUCTION
The maximum allowed cable/spindle-hole diameter is 11mm (if located under the lock body)
If the RotoBolt lock is used in conjunction with another lock, the boltwork must be constructed in a
way that the RotoBolt secures first.
Tie cables away from moving parts.
M-LOCKS BV
Vlijtstraat 40
NL-7005 BN Doetinchem
In the LOCKED position the distance between the RotoBolt bolt
and the boltwork part that is moving the lock bolt should be
approximately 1 mm.
Only use NL LOCK supplied screws to mount the lock. Tighten the
screws securely so the lock body is attached firmly to the
mounting surface.
(Maximum Torx 5, 5 Nm)
ver. 1.0 2010 05 26
1 of 2
Mount the entry unit following the
manufacturer's instruction.
Insert the connector of the entry unit in
the outer (ENT) position. Connect
battery/alarm box connector (if used) in
the inner (BAT) position. Check that the
connector(s) is completely seated. To
remove the connector(s), carefully lift and
pull it out.
In the entry unit or battery/alarm-box,
connect a 9V Duracell Procell Alkaline or
Energizer battery.
