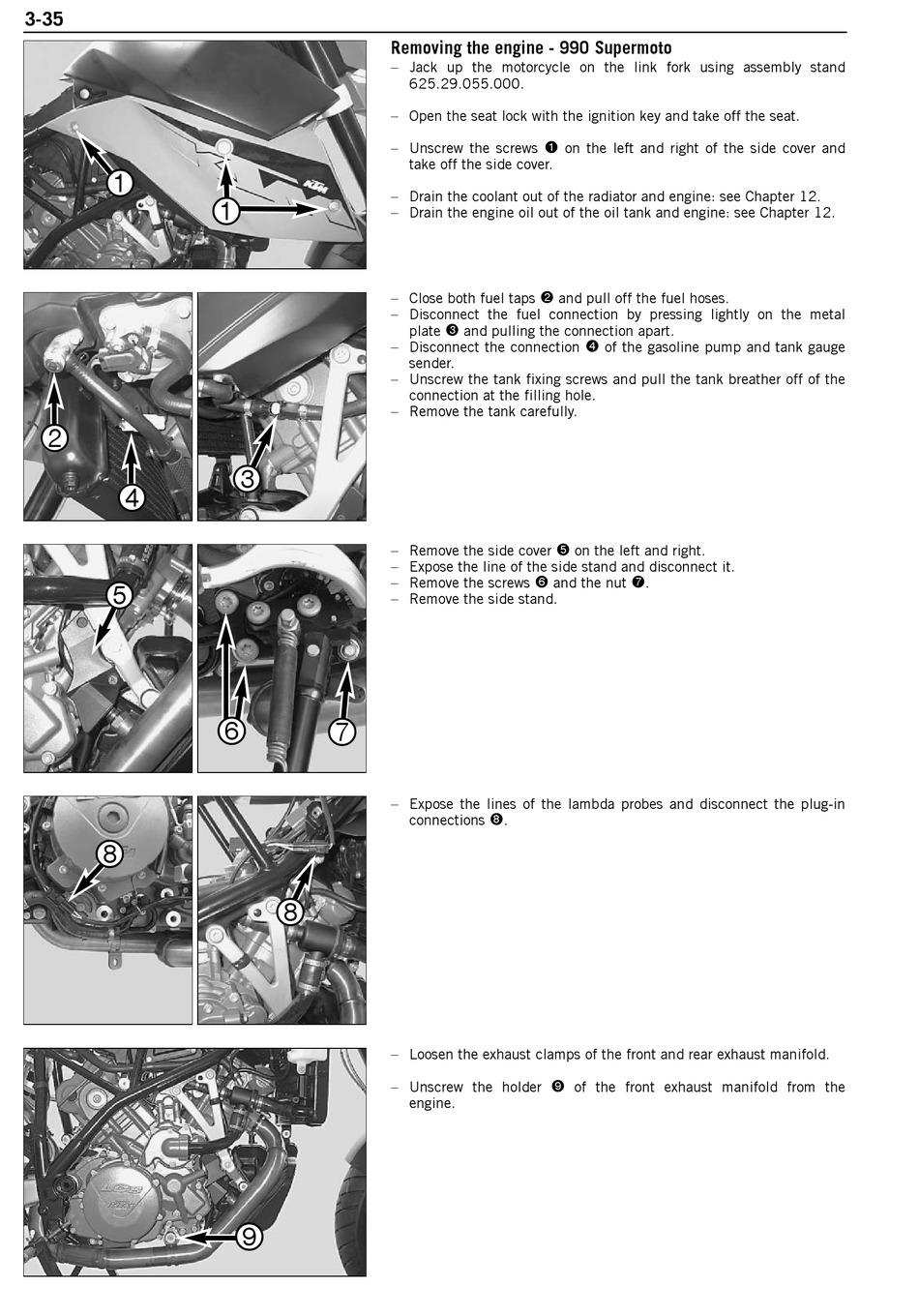

Removing the engine - 990 Supermoto

– Jack up the motorcycle on the link fork using assembly stand
625.29.055.000.
– Open the seat lock with the ignition key and take off the seat.
– Unscrew the screws on the left and right of the side cover and
1
take off the side cover.
– Drain the coolant out of the radiator and engine: see Chapter 12.
– Drain the engine oil out of the oil tank and engine: see Chapter 12.
– Close both fuel taps and pull off the fuel hoses.
2
– Disconnect the fuel connection by pressing lightly on the metal
plate and pulling the connection apart.
3
– Disconnect the connection
sender.
– Unscrew the tank fixing screws and pull the tank breather off of the
connection at the filling hole.
– Remove the tank carefully.
– Remove the side cover
5
– Expose the line of the side stand and disconnect it.
– Remove the screws and the nut
6
– Remove the side stand.
– Expose the lines of the lambda probes and disconnect the plug-in
connections .
8
– Loosen the exhaust clamps of the front and rear exhaust manifold.
– Unscrew the holder
9
engine.
of the gasoline pump and tank gauge
4
on the left and right.
.
7
of the front exhaust manifold from the
