Low voltage warning function of Rx battery
: OPTIMA Rx is mounted the 2-way function that send the occurred low voltage data of Rx to Tx during the flight.

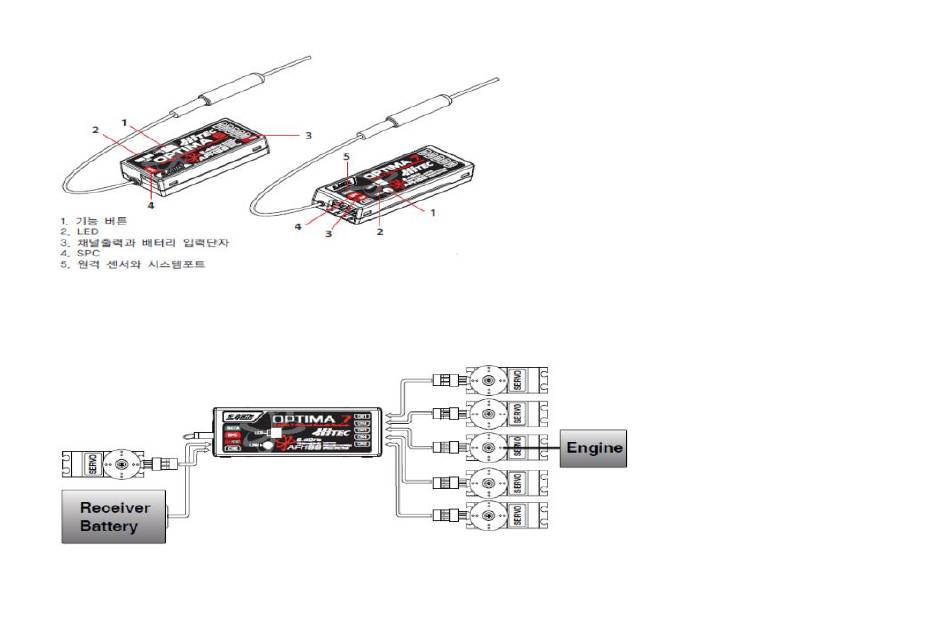

OPTIMA receiver wiring
Glow engine / Petrol engine / Electric wiring diagram of the Plane.
-
The following figure illustrates the battery wiring that is used Li-Po 2Cell or 4.8 ~ 6V Ni-MH.
-
The following figure illustrates the wiring that BEC supply power to Rx and servo also the Electronic transmission supply power to the motor.
