1.2 Communication Terminals 60-210A(From SR12 to SR17)

1.2.1 RS485 Serial Port

M1 Terminal Description
11 RS485 A+
12 RS485 B-

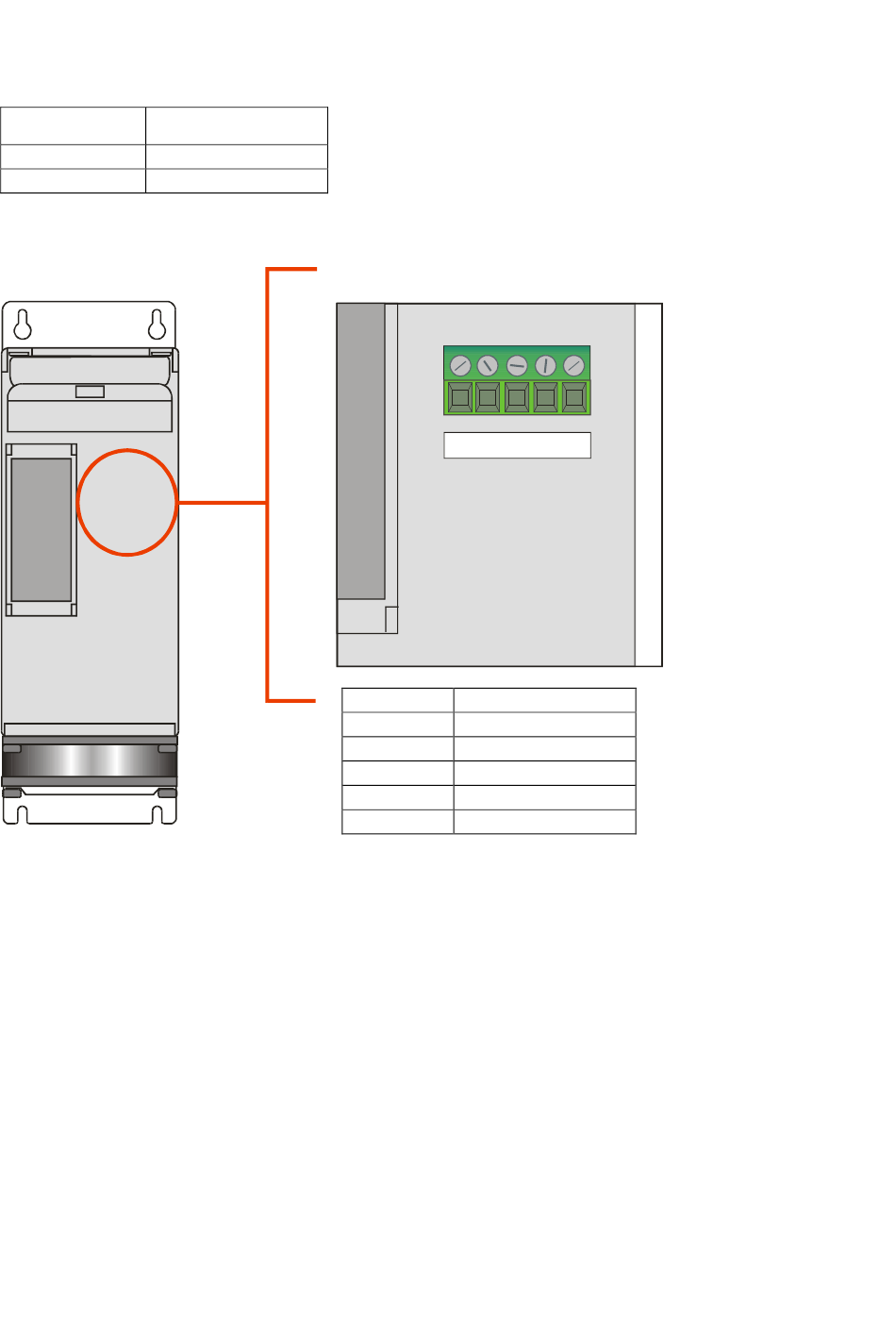

1.2.2 Second Serial 485 Configuration Connectors

Communication Manual
The serial communication port RS485 is available on the
Command.
On this port may be done a network up to 127 REVO C.
1 2 3 4 5
M4
Description
Terminal
1 +24V
2 GND
3 Not connected
4 RS485 A+
5 RS485 B-
Revo C
