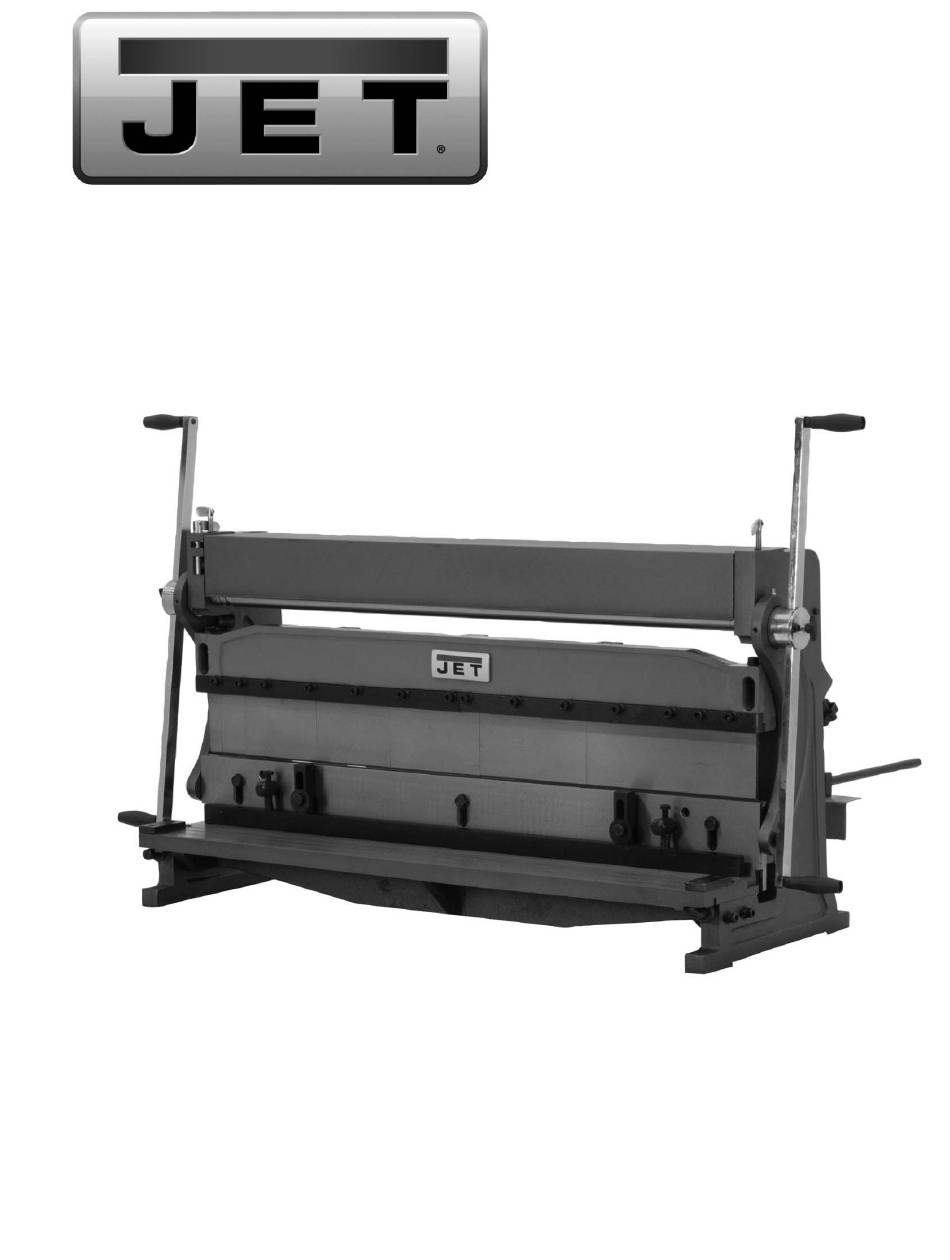

- Page 1 Operating Instructions and Parts Manual Shear, Brake and Roll Machines Models SBR-30M, SBR-40M SBR-40M shown 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-756031 Ph.: 800-274-6848 Revision C 12/2015 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... -
Page 3: Table Of Contents
8.0 Optional Accessories ........................... 13 9.0 Troubleshooting ............................14 10.0 Replacement Parts ............................. 14 10.1.1 SBR-30M Shear/Brake/Roll – Exploded View ..................15 10.1.2 SBR-30M Shear/Brake/Roll – Parts List ....................16 10.2.1 SBR-40M Shear/Brake/Roll – Exploded View ..................18 ... -
Page 4: Safety Warnings
5. Do not use this machine for other than its that are specifically designed to filter out intended use. If used for other purposes, JET microscopic particles. disclaims any real or implied warranty and holds itself harmless from any injury that may 19. -
Page 5: About This Manual
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Specifications
Shipping ................. 332 lb. (151 kg) ........561 lb. (255 kg) The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Set-Up And Assembly
6.0 Set-Up and Assembly 6.1 Floor Diagrams Figure 1 – hole centers for Shear, Brake and Roll Figure 2 – hole centers for Stands (OPTIONAL) -
Page 8: Unpacking
(NOTE: An optional stand is available for this machine; see Section 9. Contact your JET distributor to order.) 7. Remove one handle (A, Figure 3) from each operating handle assembly, using 8mm hex key. -
Page 9: Press Brake Set-Up
NOTE: For brake operation, install guide rods To adjust brake beam (G, Figure 7) for 90° into upper set of holes (Figure 4); for shear bends at bottom of stroke: operation, install in lower set of holes (Figure 1. Slightly loosen locking screws (H) using 8mm hex key. - Page 10 Figure 10 6.5.2 Blade Rotation/Replacement Figure 8 6.5.1 Lower Blade Adjustment Exercise caution when working with or near the blades. Use work Upper and lower shear blades have been factory gloves when handling them. aligned should require immediate adjustment. Should re-alignment be needed in the shearing blades reversible...
-
Page 11: Slip Roll Set-Up
4. Insert material between upper and lower rolls, 6.6 Slip Roll set-up and tighten bolt (R, Figure 12) to lower the upper roll, until material fits snugly. The upper Do not roll material larger roll must have sufficient pressure on work than 30”... - Page 12 5. Reinstall upper roll, and tighten screw and bolt 3. Make further passes if needed, along with (S, Figure 13). incremental idle roll adjustments. 6.6.1 Flat Rolling Softer metals (copper, aluminum, etc.) can be processed through the slip roll machine to straighten, flatten, or reduce their thickness.
-
Page 13: Maintenance/Lubrication
Description maintenance work around the shear blades. 754030 Optional Stand for SBR-30M 1. Apply #2 lithium tube grease once a month to 754040 Optional Stand for SBR-40M the grease nipples on both ends of frame (A, Figure 17). 2. Keep the slip rolls clean and rust-free, and frequently apply a light coat of oil to them. -
Page 14: Troubleshooting
9.0 Troubleshooting Trouble Probable Cause Remedy SHEAR Adjust gap to accommodate thicker Incorrect blade gap. material. Material won’t cut. Machine capacity exceeded. Use materials within capacity. Unequal blade gap. Make blade gap equal. Not contacting table guides. Maintain consistent guides contact. Cuts not square. -
Page 15: Sbr-30M Shear/Brake/Roll - Exploded View
10.1.1 SBR-30M Shear/Brake/Roll – Exploded View... -
Page 16: Sbr-30M Shear/Brake/Roll - Parts List
10.1.2 SBR-30M Shear/Brake/Roll – Parts List Index No. Part No. Description Size 01 ....SBR30M-01G .... Frame (left) ....................1 02 ....SBR30M-02G .... Frame (right) ....................1 03 ....SBR30M-03G .... Arm ........................ 2 04 ....SBR30M-04....Cross Beam ....................1 05 .... - Page 17 Index No. Part No. Description Size 60 ....TS-1503031 ....Socket Head Cap Screw........M6x12 ........2 61 ....TS-1492051 ....Hex Cap Screw ..........M12x50 ........ 1 62 ....SBR30M-62....Spring Pin ............5x20mm ....... 4 63 ....SBR30M-63....Plain Washer ............ 12mm ........2 64 ....
-
Page 18: Sbr-40M Shear/Brake/Roll - Exploded View
10.2.1 SBR-40M Shear/Brake/Roll – Exploded View... -
Page 19: Sbr-40M Shear/Brake/Roll - Parts List
10.2.2 SBR-40M Shear/Brake/Roll – Parts List Index No. Part No. Description Size 01 ....SBR40M-01G .... Frame (left) ....................1 02 ....SBR40M-02G .... Frame (right) ....................1 03 ....SBR30M-03G .... Arm ........................ 2 04 ....SBR40M-04....Cross Beam ....................1 05 .... - Page 20 Index No. Part No. Description Size 60 ....TS-1504021 ....Socket Head Cap Screw........M8x12 ........2 61 ....SBR40M-61....Hex Cap Bolt............. M12x65 ........ 1 62 ....SBR30M-62....Spring Pin ............5x20mm ....... 4 63 ....SBR30M-63....Plain Washer ............ 12mm ........2 64 ....
