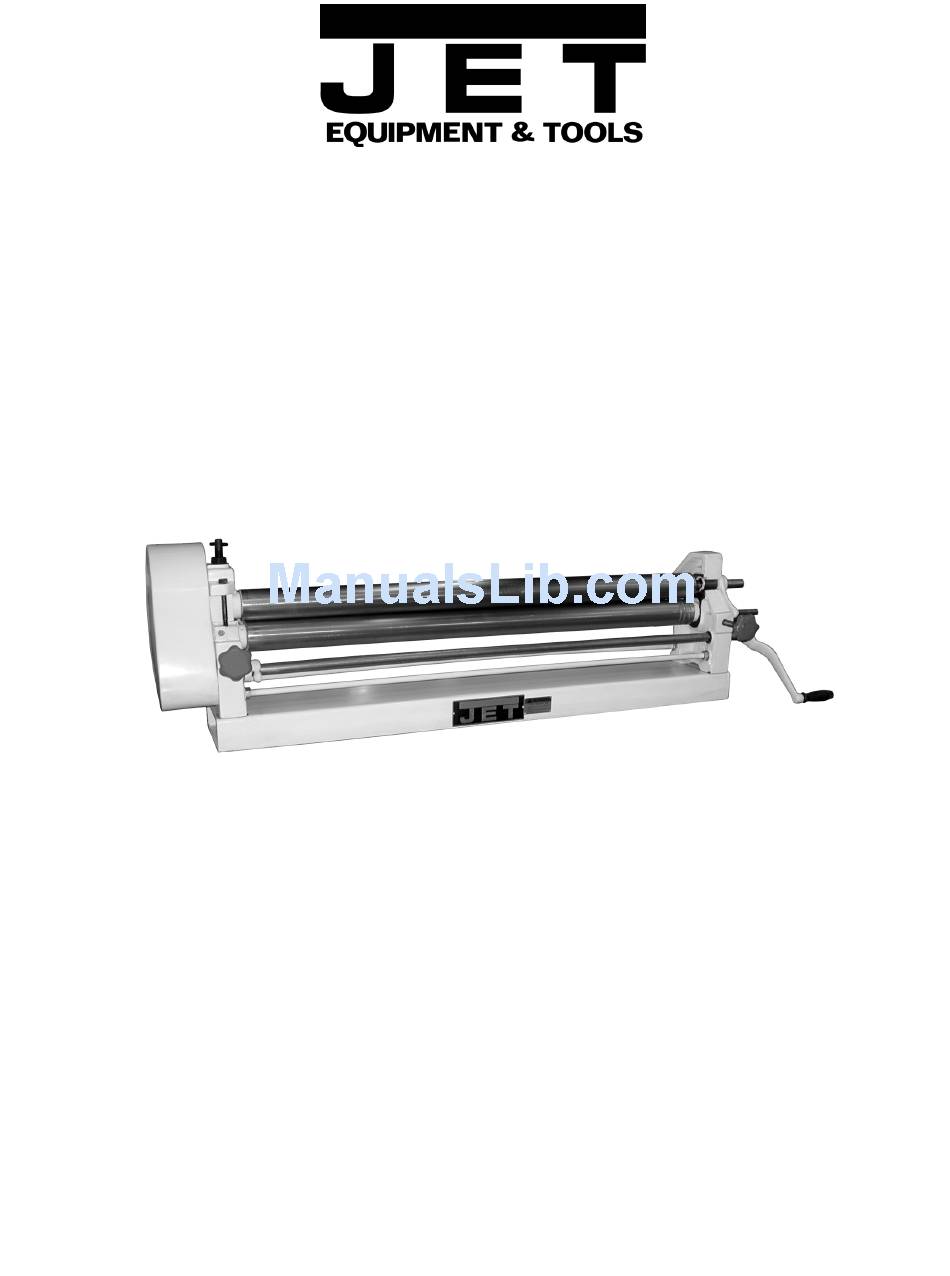

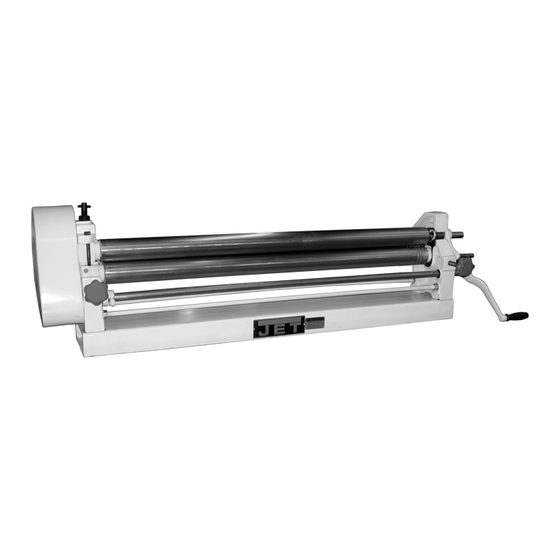

- Page 1 OWNER'S MANUAL SR-1650N Slip Roll JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com e-mail jet@jettools.com M-754050 03/01...
-
Page 2: Important Information
JET will return repaired product or replacement at JET’s expense, but if it is determined there is no defect, or that the defect resulted from causes not within the scope of JET’s warranty, then the user must bear the cost of storing and returning the product. - Page 3 WARNING For your own safety, read the owner’s manual before operating the slip roll.
- Page 4 Specifications: SR-1650N Stock Number..........................754050 Capacity (mild steel) ..........................16 Maximum Forming Length ........................50” Number and Diameter of Rolls ...................... 3 and 3” Minimum Forming Radius ........................2” Wire Grooves........................1/4", 5/16”, 3/8” Overall Dimensions (LxWxH) ....................68” x 22” x 24”...
- Page 5 Breakdown for the SR-1650N Slip Roll...
- Page 6 45 ..SR1650N-45 ....Hex Nut ..........M20......... 1 46 ..SR1650N-46 ....Cotter Pin ..........3.2x30........1 47 ..SR1650N-47 ....Plate..................... 2 ....SR1650N-ID....ID Label (not shown)................1 ....SR1650N-W ....Warning Label (not shown) ..............1 ....SR1650N-J ....JET Label (not shown) ................1...
