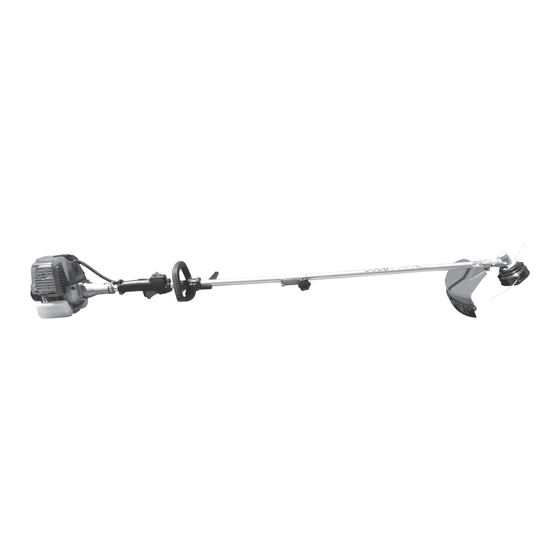

Bushranger MT2601 Operator's Manual
  1. Manuals
  2. Brands
  3. Bushranger Manuals
  4. Trimmer
  5. MT2601
  6. Operator's manual

Bushranger MT2601 Operator's Manual

Hide thumbs

Advertisement

Table of Contents

OPERATOR'S MANUAL
MULTI-TOOL
MT2601
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT2601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bushranger MT2601

Summary of Contents for Bushranger MT2601

  • Page 1 OPERATOR’S MANUAL MULTI-TOOL MT2601...
  • Page 2 IMPORTANT NOTES Thank you for purchasing your Bushranger Multi-Tool Trimmer. ® This instruction manual will aid in the assembly, safe operation and maintenance of your Multi-Tool. Please read the following warnings to ensure safety and the long life of your product.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety & Handling Safety Instructions 03 - 05 Hazards Personal Safety Equipment Features & Definitions Feature Definitions Assembly Procedures Handle Guards Split Shaft Assembly Connection Of Attachment Trimmer Line Fitting 10 - 11 Fitting Trimmer Head Operating Instructions Oil Fill Procedures Fuelling procedures 15 - 17...

  • Page 4: Safety Instructions

    SAFETY & HANDLING Safety Instructions Do not operate the Multi-Toolbefore reading all Instructions & reading all Safety & Handling sections. Operator Safety • Wear the necessary safety equipment, as listed on page (6), in the Personal Safety Equipment Section. • Always wear heavy, long pants. Do not wear loose clothing, jewellery, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.
  • Page 5 SAFETY & HANDLING Fuel Safety Continued • Move at least 3 metres away from the fuelling site before starting the engine. • Wipe all traces of fuel on the unit before starting the engine. • Change your clothes before starting the unit if fuel has been spilt on them. Starting Safety •...

  • Page 6: Hazards

    SAFETY & HANDLING Transporting and Storage • Hand carry the unit with the engine stopped and the muffler away from your body. • Allow the engine to cool, empty the fuel tank and secure the unit before storing or transporting in a vehicle. •...

  • Page 7: Feature Definitions

    FEATURES & DEFINITIONS Bent Shaft Trimmer Bumphead Assembly Oil Fill Bottle Shaft Guard (inc 2 screws) Loop Handle Engine Stop Switch Throttle Lever “Release” Throttle Lever Throttle Lever “Lock” Choke Lever Starter Cord Fuel Cap Air Filter Housing Cover Fuel Tank Engine Shroud - Cowling Fuel Pump “Primer”...

  • Page 8: Handle

    ASSEMBLY PROCEDURES Handle Assembly Fitting The Handle 1. Components - 4x Screws, Loop Handle & Clamp. 2. Place Handle (1) over the shaft in the desired location. 3. Insert Clamp (2) from the bottom side of the handle. 4. Insert screws (3) and washers (4) through loop handle and into threads of the clamp. 5.
  • Page 9 ASSEMBLY PROCEDURES Attaching Hedge Trimmer Attachment / Adjusting Angle Fig. 6 Fig. 4 Fig. 5 Fig. 3 Once attachment is located in Pull locating pin (2) Loosen Knob (1) the drive release locating pin (2) and tighten knob (1). Adjust Angle Of Gear Box Fig.
  • Page 10 ASSEMBLYPROCEDURES ASSEMBLY PROCEDURES Trimmer Line Assembly - Bump Head Trimmer Line Assembly - Bump Head upper spool cover housing Fig. 20 Fig. 18 Fig. 19 Upper Spool Spool middle Cover Middle plate spool Housing Plate Fig. 22 Fig. 23 Top of Spool Top of Spool Fig.
  • Page 11 ASSEMBLY PROCEDURES Trimmer Line Assembly - Bump Head (continued) * 2.4mmø nylon line is recommended to provides best performance. The bump head can be fitted with line diameters from 2mm to 3mm. The maximum length of the line that can fit the head varies according to the line diameter. The maximum length capacity using 2.4mmø...
  • Page 12 blade Never fit an alternative cutting head that has not been recommended by the manufacturer. ASSEMBLYPROCEDURES ASSEMBLY PROCEDURES HEAD REMOVAL & REPLACEMENT BENT/CURVED SHAFT CUTTING HEAD Text 1. Replace blade protector. Cutting Head Assembly Cutting Head Assembly 2. Align hole in Mounting Washer & slot in Fig.

  • Page 13: Oil

    OPERATINGINSTRUCTIONS OPERATING INSTRUCTIONS OPERATINGINSTRUCTIONS Before Starting Before Starting Before Starting Check the position & operation of controls to ensure you are comfortable before you start using the machine. Triggers, starter Check the position & operation of controls to ensure you are comfortable before you start using Check the position &...
  • Page 14 OPERATING INSTRUCTIONS Fuel Recommended fuels • Use clean unleaded fuel only. Do not add oil to fuel. • Start the machine at least 3 metre away from the refuelling site to avoid the possible risk of fire. • Do not smoke whilst refuelling or working with the machine. •...
  • Page 15 OPERATING INSTRUCTIONS Starting The Engine 1 - Get Ready... Fig. 29 • Place the trimmer on a hard, level surface. • Press the PRIMER 10 times. • Set STOP switch to the “ON” position (slide it backwards towards the engine). Fig.
  • Page 16 OPERATING INSTRUCTIONS Starting The Engine Fig. 32 Cold Start 1. Set the machine down on a hard, level surface. 2. Press the fuel pump primer 10 times (This is found under the air filter housing - see Fig. 32). 3. Ensure the ‘STOP SWITCH’ is set to the ‘ON’ position (slide back towards the engine) as shown in Fig.
  • Page 17 OPERATING INSTRUCTIONS Starting The Engine The throttle lever - throttle lock holds the engine above adle to assist with starting & may drive the cutting head then the engine is started. To release the throttle lock, simply pressing the throttle lever & the engine will return to running in idle mode.
  • Page 18 MAINTENANCE & CARE Trimmer Body & Hedge Trimmer Attachment Gear Case • The reduction gears are lubricated by multipurpose, lithium-based grease in th gear case. Supply new grease every 20 hours of use or more often depending on job condition. •...
  • Page 19 Maintenance of oil • Check oil level before every use MAINTENANCE & CARE • Replace oil after the first 4 hours of operation • Refill oil when level reaches lower indicator on oil guage • Do not fill beyond upper indicator on oil guage Maintenance - Oil •...
  • Page 20 MAINTENANCE & CARE Maintenance Chart Maintenance - Spark Plug Maintenance Chart Fig. 46 Maintenance - Spark Plug Maintenance Chart Maintenance - Spark Plug Maintenance Chart Maintenance Chart Maintenance - Spark Plug Maintenance Chart TORCH # CMR6A TORCH # CMR6A Spark plug gap = 0.025 inch (0.7 mm). Tighten the spark plug with a torque of 12-15 Nm.

  • Page 21: Air Filter

    Never repair cutting attachments by welding, straightening or custom reworking of parts. This may result in product failure or serious injury. Never attempt maintenance that is not outlined in this manual. All repair work must be carried out by an Authorised Bushranger Power Equipment Dealer. ®...

  • Page 22: Troubleshooting

    ® Contact Bushranger Service Centre ® Clogged fuel line ContactBushranger Service Centre ® Plugged air vent in fuel tank Clean vent/Contact Bushranger ® Service Centre Insufficient power Clogged air lterClean Valve lash out of spec Contact Bushranger Service Centre ®...

  • Page 23: Troubleshooting

    Line inside bump head Replace the residual line with when head is bumped is nearly nished. the new line ("Fitting trimmer line - bump head" on page 16) If running difficulties continue, please contact your closest Authorised Bushranger Power ® Equipment Dealer.
  • Page 24 NOTES...
  • Page 25 Copyright © Roy Gripske and Sons Pty. Ltd. 2018. All rights reserved. 939. Images are for illustrative purposes only. Bushranger™ is a trademark of Roy Gripske & Sons Pty Ltd. PLP shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material.
