Hedge Trimmer
AHT261
Owner's/ Operator's Manual
Completely read and understand this manual before using this product.

Advertisement

Table of Contents
loading

Related Manuals for Bushranger AHT261

Summary of Contents for Bushranger AHT261

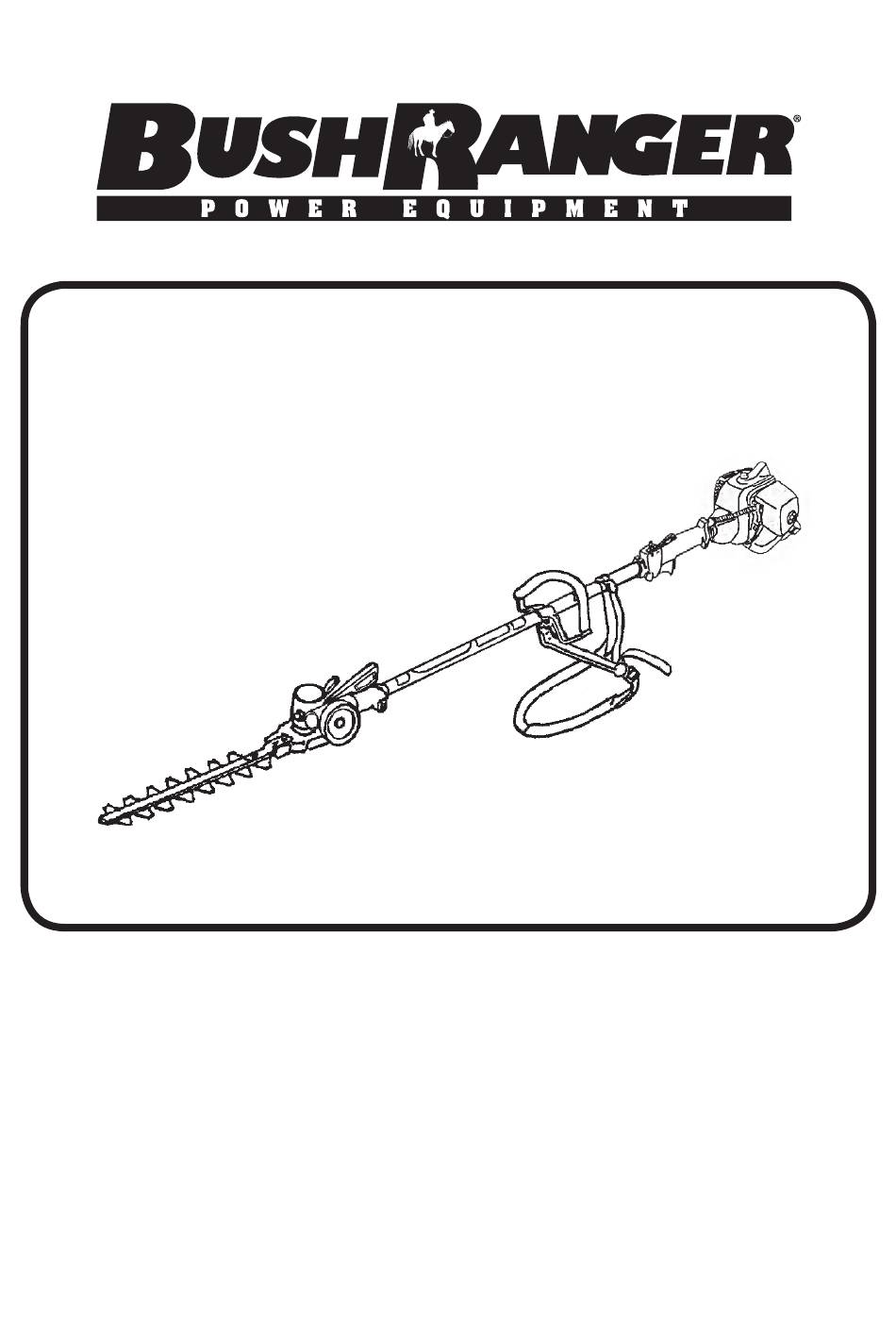

  • Page 1 Hedge Trimmer AHT261 Owner’s/ Operator’s Manual Completely read and understand this manual before using this product.

  • Page 2: Table Of Contents

    Hedge Trimmer. It is essential that any operator of this Hedge Trimmer product reads and understands the contents of this manual before using the Hedge Trimmer. Failure to comply with the instructions in this man- ual may result in serious injury or death. For additional assistance, contact any local BUSHRANGER dealer. Important Notice The benefits to the consumer given by this warranty are in addition to other rights and remedies of the con- sumer under a law in relation to the goods or services to which this warranty relates.

  • Page 3: Safety Instructions

    Safety Decal ON SHAFT（Part No. 221501） ON ANGLE DRIVE ON SHAFT （Part No. 407349） （Part No. 217879） ON ENGINE ON SHAFT （Part No. 279811） （Part No. 233477） Safety Decals are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost.

  • Page 4: Fuel Safety

    Hedge Trimmer. 6. Never use a blades or replacement parts that are not approved by BUSHRANGER. 7. Maintain the Hedge Trimmer according to the recommended maintenance intervals and procedures in the Maintenance section beginning on page 10. 8. If running problems or excessive vibration occur, stop immediately and inspect the unit for the cause.

  • Page 5: Symbol Explanation

    Symbol explanation ・ Wear head protection, where there is a risk Indicates Warning, Danger, Caution. of falling objects. ・ Wear eye protection, while operating the Hedge Trimmer. Read and understand this Owner’s/ ・ Wear ear protection, while operating the Operator’s Manual. Hedge Trimmer.

  • Page 6: Before Operation

    5. Adjust the cable adjuster sleeve so the stop on the carburetor throttle cam just contacts the throttle stop and the cable position keep 1-2mm play between cable lug and slotted fittings when the throttle trigger is fully depressed. 6. When the throttle cable is adjusted correctly, tighten the lock-nut. 7.
  • Page 7 DANGER POTENTIAL HAZARD ・ In certain conditions petrol is extremely flammable and highly explosive. WHAT CAN HAPPEN ・ A fire or explosion from petrol can burn you, others and cause property damage. HOW TO AVOID THE HAZARD ・ Use a funnel and fill the fuel tank outdoors, in an open area, when the engine is cold. Wipe up any petrol that spills.

  • Page 8: Starting And Stopping

    Mixing Instructions IMPORTANT: Never mix petrol and oil directly in the Hedge trimmer fuel tank. 1. Always mix fuel and oil in a clean container approved for petrol. 2. Mark the container to identify it as fuel mix for the Hedge trimmer. 3.

  • Page 9: Idle Speed Adjustment

    4. If the engine fails to start after three to four pulls, follow the instructions in the Cold Starting Procedure section above. If the engine fails to start after you follow the above procedures, contact an authorized BUSHRANGER dealer. Fast-idle...

  • Page 10: Operating Hedge Trimmer

    Operating Hedge Trimmer CAUTION Read the Safety instructions beginning on page 3 concerning proper use of the Hedge Trimmer. Operating Position Before using the Hedge Trimmer, check the following: 1. The unit should be on operator’s right side. 2. The operator’s right hand should be holding the shaft grip, with his or her fingers on the throttle trigger. The right arm should be slightly bent.

  • Page 11: Adjusting The Angle Of The Blades

    Adjusting the angle of the blades CAUTION ・ Do not touch the sharpened edges of the cutting blades. The cutting blades are extremely sharp and dangerous at all times. Always wear gloves to help protect your hands and fingers from injury.

  • Page 12: Fuel Filter

    Fuel Filter Fuel Tank Cap Fuel Tank Maintenance Interval The fuel filter should be replaced after every 100 hours of operation. Fuel Filter Replacement The fuel filter is attached to the end of the fuel pick-up hose inside the tank. To replace the fuel filter: Cap Holder 1.

  • Page 13: Spark Plug

    Spark Plug Maintenance Interval ・ The spark plug should be removed from the engine and checked after each 25 hours of operation. ・ Replace the spark plug after every 100 hours of operation. 0,6-0,7mm Spark Plug Maintenance 1. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
  • Page 14 Adjusting Cutting Blades CAUTION ・ Do not touch the sharpened edges of the cutting blades. The cutting blades are extremely sharp and dangerous at all times. Maintenance Interval Before operating the Hedge Trimmer with Hedge Trimmer Attachment it is necessary to check the adjust- ment of the cutting blades.

  • Page 15: General Cleaning And Tightening

    General Cleaning and Tightening The BUSHRANGER Hedge Trimmer will provide maximum performance for many, many hours if it is main- tained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine. Pitch and gum deposits should be removed from the cutting blades daily.

  • Page 16: Specifications

    Specifications Model AHT261 Engine Displacement, cm 25,4 Idling speed, min 2700 - 3300 Ignition System Solid State Spark Plug NGK BPMR8Y (electrode gap : 0,6 - 0,7 mm) Carburetor Diaphragm Type Fuel Tank Capacity, litres Fuel Mixture Two-stroke Oil Mix 25 ～ 50:1 Ratio...
