Summary of Contents for Bushranger HT2601

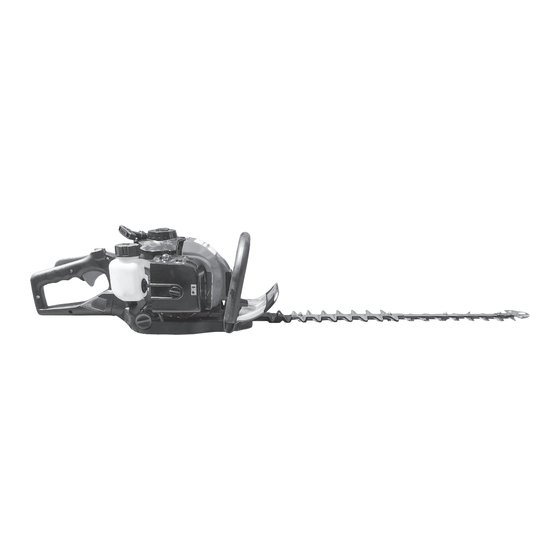

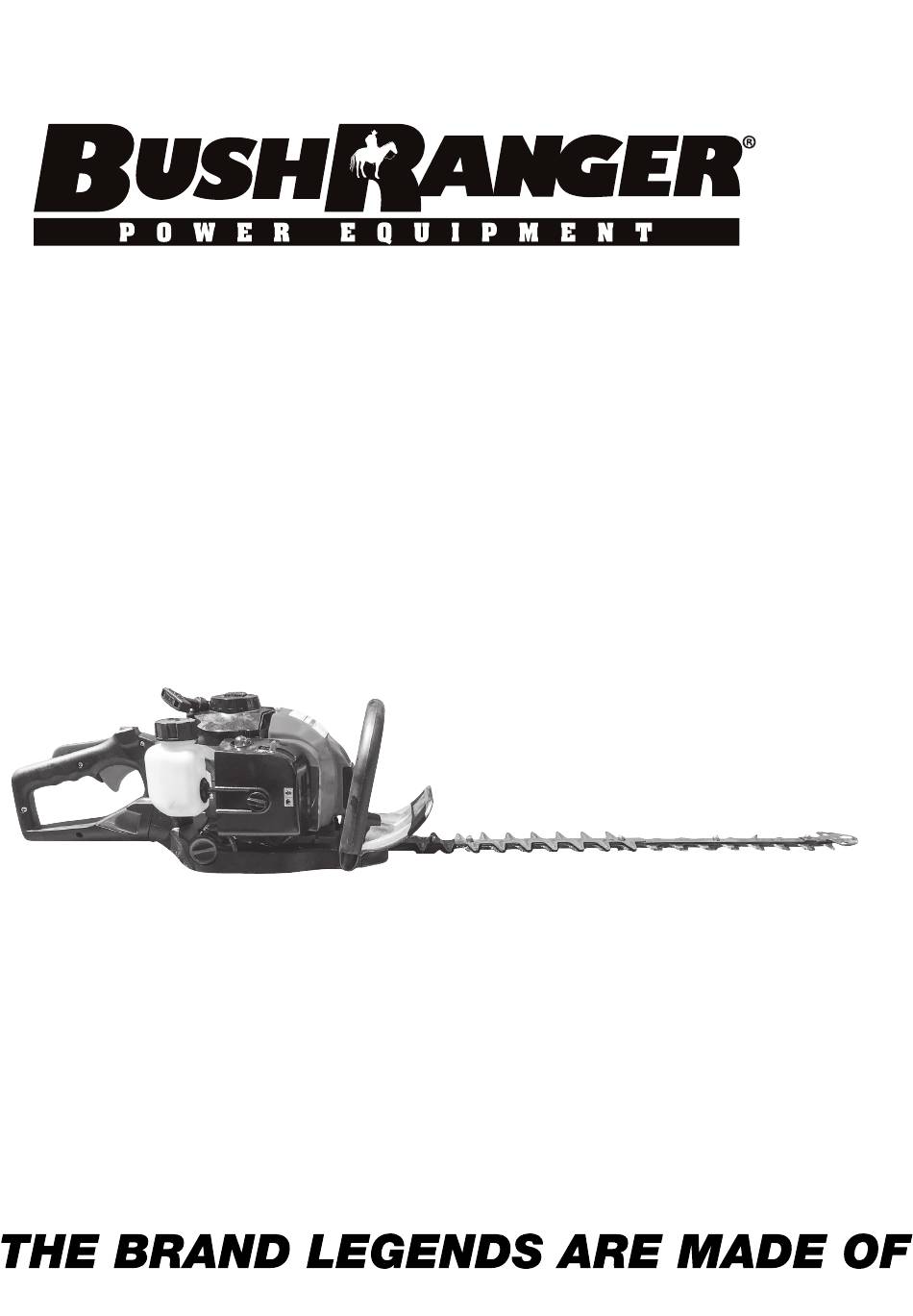

- Page 1 OPERATOR’S MANUAL HEDGE TRIMMER HT2601...
- Page 2 IMPORTANT NOTES Thank you for purchasing your Bushranger Hedge Trimmer. ® This manual is about the proper method for operation, easy inspection and mending. Before operation, please read this book carefully and understand fully, so that this manual can be used best.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety & Handling Safety Instructions 04 - 06 Hazards Personal Safety Equipment Features & Definitions Feature Definitions Operating Instructions Starting / Stopping Instructions 08 - 09 Use of Handle Operation Maintenance & Care Air Filter Spark Plug Blade Muffler Storage... -
Page 4: Safety Instructions
SAFETY & HANDLING Safety Instructions Do not operate the Hedge Trimmer before reading all Instructions & reading all Safety & Handling sections. Operator Safety • Wear the necessary safety equipment, as listed on page (6), in the Personal Safety Equipment Section. •... - Page 5 SAFETY & HANDLING Fuel Safety Continued • Move at least 3 metres away from the fuelling site before starting the engine. • Wipe all traces of fuel on the unit before starting the engine. • Change your clothes before starting the unit if fuel has been spilt on them. Starting Safety •...
-
Page 6: Hazards
SAFETY & HANDLING Transporting and Storage • Hand carry the unit with the engine stopped and the muffler away from your body. • Allow the engine to cool, empty the fuel tank and secure the unit before storing or transporting in a vehicle. •... -
Page 7: Feature Definitions
FEATURES & DEFINITIONS Hedge Trimmer Stop Switch Gear Box (underneath) Handle Rotation Lever Fuel Tank Air Cleaner Rear Handle Guard Blade Starter Throttle Interlock Throttle Level Handle / Front OPERATING INSTRUCTIONS Before Starting Check the position & operation of controls to ensure you are comfortable before you start using the machine. -
Page 8: Starting / Stopping Instructions
OPERATING INSTRUCTIONS Starting The Engine Fig. 1 Cold Start 1. Set the machine down on a hard, level surface. 2. Press the fuel pump primer 10 times (This is found under the air filter housing - see Fig. 1). 3. Ensure the ‘STOP SWITCH’ is set to the ‘ON’ position (slide towards the engine) as shown in Fig. -
Page 9: Use Of Handle
OPERATING INSTRUCTIONS Starting The Engine The throttle lever - throttle lock holds the engine above adle to assist with starting & may drive the cutting blades then the engine is started. To release the throttle lock, simply let go of the throttle lever and the engine will return to running in idle mode. -
Page 10: Air Filter
MAINTENANCE & CARE Maintenance - Air Filter Maintenance of the Air Filter Always switch off the machine and pull out of spark plug H.T. lead before carrying out any maintenance work. NOTE: Dirty air filters reduce the engine output by supply too little air to the carburettor. Regular checks of the air filter is essential. -
Page 11: Blade
MAINTENANCE & CARE Blade • Every 1-2 hours, add grease to the blade. Blade Sharpening 1. Start the engine, allow the blade to run at low speed, stagger the up and down blade for 2mm, and stop the engine. Fig. 13 2. -
Page 12: Maintenance & Care
Never repair cutting attachments by welding, straightening or custom reworking of parts. This Clean or replace • • may result in product failure or serious injury. Never attempt maintenance that is not outlined in this manual. All repair work must be carried out by an Authorised Bushranger Power Equipment Dealer. ®... -
Page 13: Troubleshooting
® Contact Bushranger Service Centre ® Clogged fuel line ContactBushranger Service Centre ® Plugged air vent in fuel tank Clean vent/Contact Bushranger ® Service Centre Insufficient power Clogged air lterClean Valve lash out of spec Contact Bushranger Service Centre ®... -
Page 14: Troubleshooting
Oil build up in air lter Clean air lter Bump head: Inappropriate winding Open bump head and rewind If running difficulties continue, please contact your closest Authorised Bushranger Power ® of line. the line ("Fitting trimmer line - Equipment Dealer. - Page 15 NOTES...
- Page 16 Copyright © Roy Gripske and Sons Pty. Ltd. 2018. All rights reserved. 939. Images are for illustrative purposes only. Bushranger™ is a trademark of Roy Gripske & Sons Pty Ltd. PLP shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material.
