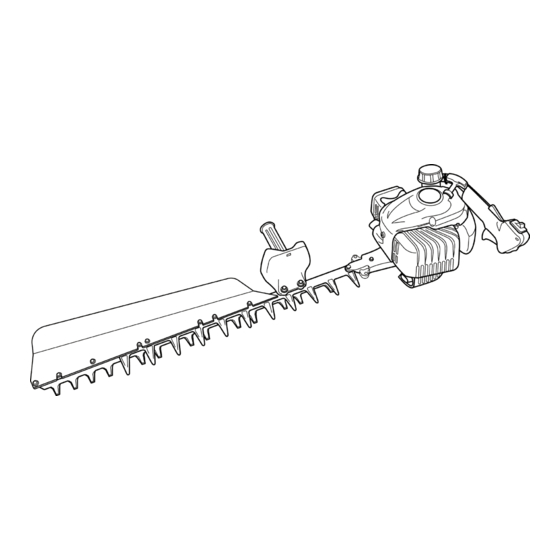

- Page 1 Hedge Trimmer HTS261 Owner’s/ Operator’s Manual Completely read and understand this manual before using this product.
-
Page 2: Table Of Contents
Important safety instructions will be identified by the following safety symbol: Failure to comply with the instructions in this manual may result in serious injury or death. For additional assistance, contact any local authorized BUSHRANGER dealer. Important Notice The benefits to the consumer given by this warranty are in addition to other rights and remedies of the consumer under a law in relation to the goods or services to which this warranty relates. -
Page 3: Specification
SPECIFICATION Model HTS261 Dimensions L×W×H 1075 × 270 × 200 mm Dry Weight (without grease) 5.1 kg Total Weight (With fuel and cover) 5.6 kg Blade Length 750mm Engine Model HE232 Engine Displacement 22.5cm Fuel Tank Capacity 0.4L Carburetor Walbro Diaphragm Type... -
Page 4: Marking
MARKING ① ④ ⑦ ② ⑥ ③ ③ ④ ⑧ ⑤ ⑥ ⑧ ⑤ ① MODEL NAME ② SERIAL No. (STAMPED) ③ Approved EC emission ④ See SYMBOL EXPLANATION ⑤ GUARANTEED SOUND POWER LEVEL ⑥ RCM ⑦ Lubricate 15H ⑧ See SYMBOL EXPLANATION SYMBOL EXPLANATION Read and understand this Owner’s/ Operator’s Manual before using this product. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS The warning system in This manual identifies potential hazards and has special safety messages that help you and others avoid personal injury, even death. DANGER WARNING CAUTION signal words to identify the level of hazard. DANGER : signals an extreme hazard that will cause serious injury or death if the recommended precautions are not followed. - Page 6 Inspect the Hedge Trimmer cutting blades and guide. Replace any parts that are cracked, chipped, damaged or excessively worn cutting device before using the Power Hedge Trimmer. Never use replacement parts that are not approved by your BUSHRANGER service dealer. Maintain the BUSHRANGER Hedge Trimmer in accordance with the recommended maintenance intervals and procedures in the maintenance section, pages 12 to 14.
- Page 7 Keep a firm footing and balance. Do not over-reach. Do not operate the Hedge Trimmer while standing on a ladder or similar temporary support. Use the right tool for the job. Do not use the BUSHRANGER Hedge Trimmer for any job that is not recommended by the manufacturer.
-
Page 8: Before Operation
Always use two hands to operate the Hedge Trimmer. Always be aware of your surroundings and stay alert for possible hazards that you may not hear due to the noise of the machine. Know how to stop the machine quickly in an emergency. (See to stop the engine in STARTING AND STOPPING PROCEDURE SECTION.) Beware of overhead power lines. - Page 9 FUEL: MIXING PETROL AND OIL IMPORTANT: The engine used on this BUSHRANGER Hedge Trimmer is of a two-stroke design. The internal moving parts of the engine, i.e., crankshaft bearings, piston pin bearings and piston to cylinder wall contact surfaces, require oil mixed with the petrol for lubrication. Failure to add oil to the petrol or failure to mix oil with the petrol at the appropriate ratio will cause major engine damage which will void your warranty.
-
Page 10: Starting And Stopping Procedure
Keep all bystanders, children and animals away from the working area. STARTING THE ENGINE (for the carburetor with primer bulb) The carburetors on BUSHRANGER engines contain a choke system and are designed to start at IDLE speed. - Page 11 Move the choke lever to the closed position “ ”. When the engine is warm, move the choke lever to the open position “ ”. CLOSE OPEN CHOKE LEVER Set the engine stop switch to the “ON ( | )” position. The throttle STOP ( O ) ←→...
-
