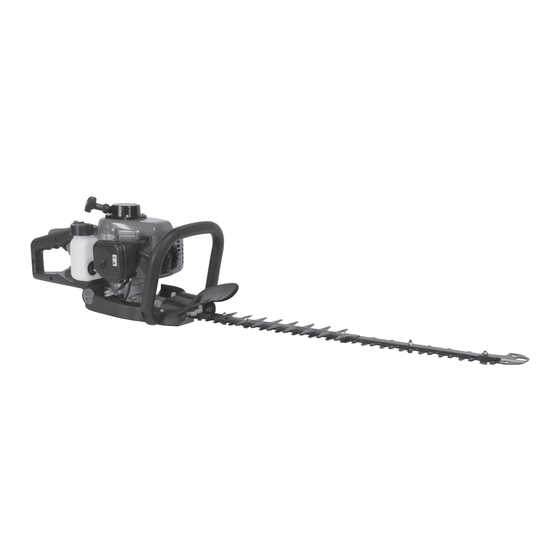

HEDGE TRIMMER

HT2600
1

Advertisement

Table of Contents
loading

Related Manuals for Bushranger HT2600

Summary of Contents for Bushranger HT2600

  • Page 1: Hedge Trimmer

    OPERATOR’S MANUAL HEDGE TRIMMER HT2600...

  • Page 2: Table Of Contents

    SPARE PARTS - HEDGE TRIMMER ....................INTRODUCTION Thank you for buying the Bushranger HT2600 Hedge Trimmer. This manual is mainly about the ™ proper method for operation, easy inspect and mending. Before operation, please read this book carefully and understand fully, so that this manual can be used best. Please read the manual carefully before using the machine, and save it for checking at any moment.

  • Page 3: Attention Statements

    These procedures are general guidelines only, and are not intended to replace any safely rules/laws that may be in force in your area. If you have any question regarding your HT2600 hedge trimmer, or if you do not understand something in this manual, your local Bushranger dealer will be glad to assist you.

  • Page 4: Right Use Method

    RIGHT USE METHOD Before using this product, please make sure minutes. Also try to keep the total amount that you have first read this manual, use it in the of work performed in a single day under two proper method. In order to work best you should hours or less.
  • Page 5 Starting the Engine • Smoking while operating the hedge-trimmer or • While starting the engine make sure the area refilling its fuel tank is extremely dangerous. around you is safe to do so. • When refilling the tank always turn off the •...

  • Page 6: Technical Specification

    TECHNICAL SPECIFICATION MODEL HT2600 Net Weight (kg) 5.4 kg Overall Dimensions 1070 x 240 x 240 Type Double Blade Number of Teeth 33 in total SHEARS Distance (mm) 35 mm Trimmed Width (mm) Rotation Mode Centrifugal type rubbing clutch Reduction ratio 5.11...

  • Page 7: Main Structure

    MAIN STRUCTURE Starter Ignition Switch Forward Handle Safety Lever Safety Guard Cutting Bar Nose Protector Throttle Trigger Fuel Tank Handle Lock Air Cleaner OPERATION OF ENGINE Fuel • Any water in the fuel can lead to carburettor and DANGER the engine corrosion. Please be cautious with the •...
  • Page 8 Adding Fuel IMPORTANT DANGER • Ensure blade cover is removed before • Choose a wide outside place to add fuel, do starting. not smoke whilst handling fuel and ensure substances are kept away from any sparks. Starting the Engine 1. Move ignition switch to •...

  • Page 9: Inspection

    • If the blade is not cutting properly, the blade may be worn, or the gap between the blades is too big for the machines cutting power. Please contact your local Bushranger™ dealer Use of Rotating Handle While cutting branches, ease of use is achieved by rotating the handle to the most comfortable position for the type of work being carried out.

  • Page 10: Inspection

    Blade Every 1 - 2 hours when the machine is in use, grease should be added to the blade. For setting or sharpening please contact your Bushranger™ dealer. Muffler After the machine has been used for 50 hours, please remove the muffler, clear the inner carbon...

  • Page 11: Disposal Of Long Storage

    Refer below to the list of potential problems you may encounter, along with suggested remedies. For servicing and all warranty work, contact your local authorised Bushranger™ dealer. Problem Likely Cause Suggested Remedy •...

  • Page 12: Warranty

    WARRANTY 1. Australian Consumer Law (REG. 90): The benefits to the consumer given by this warranty are in addition to other rights and remedies of the consumer under a law in relation to the good or services to which this warranty relates. Our goods come with guarantees that cannot be excluded under the Australia Consumer Law.

  • Page 13: Ipl - Hedge Trimmer Engine

    IPL - HEDGE TRIMMER ENGINE...

  • Page 14: Spare Parts - Hedge Trimmer Engine

    SPARE PARTS - HEDGE TRIMMER ENGINE Qty Ref Qty Ref Part No. Description Part No. Description No. No. 1-31 03070010001 FLYWHEEL KEY 1-1 02050030017 IGNITION COIL 1-32 02020020003 PISTON RING 1-2 02050030032 FLYWHEEL 1-33 02010020005 PISTON 1-3 02050020289 CARBIE 1-34 03090020018 NEEDLE BEARING 1-4 03130010006 SPARK PLUG 1-35 02020010004 GUDGEON PIN...

  • Page 15: Ipl - Hedge Trimmer

    IPL - HEDGE TRIMMER...

  • Page 16: Spare Parts - Hedge Trimmer

    SPARE PARTS - HEDGE TRIMMER Ref Ref Part No. Description Qty Part No. Description Qty No. No. 2-29 70030030348 HANDLE AND GUARD 2-1 02020070064 SAFEGUARD METAL 2-30 03020020033 SCREW 2-2 02020070066 SETTLE PLATE 2-31 03010040010 SCREW 2-3 02020070063 BLADE SET CONTROL HANDLE RIGHT 2-32 70030070251 2-4 02020160144 SPACER SIDE 2-33 70030160014 SWIVEL CONTROL LEVER...
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 Copyright © Roy Gripske and Sons Pty. Ltd. 2016. All rights reserved. 222. Images are for illustrative purposes only. Bushranger™ is a trademark of Roy Gripske & Sons Pty Ltd. PLP shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material.
