RIGGING CAM OPERATIONS
The Advance Tech HX Pulleys are designed for
Parking Cam – To park the cam, rotate the
use on static and low stretch ropes from 7.0 mm
cam lever clockwise until it clicks into park.
to 12.5 mm. Ideal for use in situation's which
Alternatively when optional cord is attached to
call for rapid deployment of a mechanical
cam lever, simply pull cord straight down until
Pulleys system requiring progress capture.
cam clicks into park.
The integrated cam is retracted to the park
Note: Pushing the cam lever against the Pulleys
position when you open the side plates and
side plate may restrict movement of the cam to
from there it is easy to rig a simple 4:1 system.
and from the parked position.
1. Start by attaching the rope end to
the becket and then route rope down
around a sheave on the Advance Tech
Mate Pulley.
2. Then bring rope back up to the Advance
Tech HX, place behind the guide pin
on the non-cam side and then over
sheave.
3. Repeat routing rope through the
Advance Tech Mate and then finally
bring rope up behind the guide pin
on the cammed side of Pulleys before
going over the sheave to form the rope
tail.
Engaging Cam – To engage the cam, rotate the
4. Closing the side plates secures the
ropes so that rigging is less prone to cam lever counterclockwise. The cam is spring
tangling, especially when your system loaded so the cam is engaged at anytime it is
is thrown in a gear bag. not parked nor held in place by cord. If the
Pulleys is out of reach you may use the tail
5. Simply engage the cam and you are
of rope to flip cam lever releasing if from the
ready to haul.
parked position. When the optional cord it
An optional pull cord up to 3 mm diameter may
attached you can engage the cam by pulling the
be attached to the cam lever to provide easy
cord away from the Pulleys body.
access if the Pulleys is out of reach.
To avoid damaging the Pulleys side plates and CAUTION: NEVER release control of rope tail
cam, assure the side plates are closed prior to until you are certain that cam has engaged and
storing. is holding the load.
CAUTION: Cam operates in one direction only.
Check Cam for proper engagement before use.

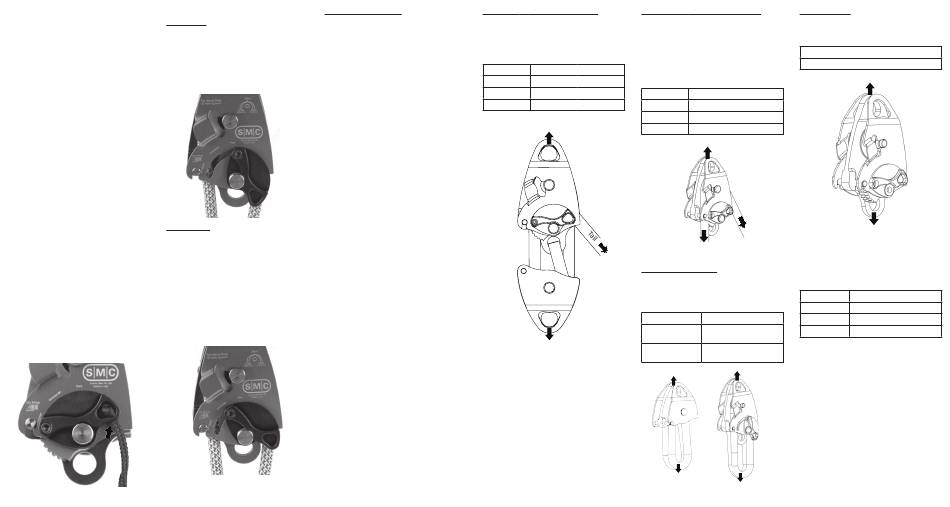

Engaged
Hole for optional 3mm cord
Releasing A Loaded Cam – While maintaining
control of the load, slightly raise the load by
pulling on the tail of rope while at the same
time releasing the cam. The cam can then be
rotated into the parked position, held open by
hand or by pulling the cord while lowering the
load. Use caution so that fingers or gear are not
drawn into Pulleys mechanism.
CAUTION: Always maintain control of the rope
tail until you are certain that the cam has
engaged and is holding the load. Failure to
maintain control of the load may shock load the
system which could result in serious injury or
death.
CONFIGURATION RATINGS
The Advance Tech Pulleys are designed primarily
for rigging small lightweight mechanical
advantage systems typical in rescue situations.
Park
Cammed Pulleys, like ascenders and other
similar gear, require aggressively toothed cams
to quickly and positively engage.
these same aggressive teeth may be harmful
to ropes if the cam is employed in high load
situations. For situations when high loads
are present the Advance Tech HX becomes
a very effective prussic minding Pulleys by
disengaging the cam and using prussic's.
Simply attach prussic's in the normal manner
and move cam to the parked position assuring
that the teeth are out of the rope path. The
stainless guide pins allow for better prussic
minding than all other prussic minding Pulleys.
CAUTION: Stainless guide pins should not be
used as attachment points.
It can be difficult to judge when loads will
exceed the designed capacity of the cam and
the use of prussic is required. The following
strength data has been provided for guidance
in making rigging decisions.
Load Rope Tail
Cam Rating 4:1 Haul System Strength - Typical
4:1 system rigged using the Advance Tech HX
with cam engaged on the 4th leg and a standard
double Pulleys. The system utilized the becket
on the Advance Tech HX Pulleys. System was
pulled end to end using carabiner holes.
Rope  Breaking Strength
7 mm 2,000lbf. (8.9kN)
9 mm 2,500 lbf. (11.1kN)
12.5mm 4,500 lbf. (20.0 kN)
Force
Advance Tech HX
However
Advance Tech Mate
Force
Cam Rating 1:1 Haul System Strength – This Becket Strength – The Advance Tech HX is
configuration is not recommended due to the loaded between the carabiner and becket holes
relatively low strength results, but are included by means of ½" diameter pins. Strengths can
in these instructions to provide the necessary be utilized for system rigging guidance.
guidane when developing rigging methods.
Single rope strand is rigged through the
engaged cam and over one sheave. The force
is applied between the end of the rope and the
Pulleys carabiner hole.
Rope  Breaking Strength
7 mm 500lbf. (2.2kN)
9 mm 700 lbf. (3.1kN)
12.5mm 1,000 lbf. (4.4 kN)
Force
Tail
Force
All data was collected using new nylon core/
Double Pulleys Strength – The Advance Tech
nylon sheath low stretch kernmantel ropes as
are each rigged with a loop of rope over both
described below.
wheels and then pulled between the rope loop
and carabiner hole. The cam was parked and
Rope 
not utilized for this test.
7 mm
Rope  Breaking Strength
9 mm
7 mm - 12.5 mm Advance Tech HX
12.5mm
7,644lbf. (34.0 kN)
7 mm - 12.5 mm Advance Tech Mate Testing was done in a dry room temperature
7,644lbf. (34.0 kN) environment.
differing rope condition, rope construction,
Force
Force
rope materials, and environmental conditions.
If you do not completely understand any of the
outlined user instruction provided on this sheet or
if you have any questions please contact SMC at
800.426.6251 or info@smcgear.net
Force
Force
Breaking Strength
4,047lbf. (18.0 kN)
Force
Force
Breaking Strength
PMI TUFF CORD
PMI CLASSIC EZ
PMI CLASSIC
Performance will vary with
