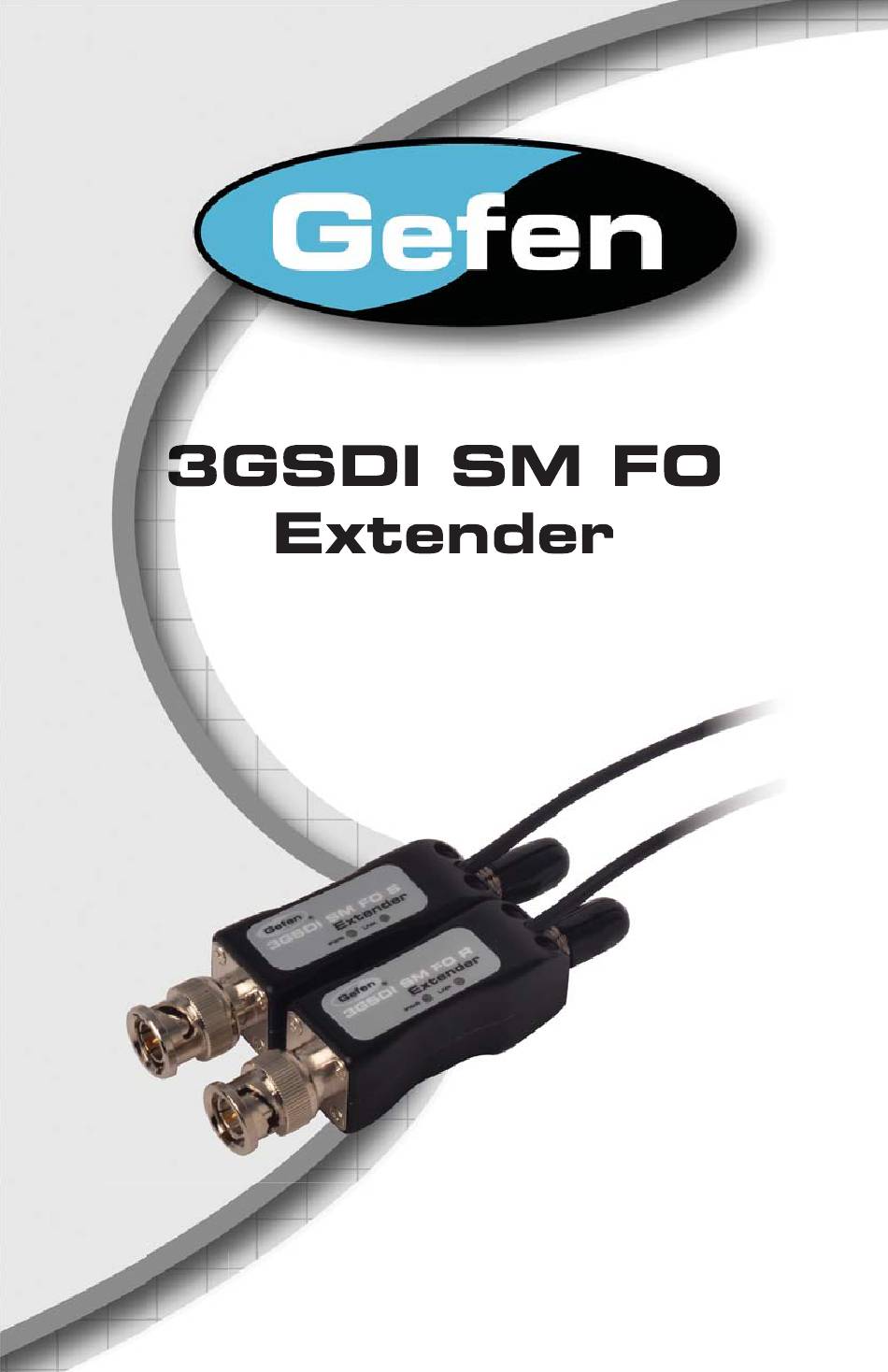

- Page 1 ® EXT-3GSDI-FOSM User Manual ww.gefen.com...
- Page 3 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. 3GSDI SM FO Extender is a trademark of Gefen LLC © 2012 Gefen, LLC. All rights reserved.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Module Layout Module Descriptions Connecting the 3GSDI SM FO Extender Wiring Diagram Troubleshooting Specifi cations Warranty... -
Page 5: Introduction
Congratulations on your purchase of the 3GSDI SM FO Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 3GSDI SM FO EXTENDER • The use of an intermediate cable or adapter is not recommended. Additional coupling devices may deteriorate the signal transmission. -
Page 7: Features
FEATURES Features • Supports SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SDl) specifi cations • Extends 3G-SDI up to 1.25 miles (2 kilometers) over one single-mode ST-terminated fi ber optic cable • Locking power connectors • Robust metal die-cast enclosure for reliable operation in harsh environment •... -
Page 8: Module Layout
MODULE LAYOUT... -
Page 9: Module Descriptions
MODULE DESCRIPTIONS 3G-SDI BNC Input (Sender) Connects the Sender module to the SDI source. Power Indicator (Sender) This LED will glow bright red when the included power supply is connected to the Sender module. Link Indicator (Sender) This LED will glow bright blue when connected to an active SDI source. ST-Fiber Connector (Sender) Connect a single-strand ST-fi... -
Page 10: Connecting The 3Gsdi Sm Fo Extender
CONNECTING THE 3GSDI SM FO EXTENDER How to Connect the 3GSDI SM FO Extender Connect the Sender of the Gefen 3GSDI SM FO Extender to the 3G-SDI source equipment via the BNC connector. Remove the protective cover from the fi ber connector of the Sender module and connect one end of the fi... -
Page 11: Troubleshooting
TROUBLESHOOTING No picture / display shows a blank screen • Ensure that all jacks that are used by the 5V DC power supplies are fi rmly connected. • Ensure that the SDI connector is fi rmly plugged in to the SDI source and SDI display. -
Page 12: Specifi Cations
SPECIFICATIONS Data Rate..................3 Gbps (max.) Range..............Up to 1.25 miles (2 kilometers) Input Impedance....................75 Ω Signal Level................800mVp-p +/- 50mV SDI Connector..................BNC, male Optical Connector....................ST Number of Fibers....................1 Propagation Delay (Sender)................1.5 ns Propagation Delay (Receiver)................ 40 ns Power Supply (Sender / Receiver)........... -
Page 13: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 16 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
