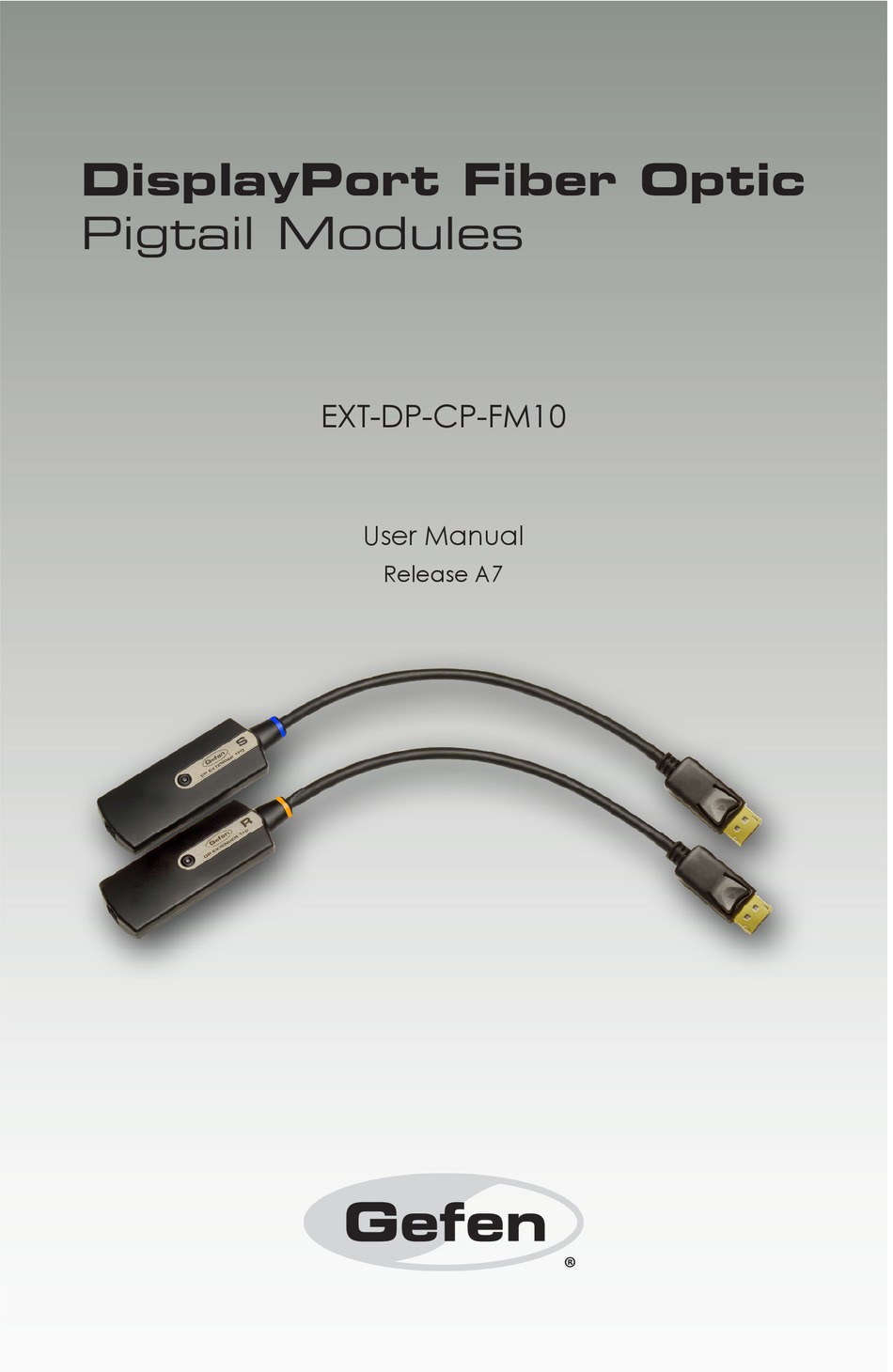

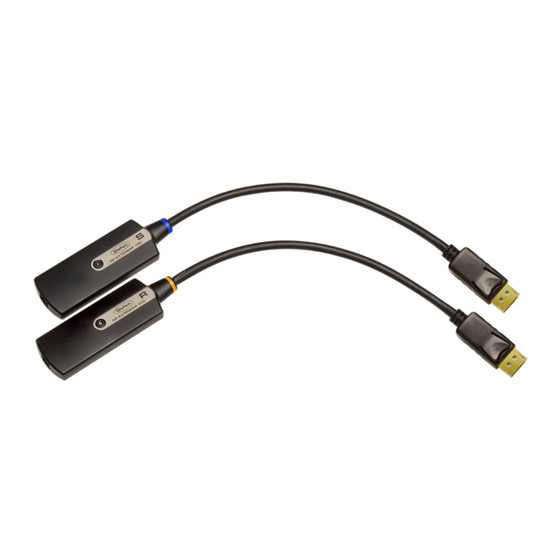

- Page 1 DisplayPort Fiber Optic 3GSDI Audio Pigtail Modules Embedder EXT-DP-CP-FM10 User Manual Release A7...
-
Page 2: Important Safety Instructions
DisplayPort Fiber Optic Pigtail Modules Important Safety Instructions GENERAL SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 3: Warranty Information
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 4 DisplayPort Fiber Optic Pigtail Modules is a trademark of Gefen, LLC. Important Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. © 2013 Gefen, LLC. All Rights Reserved.
- Page 5 DisplayPort Fiber Optic Pigtail Modules Operating Notes • Both the Sender and Receiver pigtail modules have power receptacles and must be connected to the included power supplies for proper operation. • The maximum extension distances are listed based on the type of fiber optic cable that is being used: ►...
-
Page 6: Packing List
The DisplayPort Fiber Optic Pigtail Modules ships with the items listed below. If any of these items are not present in your box when you first open it, immediately contact your dealer or Gefen. • 1 x DP Extender 1FO - Sender Pigtail module •... -
Page 8: Table Of Contents
3GSDI Audio Embedder DisplayPort Fiber Optic Pigtail Modules Table of Contents Getting Started Cable Layout ......................2 Sender Module ....................2 Receiver Module ................... 3 Installation ......................4 Connecting the DisplayPort Fiber Optic Pigtail Modules ....... 4 Sample Wiring Diagram ................4 Power Indicators ................... -
Page 11: Getting Started
DisplayPort Fiber Optic Pigtail Modules 01 Getting Started Cable Layout ......................2 Sender Module ....................2 Receiver Module ................... 3 Installation ......................4 Connecting the DisplayPort Fiber Optic Pigtail Modules ....... 4 Sample Wiring Diagram ................4 Power Indicators ................... 5... -
Page 12: Cable Layout
Getting Started Cable Layout Sender Module Name Description Fiber optic connector Connect an SC-terminated fiber optic cable from this connector to the fiber optic connector on the Receiver pigtail module. Power indicator This LED will glow bright blue when one of the included 5V DC power supplies is connected to the power receptacle on the Sender module. -
Page 13: Panel Layout
Getting Started Panel Layout Receiver Module Name Description Fiber optic connector Connect an SC-terminated fiber optic cable from this connector to the fiber optic connector on the Sender pigtail module. Power indicator This LED will glow bright blue when one of the included 5V DC power supplies is connected to the power receptacle on the Receiver module. -
Page 14: Installation
Sender and Receiver pigtail module. Refer to the Operating Notes for information on fiber optic cable-types and distances. Connect the included 5V DC power supplies to both the Sender and Receiver modules. Sample Wiring Diagram DISPLAYPORT FIBER OPTIC CABLE Computer Sender Receiver DisplayPort Display EXT-DP-CP-FM10 page | 4... -
Page 15: Power Indicators
Getting Started Installation Power Indicators The power indicators on both the Sender and Receiver modules of the DisplayPort Fiber Optic Pigtail Modules provide information about the current power state. • If the power indicator on both the Sender and Receiver module glows bright blue, then both the Sender and Receiver module are powered. -
Page 17: Appendix
DisplayPort Fiber Optic Pigtail Modules 02 Appendix Specifications ......................8... -
Page 18: Specifications
Appendix Specifications Supported Formats Resolution (max.) • 2560 x 1600 Electrical Video bandwidth • 3.5 Gb/s (per channel) Power indicators (Sender / Receiver) • 1 x LED, blue Connectors Video Input (Sender) • 1 x DisplayPort 20-pin, male Video Output (Receiver) •... - Page 20 Stretch it. Switch it. Split it. Gefen’s got it. ® 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
