Gefen EXT-DIGAUD-141 User Manual
Digital audio extender
Hide thumbs
Also See for EXT-DIGAUD-141:
- User manual (12 pages) ,
- User manual (12 pages) ,
- User manual (10 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Gefen EXT-DIGAUD-141
Summary of Contents for Gefen EXT-DIGAUD-141
- Page 1 *Preferred Digital Audio Extender EXT-DIGAUD-141 User Manual Release A5...
- Page 2 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this unit near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 3 Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
- Page 4 Technical Support (818) 772-9100 (800) 545-6900 8:00 AM to 5:00 PM Monday - Friday, Pacific Time (818) 772-9120 Email support@gefen.com http://www.gefen.com Mailing Address Gefen, LLC c/o Customer Service 20600 Nordhoff St. Chatsworth, CA 91311 Product Registration Register your product here: http://www.gefen.com/kvm/Registry/Registration.jsp...
- Page 5 Digital Audio Extender is a trademark of Gefen, LLC. © 2015 Gefen, LLC. All Rights Reserved. All trademarks are the property of their respective owners. Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice.
- Page 6 Packing List The Digital Audio Extender ships with the items listed below. If any of these items are not present in the box when you first open it, immediately contact your dealer or Gefen. • 1 x Digital Audio Extender (Sender unit) •...
-
Page 8: Table Of Contents
Table of Contents Getting Started Introduction......................2 Sender unit ....................2 Receiver unit ....................4 Installation ......................6 Connection Instructions ................. 6 Sample Wiring Diagram ................7 Appendix Specifications ...................... 10 viii... -
Page 11: Getting Started
Digital Audio Extender Getting Started Introduction......................2 Sender unit ....................2 Receiver unit ....................4 Installation ......................6 Connection Instructions ................. 6 Sample Wiring Diagram ................7... -
Page 12: Introduction

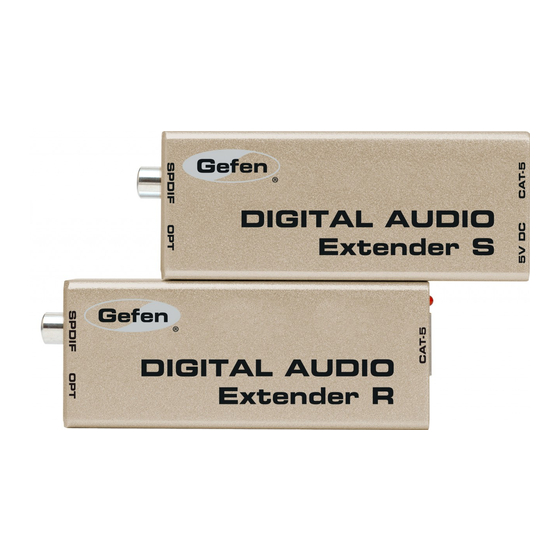

Introduction Page Title Sender unit Digital Audio Extender S page | 2... - Page 13 Introduction Page Title Name Description SPDIF Connect an RCA-type cable from the digital output of the source to this port. If a digital audio source is connected to both the SPDIF and OPT ports, then this port has priority and will supply the audio to the Receiver unit.
-
Page 14: Receiver Unit
Introduction Receiver unit Digital Audio Extender R page | 4... - Page 15 Introduction Name Description SPDIF Connect an RCA-type cable from the digital output of the source to this port. This port will output digital audio from either the OPT or SPDIF port on the Sender unit. If a digital audio source is connected to both the SPDIF and OPT ports, on the Sender unit, then the SPDIF audio signal will be heard on the output.
-
Page 16: Installation
Installation Connection Instructions Audio ► Connect an RCA- type cable from the digital output of the audio source to the SPDIF port on the Sender unit. Connect the included optical cable from the optical audio output of the audio source to the OPT port on the Sender unit. -
Page 17: Sample Wiring Diagram
DIGITAL AUDIO (TOSLINK) CABLE DIGITAL AUDIO (COAX) CABLE (or better) CABLE CAT-5 CABLE CAT-5e (Up To 330 Ft) Digital Audio Extender Receiver Speakers with Coax Input Audio Receiver Digital Audio Extender Sender Speakers with TOSLINK Input EXT-DIGAUD-141 page | 7... -
Page 19: Appendix
Digital Audio Extender Appendix Specifications ...................... 10 page | 9... -
Page 20: Specifications
Specifications Connectors, Controls, and Indicators Audio Input • 1 x S/PDIF • 1 x TOSLINK® Audio Output • 1 x S/PDIF • 1 x TOSLINK® CAT-5 • 1 x RJ-45, shielded Power Indicator • 1 x LED, red Operational Power Supply •... - Page 22 *Preferred Stretch it. Switch it. Split it. Gefen’s got it. ® 20600 Nordhoff St., Chatsworth CA 91311 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 1-800-545-6900 818-772-9100 818-772-9100 fax: 818-772-9120 fax: 818-772-9120 www.gefen.com www.gefen.com support@gefen.com support@gefen.com...
