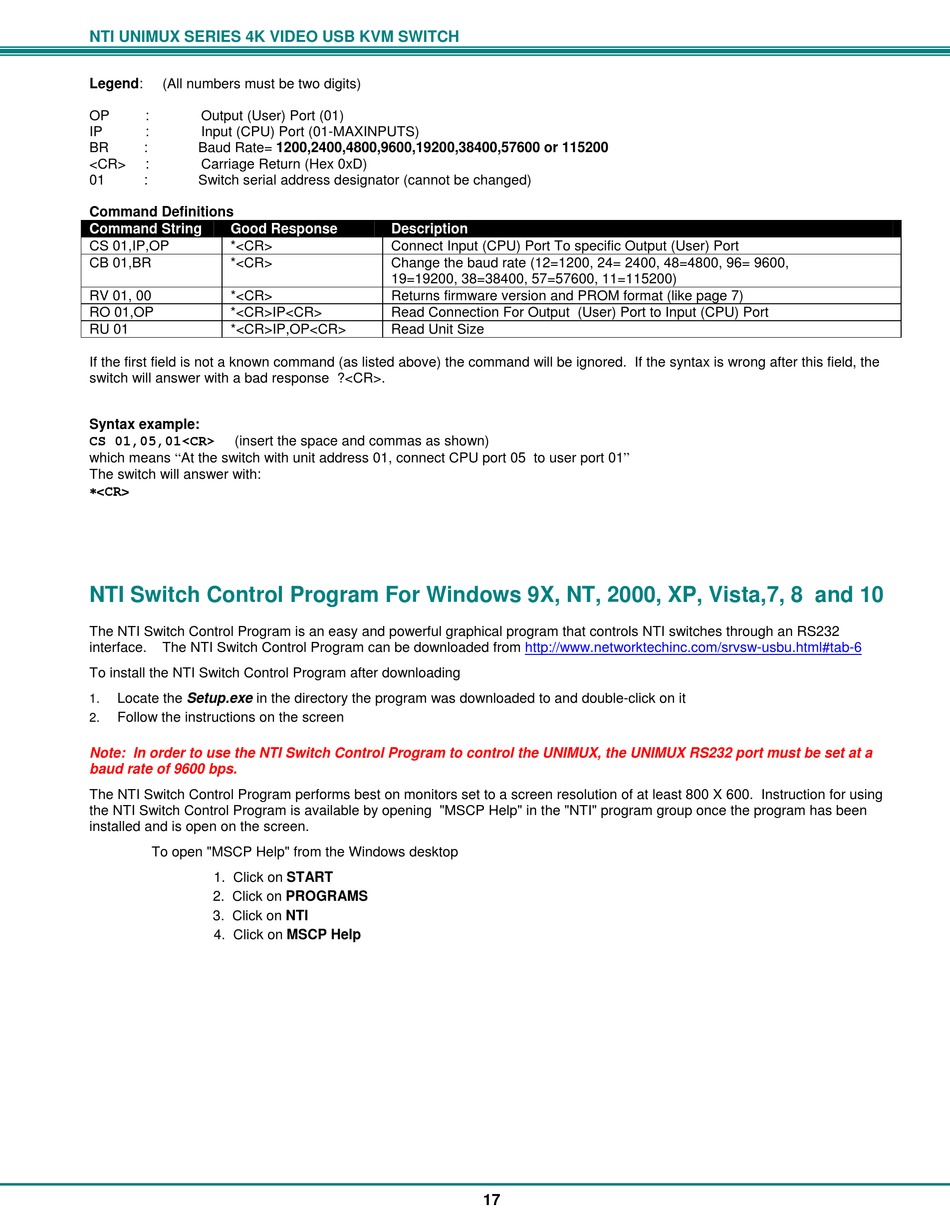

NTI UNIMUX SERIES 4K VIDEO USB KVM SWITCH
Legend: (All numbers must be two digits)
OP : Output (User) Port (01)
IP : Input (CPU) Port (01-MAXINPUTS)
BR : Baud Rate= 1200,2400,4800,9600,19200,38400,57600 or 115200
<CR> : Carriage Return (Hex 0xD)
01 : Switch serial address designator (cannot be changed)
Command Definitions
Command String Good Response
CS 01,IP,OP *<CR>
CB 01,BR *<CR>
RV 01, 00 *<CR>
RO 01,OP *<CR>IP<CR>
RU 01 *<CR>IP,OP<CR>
If the first field is not a known command (as listed above) the command will be ignored. If the syntax is wrong after this field, the
switch will answer with a bad response ?<CR>.
Syntax example:
(insert the space and commas as shown)
CS 01,05,01<CR>
which means "At the switch with unit address 01, connect CPU port 05 to user port 01"
The switch will answer with:
<CR>

NTI Switch Control Program For Windows 9X, NT, 2000, XP, Vista,7, 8 and 10

The NTI Switch Control Program is an easy and powerful graphical program that controls NTI switches through an RS232
interface. The NTI Switch Control Program can be downloaded from
To install the NTI Switch Control Program after downloading
Locate the Setup.exe in the directory the program was downloaded to and double-click on it
1.
Follow the instructions on the screen
2.
Note: In order to use the NTI Switch Control Program to control the UNIMUX, the UNIMUX RS232 port must be set at a
baud rate of 9600 bps.
The NTI Switch Control Program performs best on monitors set to a screen resolution of at least 800 X 600. Instruction for using
the NTI Switch Control Program is available by opening "MSCP Help" in the "NTI" program group once the program has been
installed and is open on the screen.
To open "MSCP Help" from the Windows desktop
1. Click on START
2. Click on PROGRAMS
3. Click on NTI
4. Click on MSCP Help
Description
Connect Input (CPU) Port To specific Output (User) Port
Change the baud rate (12=1200, 24= 2400, 48=4800, 96= 9600,
19=19200, 38=38400, 57=57600, 11=115200)
Returns firmware version and PROM format (like page 7)
Read Connection For Output (User) Port to Input (CPU) Port
Read Unit Size
http://www.networktechinc.com/srvsw-usbu.html#tab-6
17
