12.4.2 Detaching the LCD Display Unit

Disassemble first:
a. 12.3.3. Detaching the Frame Side Housing Decorations
b. 12.3.4. Detaching the Top Cover
c. 12.4.1. Detaching the Front Unit Assembly
Disassembly and reassembly

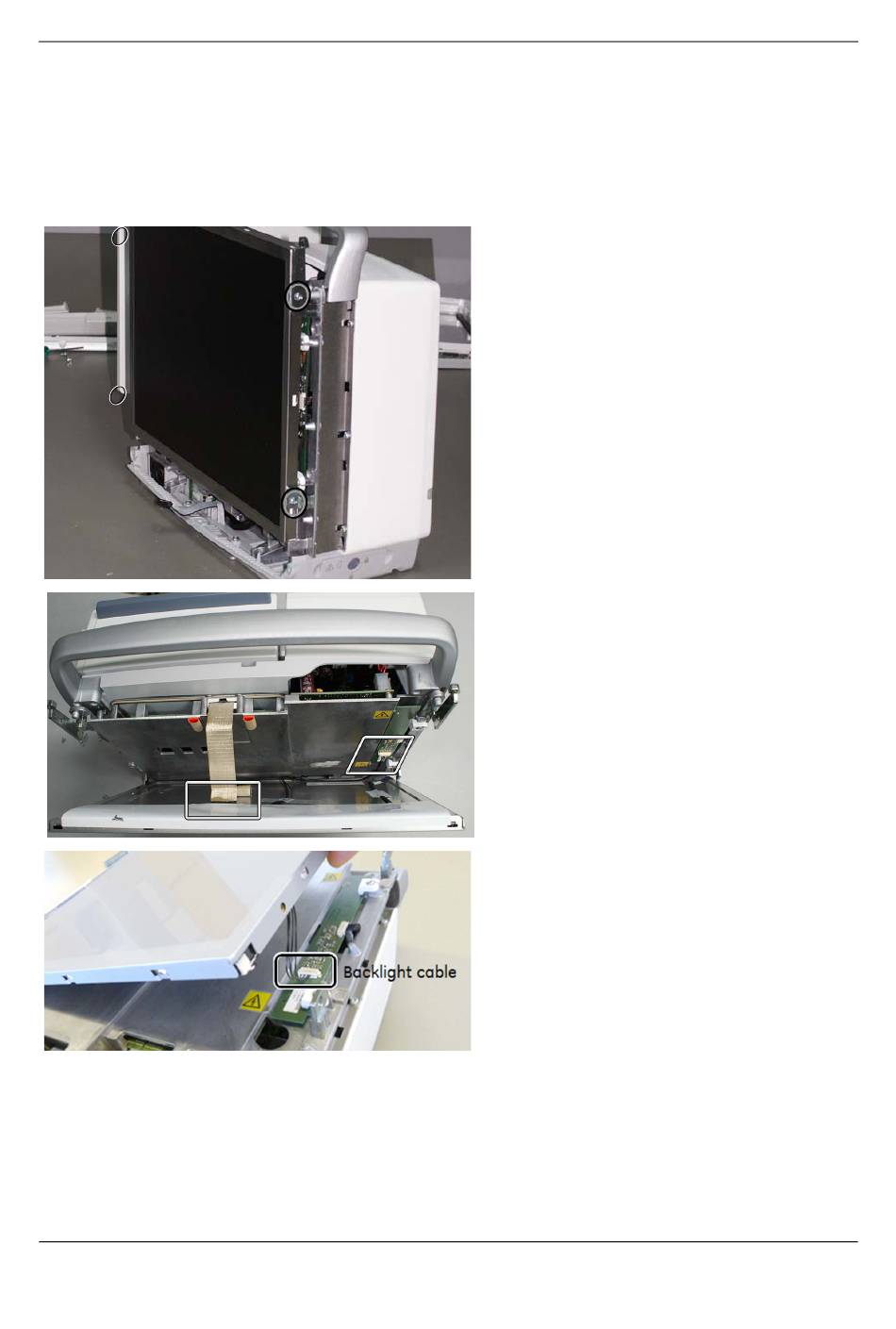

1. Remove the four T10 screws with washers,
two on both sides of the LCD Display and
detach the display from the frame. [Torque 0.6
Nm]
2. Detach the LVDS cable from the LCD display.
3. Detach the Backlight Cable from the Backlight
LED Adapter Board.
NOTE: To get access to detach the cables, you
may have to lift the LCD display as showed in the
pictures.
