Page 2
The information in this manual applies to the software and hardware versions listed on the first page of this manual. Due to continuing product innovation, specifications in this manual are subject to change without notice.
Table of contents Table of contents About this manual Intended use of the manual ............1 Intended audience of the manual.
Page 4
CARESCAPE B650 User interface symbols ............. . . 33 Using Webmin service interface Local access to Webmin using the integrated browser on the patient monitor .
Page 5
Table of contents 7.2.1 Configuring hostname............69 7.2.2 Selecting and configuring CARESCAPE Network .
Page 6
CARESCAPE B650 8.2.4 Ground (earth) integrity ............102 8.2.5 Earth leakage current test .
− CARESCAPE Monitor B650 Chapters 1 to 7 provide an overview of the CARESCAPE Monitor B650 patient monitoring system and contains information needed for system installation. Chapters 8 to 13 provide information for the planned and corrective maintenance of the CARESCAPE Monitor B650 main unit.
CARESCAPE Monitor B650 The following naming conventions are used to refer to different modules and module categories: − PDM: Patient Data Module − PSM: Patient Side Module: E-PSM, E-PSMP, E-PSMW and E-PSMPW. − E-modules: all modules with prefix E-. −...
1.7 Trademarks Listed below are GE Medical Systems Information Technologies, Inc. and GE Healthcare Finland Oy trademarks. All other product and company names contained herein are the property of their respective owners.
Page 12
CARESCAPE Monitor B650 For your notes: 2062973-002...
Safety information Safety information 2.1 General safety statements See the user’s manual for a list of general safety statements. This device is intended for use under the direct supervision of a licensed health care practitioner. Contact GE for information before connecting any devices to the equipment that are not recommended in this manual.
CARESCAPE Monitor B650 2.3 Safety symbols NOTE: The following safety-related symbols appear on one or more of the devices. General warning. This symbol is identified by a yellow background, black triangular band, and a black symbol. General caution sign. IEC 60601-1, 2005 edition This symbol is identified by a white background, black triangular band, and a black symbol.
Page 15
Safety information Type CF (IEC 60601-1) protection against electric shock. Isolated (floating) applied part suitable for intentional external and internal application to the patient, including direct cardiac application. Type CF (IEC 60601-1) defibrillator-proof protection against electric shock. Isolated (floating) applied part suitable for intentional external and internal application to the patient including direct cardiac application.
Page 16
CARESCAPE Monitor B650 For your notes: 2062973-002...

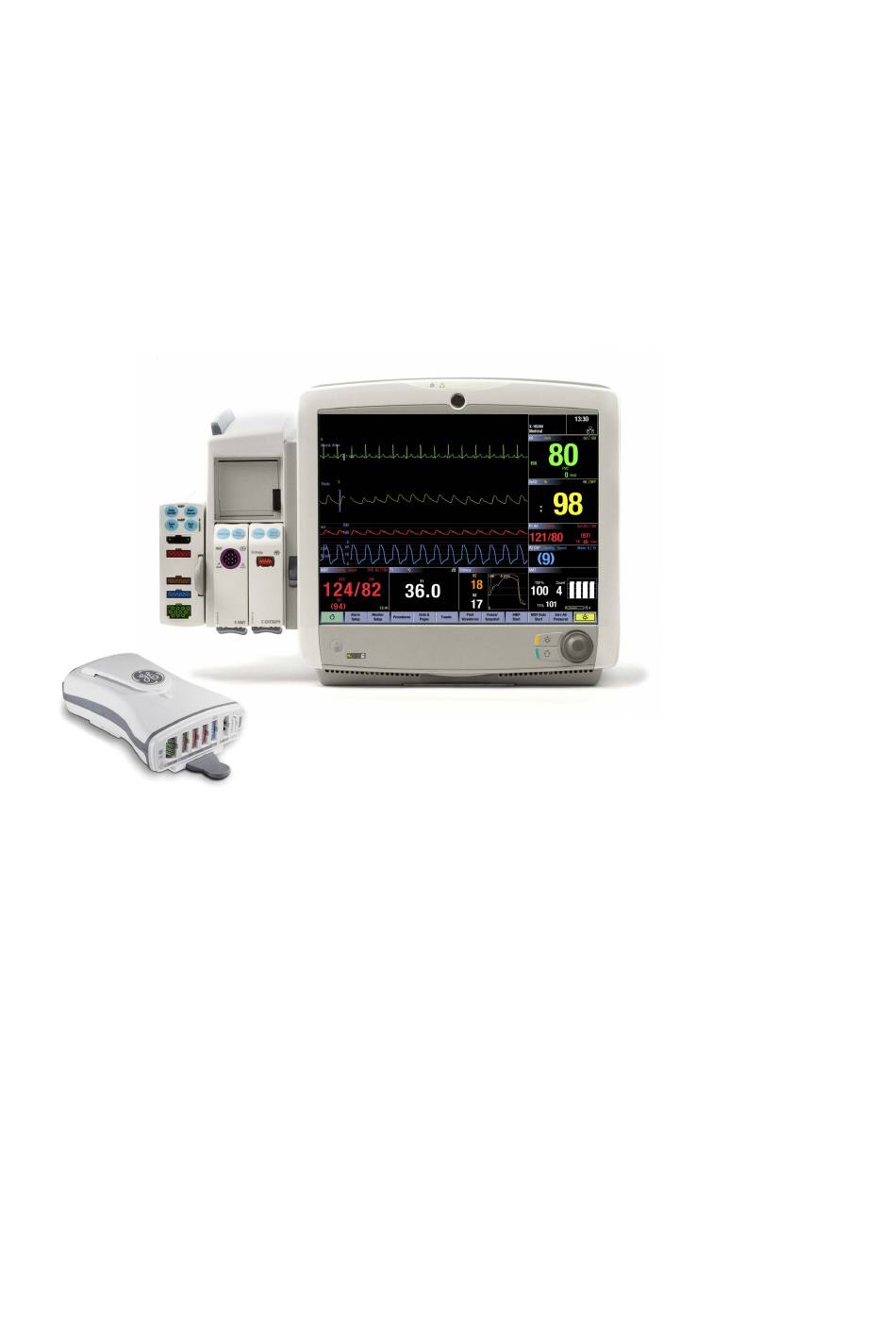

System overview 3.1 System introduction The CARESCAPE Monitor B650 is a modular monitoring solution for multiple care areas and intrahospital transport within a professional healthcare facility. The patient monitor offers various hardware configurations, software options and parameter module support to expand from basic hemodynamic operations to demanding operating room applications.
CARESCAPE Monitor B650 There are two different configurations of the interface board. They provide connectors for peripheral devices like USB input devices, network interfaces, a secondary clone display and other devices. Module frame The monitor has a pivoting module frame that includes standard docking for the following multiparameter hemodynamic modules: Patient Data Module (PDM) and Patient Side Module (PSM).
Page 19
System overview Keyboard A washable, antibacterial keyboard is specified for use with the monitor. It may be connected to the monitor or display via one of the USB connectors. The keyboard allows you to enter data without using the touchscreen display. Mouse A standard mouse may be connected to the monitor or display via one of the USB connectors.
CARESCAPE Monitor B650 3.2.4 Acquisition modules The patient monitor includes standard docking for the following multiparameter hemodynamic modules: PSM and PDM. The optional E-module slot can occupy an E-PRESTN module. E-PRESTN The integrated E-module slots can occupy two single-width or one double-width E-modules at a time.
System overview Refer to the patient monitor’s supplemental information manual for a list of compatible CARESCAPE and S/5 Network devices. The MC Network establishes communication and allows patient data to be sent to an optional CIC Pro Clinical Information Center (central station). The S/5 Network establishes communication and allows patient data to be sent to an iCentral (central station).
CARESCAPE Monitor B650 3.2.7 Unity Network ID connectivity device The Unity Network ID connectivity device acquires digital data from up to eight peripheral bedside devices (not necessarily manufactured by GE), processes this data and transmits the formatted data to the patient monitor.
System overview 3.2.9 Printers and recorders The patient monitor can print to a recorder and to a laser printer. Refer to the patient monitor’s supplemental information manual for a list of compatible recorders and laser printers. Laser printers A laser printer can print for example waveforms, graphic and numeric trends, snapshots, events history, parameter specific printouts, stored laboratory data and calculation results and care reports.
CARESCAPE Monitor B650 3.2.10 Service Interface Webmin is a browser-based interface that provides service and diagnostic functions for the patient monitor. Using a web browser, the user can connect to Webmin to configure, diagnose and retrieve system information. The user can access Webmin either locally on the patient monitor or remotely over the IX Network.

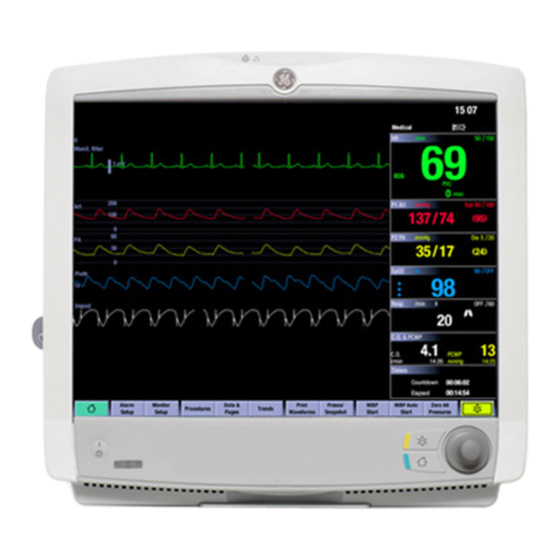

System overview 3.3 Controls and connectors 3.3.1 Front view Display B650 with touch screen option Alarm light Power indicators Alarm light Power on/standby button Battery power/ mains power indicators Abbreviated integrated keypad Trim Knob control Ambient light detector lens Audio alarm paused/off area (blue) Alarm light area (blue, yellow, or red) 2062973-002...
CARESCAPE Monitor B650 Mains voltage indicator - the green LED is lit when the monitor is connected to AC mains. (10) Battery use indicator - the green LED is lit when the monitor is operating on battery power. (11) Battery charging/failure indicator - the orange LED is lit when the monitor battery is charging and flashing in case of battery failure or missing battery.
System overview 3.3.3 Rear views Power LEDs for troubleshooting Cable clamp for power cord Equipotential connector Receptacle for power cord and fuse holder Device label Slide mount with connector for PDM Slide mount with connector for PSM Advanced Interface Board or Standard Interface Board 2062973-002...
CARESCAPE Monitor B650 Interface board connectors Advanced Interface Board Standard Interface Board USB ports (2 or 4 pcs USB 2.0 Type A connectors) DVI-I connector for a secondary display ePort connector for PDM module Network connector for the MC Network & S/5 Network...
Every GE device has a unique serial number for identification. The serial number is written in a device label. A sample of the information on a device label is shown below. The product code for CARESCAPE Monitor B650-01 is SEW. Description...
CARESCAPE Monitor B650 3.5.1 Security features Access control Access control is the overall mechanism used to determine and enforce the following: • Who has access • How individuals gain access • When access is permitted • What information may be accessed Other than clinical and Webmin applications, access to other subsystems (for example BIOS) is restricted.
System overview • Antivirus software To provide seamless real-time patient monitoring, the patient monitor does not have antivirus software. • Security updates and patching processes Security updates and patches cannot be applied to the CARESCAPE product without going through GE’s vigorous software verification and validation process. Any software update needs will be communicated by GE.
CARESCAPE Monitor B650 Wireless Network Security The patient monitor can operate both in the wired and the wireless MC Network or S/5 Network. IX Network is wired only. Refer to the Wireless LAN Network Installation Guide and S/5 Network Installation Guide for more information regarding the security features of the wireless MC Network and the S/5 Wireless Network, respectively.
System overview 3.6 Equipment symbols The following symbols appear on one or more of the devices. Bell cancel. Audio off. Audio pause. Temporary audio off. General alarm. Fuse. Replace with identical type and rating fuse. Do not reuse. Battery (monitor): The flashing orange symbol indicates that there is a battery failure/missing battery.
Page 34
CARESCAPE Monitor B650 The following symbols appear on one or more of the devices. Battery (monitor). Located on the battery slot cover. Battery (PDM). Communication. (PDM) Power indicator. (PDM) On/standby button. Standby or power indicator. Signal/power input. Signal/power output. Signal/power input/output (combined).
Page 35
System overview The following symbols appear on one or more of the devices. Display brightness controls. Display speaker volume controls. DVI connector. Video output connector for digital or analog source. Color display connector port. Color video input. Video input connector for digital or analog source. Color video output, digital.
Page 36
CARESCAPE Monitor B650 The following symbols appear on one or more of the devices. Serial interface. Tram-Net and ePort connector for PDM module, E-module frame Tram-Rac housing, and TRAM modules Gas inlet. Gas outlet. Press to open. Zero all. (PDM) Degree of ingress protection.
Page 37
System overview The following symbols appear on one or more of the devices. Equipotentiality. Connect device to a potential equalization conductor. Protective earth ground. Connectors grounded to the AC power source. Defibrillator synchronization connectors. (WLAN) Class 2 Identifier Stacking limit by number. Date of manufacture.
Page 38
CARESCAPE Monitor B650 The following symbols appear on one or more of the devices. Date of manufacture. This symbol indicates the date of manufacture of this device. The first four digits identify the year, the following two digits identify the month, and, if indicated, the last two digits identify the day.
Page 39
System overview The following symbols appear on one or more of the devices. Fragile. Handle with care. This way up. This symbol indicates that the waste of electrical and electronic equipment must not be disposed as unsorted municipal waste and must be collected separately. Please contact an authorized representative of the manufacturer for information concerning the decommissioning of your equipment.
Page 40
CARESCAPE Monitor B650 The following symbols appear on one or more of the devices. Russia only. GOST-R mark. Eurasian Economic Union countries only. Eurasian Conformity mark. Conformity to applicable technical regulations of Customs Union. Brazil only. INMETRO certificate. NOTE: The following symbols (required by China law only) are representative of what you may see on your equipment.
System overview The following symbols appear on one or more of the devices. Underwriters Laboratories product certification mark. Canada only. Industry Canada certification number indicates that this product meets the applicable Industry Canada technical specifications. China only. China Ministry of Industry and Information Technology identification number for Radio Transmission CMIIT ID Equipment Type Approval.
Page 42
CARESCAPE Monitor B650 The following symbols appear in the software user interface Alarm priority indicator: Low (cyan). Indicates a low priority alarm. Alarm volume icon. Adjust the minimum alarm tone volume. Audio alarms off indicator - Displays in the upper left corner of the alarm area when physiological audible alarms are turned off.
Page 43
System overview The following symbols appear in the software user interface Reminder volume icon. Adjust the volume of the tone that sounds every two minutes when audio alarms are turned off. Touch volume icon. Adjust the volume of the tone that sounds when a user touches a touchscreen display.
Page 44
CARESCAPE Monitor B650 The following symbols appear in the software user interface Monitor battery is charging. There is a white running bar inside the symbol. Monitor battery failure indicator. Indicates a missing battery or a battery failure. PDM battery charging indicator. Indicates that the PDM battery is charging.
Page 45
System overview The following symbols appear in the software user interface Completed NIBP volume icon. Adjust the volume of the tone that sounds when an NIBP measurement result is available. Manual NIBP icon. Start a manual NIBP measurement. Nellcor OxiMax SatSeconds indicator. Indicates the amount of time the saturation is outside the limits before alarms are generated.
Page 46
CARESCAPE Monitor B650 For your notes: 2062973-002...
Using Webmin service interface Using Webmin service interface Webmin is a browser-based service interface that is used to configure the platform settings of the patient monitor and to diagnose and retrieve system information for maintenance and troubleshooting. Local access to Webmin You can access Webmin locally through the integrated browser on the patient monitor or from a configured service PC that is connected to the patient monitor with an Ethernet crossover cable.
CARESCAPE Monitor B650 Continue to 4.5. Login to Webmin. Closing Webmin Select to close Webmin and return to the main display. 4.2 Local access to Webmin with a service PC connected to the IX connector You can access Webmin locally by connecting an Ethernet crossover cable between the service PC and the IX connector of the patient monitor.
Page 49
Using Webmin service interface NOTE: If the IX IP address field is shown as 0.0.0.0., you need to configure the patient monitor’s IX Network address first. Access Webmin using the integrated browser and configure a static IP address for the IX Network. Configure the service PC’s IP address and subnet mask to the same network segment with the patient monitor’s IX Network setting.
CARESCAPE Monitor B650 4.3 Local access to Webmin with a service PC connected to the MC connector You can access Webmin locally by connecting an Ethernet crossover cable between the service PC and the MC connector of the patient monitor.
Using Webmin service interface The Login to Webmin dialog box displays. Continue to 4.5. Login to Webmin. Closing Webmin You can exit the monitor’s maintenance mode any time by pressing any keypad or keyboard key, using the Trim Knob, using the touchscreen or clicking a mouse button. The monitor will automatically restore the original network configuration to the S/5 or MC Network and return to the normal monitoring mode.
CARESCAPE Monitor B650 IX Netmask: ______________________ Configure the service PC’s IP address and subnet mask to the same network segment with the patient monitor’s IX Network. NOTE: For more information on how to configure the IP address, refer to the PC’s documentation.
Page 53
Using Webmin service interface NOTE: Username and password are case sensitive. NOTE: “Change Me” is the factory default password for the username “biomed”. Refer to section 7.13. Changing passwords for details on how to change the default password. The Webmin application opens and defaults to the Information tab. Figure 1 Webmin user interface when accessed using the integrated browser Figure 2...
CARESCAPE Monitor B650 4.6 Webmin configuration modules The Webmin service interface includes the following configuration modules. Select Help for additional information related to each Webmin module. Webmin module Use the module Admit Settings to configure Patient ID Prefix and barcode settings.
Page 55
Using Webmin service interface Webmin module Use the module National Requirements to activate France specific defaults for the ECG HR adjustment range and the reminder beep behavior. Network to select and configure the real-time network as the MC Network (CARESCAPE Network) or S/5 Network. It also allows the user to configure the IX Network settings.
CARESCAPE Monitor B650 4.7 Webmin information modules The Webmin information modules provide useful information about the patient monitor setup especially for troubleshooting. The Configuration Information module shows the current platform configuration of the patient monitor and the connected peripheral devices.
Page 57
Using Webmin service interface Ping a TCP/IP network device- Use this Webmin feature to verify connectivity with a network device on the MC Network and IX Network. Log files - The patient monitor collects information about different system events and errors to log files.
Page 58
CARESCAPE Monitor B650 For your notes: 2062973-002...
Confirm that all components are undamaged. If any of the components is damaged, contact the shipper. Confirm that all components are included. If any of the components is missing, contact your GE Healthcare distributor. WARNING EXCESSIVE LEAKAGE CURRENT - If the device has been transported or stored outside operating temperature range allow it to stabilize back to operating temperature range before removing it from the plastic bag.
CARESCAPE Monitor B650 WARNING The use of accessories, transducers and cables other than those specified may result in increased emissions or decreased immunity performance of the equipment or system. WARNING For detailed instructions and information regarding supplies and accessories, always refer to their own instructions for use.
Pre-installation requirements • Refer to the sections 7.2.3. Selecting and configuring S/5 Network 7.2.4. Configuring WLAN to see the configuration information you need to have available to configure the patient monitor to the S/5 Wireless Network. 5.3.5 IX Network • The IX Network infrastructure shall be installed according to the CARESCAPE Network Configuration Guide.
CARESCAPE Monitor B650 5.6 Power and environmental requirements Check the patient monitor’s supplemental information manual for power and environmental requirements. WARNING Operation of the monitor outside the specified performance range may cause inaccurate results. CAUTION Do not use or store equipment outside the specified temperature, humidity, or altitude ranges.
Page 63
Pre-installation requirements CAUTION Use of known RF sources, such as cell/portable phones, or other radio frequency (RF) emitting equipment near the system may cause unexpected or adverse operation of this device/system. Consult qualified personnel regarding device/system configuration. • The patient monitor should be isolated from sources of strong electromagnetic and radio frequency interference.
Page 64
CARESCAPE Monitor B650 For your notes: 2062973-002...
Hardware installation Hardware installation CAUTION LOSS OF MONITORING - Leave space for circulation of air to prevent the monitor from overheating. The manufacturer is not responsible for damage to equipment caused by improperly vented cabinets, improper or faulty power, or insufficient wall strength to support equipment mounted on such walls.
CARESCAPE Monitor B650 − Three LEDs illuminated: 50% – 74.9% of full-charge capacity. − Two LEDs illuminated: 25% – 49.9% of full-charge capacity. − One LED illuminated: 10% – 24.9% of full-charge capacity. − One LED flashing: < 10% of full-charge capacity remaining.
Hardware installation Press the battery door closed until it seals the battery compartment. 6.2 Mounting the patient monitor The patient monitor has an integrated GCX mounting plate. This facilitates all mounting options for the patient monitor. Refer to the CARESCAPE Modular Monitors Mounting Solutions to identify the compatible mounting hardware for the patient monitor.
CARESCAPE Monitor B650 6.3 Connecting a secondary display The patient monitor supports one secondary, clone display. WARNING Do not connect a monochrome display to the monitor. Visual alarm indicators may not appear properly. WARNING The secondary display will not sound the audible alarms.
Page 69
Hardware installation Secure the USB cables connections to the displays according to the instruction included in the display package. NOTE: A USB hub should not be used to connect the USB touchscreen to the patient monitor. B) Cable length is 5 to 15 meters If complete isolation is not required, this method will provide the most cost effective means of extending your USB installation.
CARESCAPE Monitor B650 Secure the USB cables connections to the displays according to the instruction included in the display package. Video cable: Connect one end of the 15-meter DVI-I to DVI-I video cable to the DVI-I connector on the bottom of the display and the other end to the DVI-I connector on the back of the patient monitor.
Hardware installation Installing a PDM module to a mounting solution: Ensure that the selected PDM mount is properly installed according to the installation instructions included with the mounting hardware. Connect the PDM module to installed mounting hardware as instructed in the accompanying installation instructions.
Page 72
CARESCAPE Monitor B650 devices, the user must contact the manufacturers concerned (or other informed experts) for proper use. In all cases, safe and proper operation should be verified with the applicable manufacturer's instructions for use, and system standards IEC60601-1-1 must be complied with.
This could lead to incorrect drug dose calculations, hemodynamic calculations, or oxygenation calculations. Prior to installing the System, please contact the GE Healthcare Aware Gateway HL7 Integration Engineering Team or your GE Healthcare service representative to verify or update your Aware Gateway configuration.
CARESCAPE Monitor B650 • Connect a Unity Network ID connectivity device to the network connector labelled “ID” in the rear panel of the patient monitor. NOTE: Connection to the Unity Network ID connectivity device is possible only if the monitor is equipped with the Advanced Interface Board.
Hardware installation NOTE: Refer to the iCollect User's Manual for more information about the iCollect. NOTE: Contact GE Healthcare Service to get more information about interfacing other data acquisition systems to the patient monitor. 6.11 Connecting a remote-on cable Remote-on connection allows you to power-up the patient monitor from the power switch of a GE Healthcare anesthesia machine.
Page 76
CARESCAPE Monitor B650 WARNING EXCESSIVE LEAKAGE CURRENT - Laser printers are UL 60950/IEC 60950 certified equipment, which may not meet the leakage current requirements of patient care equipment. This equipment must not be located in the patient environment unless the medical system standard IEC 60601-1-1 is followed.
Configuration Configuration The configuration of the patient monitor consists of platform configuration and clinical configuration. This chapter describes how to perform the platform configuration tasks needed to take the patient monitor into use for the first time and the configuration tasks needed for administration and maintenance thereafter.
CARESCAPE Monitor B650 Enter the new hostname in the Change Value to column. NOTE: The hostname is a unique, 4 to 32 character long identifier of a patient monitor in the network. Use alphanumeric characters A-Z, a-z, 0-9. The hostname may include also characters “-”...
Configuration The network configurations will be saved and become active when the patient monitor is restarted. 7.2.3 Selecting and configuring S/5 Network To select S/5 Network for the real-time network infrastructure: Log in to Webmin. Select Configuration > Network > Wired Interfaces. The current network configuration is shown in the Present Configuration table.
Page 80
CARESCAPE Monitor B650 NOTE: Antenna diversity is a method used to assist in compensating for multipath interference. When set to Enabled, Antenna Diversity monitors the signal from each antenna and automatically switches to the one with the better signal. Configure the appropriate WLAN settings. Note that the configurable attributes and available values are different for MC Network and S/5 Network.
Page 81
Configuration WLAN Client Configuration Item Description Comments Frequency Band Select the frequency band to be The WLAN radio is capable to communicate on used with the WLAN radio: the following frequency bands, protocols and data rates: 2.4 GHzPass 2.4 GHz, IEEE 802.11b, up to 11 Mbps. 5.1 GHz 2.4 GHz, IEEE 802.11g, up to 54 Mbps.
Page 82
CARESCAPE Monitor B650 WLAN Client Configuration Item Description Comments WMM AC Parameters Configure the WMM AC Parameters WLAN Multimedia (WMM) provide basic Quality (CWmin, CWmax, AIFS, TXOP) for of Service (QoS) features to IEEE802.11 networks each access category (voice, video,...
Page 83
Configuration WLAN Client Configuration Item Description Comments SSID Enter the Service Set Identifier (SSID), The SSID of the wireless client must match the also known as network name. SSID of the wireless infrastructure. A valid SSID includes up to 32 case-sensitive ASCII characters, including space (ASCII decimal 32 to 126).
CARESCAPE Monitor B650 WLAN Client Configuration Item Description Comments Pass Phrase / Key Enter the Pass Phrase / Key for the The Pass Phrase / Key of the wireless client must used confidentiality method as an match the Pass Phrase / Key of the wireless ASCII or HEX string as selected infrastructure.
Configuration In the Time Configuration window, in Configure Date and Time, update the following fields as needed: • Date • Month • Year • Hour:Minute • AM/PM • 12/24 Hrs Select Save. The manual time configuration takes effect immediately. 7.4 Setting unit and bed name Configure the care unit name and bed name for patient monitors that are configured to connect to the MC Network.
CARESCAPE Monitor B650 Below Printer Configuration Information in the Install Printer window, provide the following information: Select either the Hostname or IP Address radio button, as applicable. In the Hostname or IP Address field, enter the printer Hostname or IP Address.
Configuration Location ID Identifies the location ID number (within the range 0 to 599) associated with the patient monitor for searching the MUSE system. Site Number Identifies the site number (within the range 1 to 254) associated with the patient monitor for searching the MUSE system. Select Save.
CARESCAPE Monitor B650 7.7.2 Barcode settings Barcode settings must be configured if a barcode reader is used to input patient data to the Admit/Discharge menu. NOTE: Acquire detailed specification of the character-delimited or the length-delimited, multi-field barcode that the hospital uses. This will configure the barcode parser correctly.
Page 89
Configuration In the Position column, type the beginning position of the field in the data string (from 1 to 300). In the Length column, type the number of characters (from 1 to 99) that the field contains. For Gender Format, select Fixed or Configured. If you select Configured: Type the character that identifies Male.
CARESCAPE Monitor B650 7.7.4 Configure character delimited parser information Points to note − If you configure Age, you must either select the Age Unit item or one of the age units (e.g., Years, Months, Weeks, Days) below Fixed Option. −...
Page 91
Configuration In the Position column of the Admit/Discharge Configuration window, enter the sequence number of each item included in the barcode. Use incremental numbers from 1 (the left-most field) up to 16 (the right-most field). If an item is not included in the barcode, leave the Position field blank for the item. Below Field Delimiter, in the Delimiter field, enter the special character that separates the fields on the barcode.
CARESCAPE Monitor B650 Item Sequence number of the item in the barcode Height Height Unit Weight The following sample shows the corresponding entries in the Admit/Discharge Configuration window. 7.7.5 Barcode data specifications Points to note − The maximum length of the entire barcode is 300.
Page 93
Configuration − If the field value is longer than the maximum length indicated, the right-most characters will be truncated when the value is displayed in the Admit/Discharge menu. If a field contains a forbidden character, that character will be replaced with a space when it is displayed in the Admit/Discharge menu.
CARESCAPE Monitor B650 7.8 Setting power frequency WARNING Incorrect power line frequency setting could adversely affect ECG and EEG processing. Log in to Webmin. Select Configuration > Power Frequency. In the Power Frequency window, select the applicable power line frequency.
Configuration Refer to the Module Frames and Modules Technical Manual for detailed information on how to change these settings. Webmin Module Description sub-module Assets Settings This setting allows you to view the customer assigned asset number of the PDM. Licensing This setting allows you to manage the PDM feature licenses.
CARESCAPE Monitor B650 WARNING Control of this user’s password is critical to ensure that Webmin on this device is accessed only by trained and authorized personnel. Failure to limit access of Webmin to trained and authorized personnel only may compromise patient safety and/or system performance.
Configuration In the Remote Service Configuration window, enter the applicable data: HTTP Proxy Server Configuration Item Description Comments Address If this site uses an HTTP proxy server, a These values are specific site proxy server IP Address and determined by the Port Port number are required for the customer.
CARESCAPE Monitor B650 7.16 Transferring settings from one patient monitor to other patient monitors You can transfer platform and/or clinical settings from one patient monitor to another, take backup copies of the settings to an external device and restore the settings from an external device.
Configuration − The Save As window will show you the name of the created settings file. − Select Save to save the settings file to the USB flash drive. NOTE: You may change the default filename, but do not change the file extension. NOTE: Do not disconnect the USB storage device until saving is complete.
Page 100
CARESCAPE Monitor B650 • Select Cloned settings (clinical and platform) to activate both the clinical and platform settings. • Select Cloned clinical settings to activate only loaded clinical settings. • Select Cloned platform settings to activate only loaded platform settings.
Configuration Select NOTE Immediately Activate the new settings The patient monitor must be in a Immediately. case reset / patient discharged state. After next case end / Take the new settings in use This option allows you to initiate the with a delay, after the next setting activation process with a discharge...
Alternatively, you can enable and activate individual software packages and host software feature licenses by entering the required activation code manually. NOTE: Contact GE Healthcare to acquire activation codes for licenses. 7.17.1 Enabling and activating host software package NOTE: As a factory default, the ICU software package is always activated.
Refer to the latest version of the CARESCAPE Modular Monitors Supplemental Information Manual for a list of compatible network and bedside devices. • Contact GE Healthcare to get the latest version of the user and service documentation 2062973-002...
Page 104
For more information, refer to the latest version of the CARESCAPE Modular Monitors Supplemental Information Manual. Contact GE Healthcare for any inquiries regarding the software CD and/or activation code for the new host software version.
Page 105
Configuration Activating host software immediately Before you start: • Make sure the patient monitor is in a case reset / patient discharged state. In the Host Software window, verify that the software you are activating is listed as Inactive in Current Software State. In Software License, if applicable, enter the Activation Code for the new software version.
Page 106
CARESCAPE Monitor B650 Software activation in progress. Do not disconnect any measurement modules or other peripheral devices, or shut down the monitor until the software activation is complete. Activation may take up to 10 minutes. The device will automatically restart once the software activation is complete.
Page 107
Configuration In Erase Inactive Software After Activation, select: to keep the currently active software version as inactive software after the new software version is activated successfully. This option lets you restore the patient monitor to the previous software version later. to erase the currently active software version permanently after the new software version is successfully activated.
CARESCAPE Monitor B650 activation is completed and the parameter module has restarted. This may take up to 15 minutes. Do not shut down the patient monitor or disconnect the parameter modules. The parameter module restarts automatically after the software activation is complete.
Installation checkout Installation checkout The purpose of the installation checkout procedure is to ensure that the system is properly installed and configured for use. Service personnel shall perform the following checkout procedure for the monitoring system after the hardware installation and platform configuration is completed: •...
CARESCAPE Monitor B650 Tool Part Number / Requirement Safety Analyzer / Leakage Current Tester Equivalent to the circuits shown. Safety Test Body Kit P/N M1155870 or equivalent Instead of the test bodies included in the safety test body kit, other applicable test bodies with all pins connected together may be used.
Page 111
Installation checkout Acceptance criteria: • For equipment without a power supply cord, the impedance between the protective earth terminal and any accessible metal part which is protectively earthed shall not exceed 0.1 ohms. • For equipment with a power supply cord, the impedance between the protective earth pin in the mains plug and any accessible metal part which is protectively earthed shall not exceed 0.2 ohms.
CARESCAPE Monitor B650 8.2.5 Earth leakage current test This test measures the current leakage flowing from the mains part through or across the insulation into the protective earth conductor of the device under test. Perform this test both in Normal Condition (NC) and in a Single Fault Condition (SFC), where one of the supply conductors is open at a time.
Installation checkout Read and record the current leakage indicated on the safety tester. 10. Power off the device under test. Acceptance criteria in Normal Condition (NC): • All readings shall be less than or equal to 300 μA for installations that require compliance to UL 60601-1 requirements.
Page 114
CARESCAPE Monitor B650 Read and record the current leakage indicated on the safety tester. Configure the safety analyzer as follows (SFC): − Polarity: NORMAL − Neutral: OPEN − Earth (GND): CLOSED Read and record the current leakage indicated on the safety tester.
Installation checkout All readings shall be less than or equal to 300 μA for installations that require compliance • to UL 60601-1 requirements. All readings shall be less than or equal to 500 μA for installations that require compliance • to EN 60601-1 / IEC 60601-1 requirements.
CARESCAPE Monitor B650 8.2.8 Patient (source) leakage current tests This procedure measures the leakage current from an applied part connector of the device to ground. Perform the test in Normal Condition (NC) and in two different Single Fault Conditions (SFC): 1) earth open and 2) one of the supply conductors open at a time.
Installation checkout − Polarity: REVERSED − Neutral: CLOSED − Earth (GND): OPEN Read and record the current leakage indicated on the safety tester. 10. Configure the safety analyzer as follows (SFC): − Polarity: REVERSED − Neutral: OPEN − Earth (GND): CLOSED 11.
CARESCAPE Monitor B650 NOTE: *The measuring device (MD) represents the network and voltage measuring instrument and its frequency characters according to IEC 60601-1. NOTE: **According to IEC-60601, the impedance to protect the circuitry and the person performing the test, but low enough to accept currents higher than the allowable values of the leakage current to be measured.
Installation checkout monitor battery and disconnecting the power cord from the wall outlet for a moment before turning the monitor on. Verify that the patient monitor starts up normally: − The yellow, red and blue alarm lights are lit momentarily. −...
CARESCAPE Monitor B650 − S/5 printers are correctly configured. − IX printers and printer locations are correctly configured. − Remote service is correctly configured. − National requirements are correctly configured. − Network is correctly configured. − Power Line Frequency is correctly configured.
Installation checkout Parser Type Test Procedure Length Delimited or Character 4. Select Scan from Barcode. Delimited Parser 5. Scan a known test barcode obtained from the hospital. NOTE: The barcode data content must be known and in compliance with the completed parser configuration. 6.
CARESCAPE Monitor B650 NOTE: Make sure that at least one other patient monitor is on the network. The other patient monitor must be in an admitted state and have an active ECG measurement with a simulator signal. Disconnect the network cable from the MC Network connector, if connected.
Theory of operation Theory of operation Figure 3 System block diagram The system block diagram describes the functional units of the CARESCAPE Monitor B650. 2062973-002...
CARESCAPE Monitor B650 The following sections describe the operation and interaction of the different subsystems. 9.1 Main components 9.1.1 Power management subsystem AC/DC Power Supply Unit The AC/DC power supply unit is a compact, medical, switched-mode power supply with a universal AC input.
Page 125
Theory of operation DC/DC Board There are two versions of the DC/DC board: one for models with the optional battery and one for models without battery. The non-battery version excludes the electronics needed for battery charging and power path management. The DC/DC board converts the output voltage of the AC/DC power supply, or the battery voltage, to the following supply voltages: •...
CARESCAPE Monitor B650 9.1.2 CPU subsystem Figure 4 CPU board block diagram 2062973-002...
Page 127
Theory of operation Main processor and memory: • The main processor manages the data processing of the patient monitor. • It has non-volatile flash memory for the bootloader software and Linux kernel and volatile SDRAM memory for run time code execution and temporary data storage. •...
CARESCAPE Monitor B650 Support for interfaces: • A USB host controller (root hub) provides a high speed USB interface for the external USB ports in the interface boards and for the internal system components (user interface board, tone generator and for the USB Disk On Module).
Theory of operation − It passes the backlight enable (on/off) signal from the CPU Board to the LED backlight unit in the LCD display. − It contains a voltage-controlled Pulse Width Modulator (PWM) circuitry. The PWM receives an analog brightness adjustment signal from the CPU board and converts it to a PWM signal to adjust the brightness of the LED backlight unit.
Theory of operation Touchscreen sensor The models with touchscreen user interface include a resistive touchscreen sensor in the front of the LCD panel. The touchscreen sensor detects the presence and location of a touch within the display area and communicates the information to the touchscreen controller. In non-touchscreen models, the touchscreen sensor is replaced by an optical filter that has a scratch-resistant, non-glare surface coating.
Page 132
CARESCAPE Monitor B650 Connector Standard Interface Board Advanced Interface Board 10/100 BASE-T Ethernet interface (RJ-45) ePort (DB9) Remote-on connector The interface boards provide the following main functions: • They have a high speed USB hub that provides 2 to 4 downstream (Type A) USB ports for the USB input devices.
Theory of operation Figure 6 Advanced Interface Board block diagram Synchronization connector The synchronization connector provides analog ECG and invasive pressure outputs and a digital marker-out signal for external user-supplied equipment, e.g., a defibrillator or an intra-aortic balloon pump. This connector does not operate with the PDM module. Synchronization connector test in Maintenance chapter for details about the pin layout.
Page 134
CARESCAPE Monitor B650 Module frame flex board The module frame flex board interfaces the recorder assembly, PDM interface and PSM interface to the hinge flex board. The module frame flex board provides the following main functions: • It routes the +12 V supply voltage, recorder control signals and the serial communication lines to the recorder assembly.
Page 135
Theory of operation Figure 7 E-module interface board block diagram Recorder assembly The optional recorder assembly consists of a 50 mm recorder and a recorder board. The recorder board interfaces the recorder to the module frame flex board. The recorder board provides the following main functions: •...
Page 136
CARESCAPE Monitor B650 For your notes: 2062973-002...
Maintenance and checkout 10 Maintenance and checkout This chapter specifies the checkout procedure and the maintenance activities to be performed to the patient monitor after corrective maintenance and during annual planned maintenance. WARNING Only perform maintenance procedures specifically described in the manual. WARNING Planned maintenance should be carried out annually.
CARESCAPE Monitor B650 Required checkout procedure Visual Electrical Functional check Performed service activity inspections safety test (section 10.3) (section 10.1) (section 10.2) After detaching or replacing: 10.3.1 Start-up Front Unit Assembly FRU 10.3.5 Keypad and remote User Interface Board FRU...
Maintenance and checkout 10.2 Electrical safety checks Electrical safety tests provide a method of determining if potential electrical health hazards to the patient or operator of the device exist. Perform the following electrical safety tests described in detail in chapter 8.
CARESCAPE Monitor B650 10.3.7 Alphanumeric keyboard Follow the procedure in section 8.3.7. Alphanumeric keyboard. 10.3.8 Barcode reader Follow the procedure in section 8.3.8. Barcode reader. 10.3.9 MC Network and S/5 Network Follow the procedure in section 8.3.9. MC Network and S/5 Network.
Page 141
Maintenance and checkout Required Tools − E-PSM(P)(W) or E-(P)RE(S)TN module − A multiparameter patient simulator with invasive pressure adapter cable to GE invasive pressure connector. − 5 lead ECG trunk cable, IEC or AHA − 5 leadwire set, IEC or AHA −...
Page 142
CARESCAPE Monitor B650 Configuring the monitor Configure ECG: Select ECG1 to the screen with waveform and adequate priority. In the Parameter Setup > ECG > Setup, select ECG1 Lead: II. Configure invasive pressure: Select P1 to the screen with waveform and adequate priority.
Page 143
Maintenance and checkout Press the Zero P1 module key. Check that a Zeroing message changes to a Zeroed message in the P1 parameter window. Configure the simulator's InvBP output channel to Arterial 120/80. Connect the oscilloscope probe to the InvBP output signal (yellow wire) and analog ground (blue or white wire).
CARESCAPE Monitor B650 10.3.15 Test completion Select Discharge Patient or Reset Case to discard any changes made to the patient monitor configuration during checkout. • Complete the Appendix B. Maintenance check form 10.4 Monitor battery maintenance The lithium-ion (Li-Ion) battery is a rechargeable battery containing lithium-ion cells. Each battery contains an integrated electronic fuel gauge and a safety protection circuit.
Maintenance and checkout 10.4.4 Charging a battery The battery is charged whenever it is installed into the patient monitor and the patient monitor is connected to an AC power source. The battery is charging both when the patient monitor is turned on and when it is in the standby mode.
CARESCAPE Monitor B650 10.4.7 Battery recycling This product contains Lithium-Ion batteries. At the end of their service life, batteries in this product must be recycled or disposed in accordance with local or national regulations. Do not dispose of batteries as trash or unsorted municipal waste.
Troubleshooting 11 Troubleshooting The problems and solutions in this section represent only a few of the faults that you may encounter and are not intended to cover every possible problem that may occur. This chapter focuses on troubleshooting technical problems. See the patient monitor’s user’s manual for troubleshooting monitoring problems and clinical configuration issues.
CARESCAPE Monitor B650 11.2 Webmin - Information tab Access Webmin service interface to view configuration information and device information. 11.2.1 Configuration information The Configuration Information module shows the current platform configuration of the patient monitor and the connected peripheral devices.
Page 149
Troubleshooting Scroll down the page to view the configuration information: Configuration information • Host Information Active software part number and version, Inactive software part number and version, Host serial number, Host asset number, MC Network IP address, IX Network IP address, MAC address, S/5 Network virtual ID, CPU hardware version, PMC hardware version, UIC hardware version, PMC software version, UIC software version and...
CARESCAPE Monitor B650 Configuration information • Power Line Frequency Current power line frequency setting in use. • MUSE/12SL Location ID, Site number, MUSE web username, and MUSE web URL. • WLAN Wireless LAN configuration information, including WLAN radio status, Antenna Diversity, Frequency Band, RTS...
Troubleshooting Device information • Acquisition Information - E- Label, Software version, Control number, and Serial Module number. • Installed S/5 Printers Printer name. • Installed IX Printers Printer name, hostname or IP address. • Printer Location Information Printout type (Alarm Waveforms, Numeric Trends, Reports, and Waveforms) and Printer location.
Page 152
CARESCAPE Monitor B650 The Hardware Statistics module displays several internal voltages, temperatures and power consumption. A value is displayed in red, if the current reading exceeds a pre-determined lower or upper limit, A value is displayed either as “0” or as “--”, if it cannot be measured.
Troubleshooting Measurement Description VSYS ePort voltage (mV) VSYS voltage is measured from the following locations:· VSYS RACK voltage (mV) • The VSYS ePort voltage is supplied for a PDM module that is VSYS EMOD (mV) connected to the PDM docking station. It is measured from VSYS OPTION voltage (mV) the module frame flex board after the VSYS ePort circuit breaker.
CARESCAPE Monitor B650 11.3.3 WLAN diagnostics Use this Webmin feature for troubleshooting WLAN related problems. This Webmin module provides information about the WLAN driver, WLAN status and the detected access points. Log in to Webmin. Select Diagnostics > WLAN. Scroll down the page to view the following WLAN diagnostics information.
Page 155
Troubleshooting Contents • WLAN Status WLAN radio • WLAN client IP Address • Antenna diversity mode • Center frequency (i.e., the current actual center frequency, which is associated with the operating channel number used, e.g in the 2.4 GHz band on channel 6, the displayed frequency should be 2.437 GHz.) •...
Page 156
CARESCAPE Monitor B650 Contents • WLAN status The current Association/Authentication status of the WLAN Radio: Association/ Description of the state Authentication state Disconnected The WLAN client radio is not authenticated or associated to any network infrastructure. Authenticating The network infrastructure is authenticating the WLAN client radio.
Troubleshooting 11.3.4 Log files The patient monitor collects information about different system events and errors to log files. These log files help troubleshooting problems in the patient monitor and the connected peripheral devices. The following table describes the available log files and the type of information that they collect.
Page 158
CARESCAPE Monitor B650 Log file name Contents PDM log All PDM errors and messages. • System log OS events and errors, including operating system related information, such as clinical application startup and recovery information, power on self-test results, etc. •...
Troubleshooting Select the log file you want to view. Select the information you want to view. • For the Webmin Action Log, select the user, module, and timeframe and select Search. • For the other types of logs, select the link associated with the information you want to view.
CARESCAPE Monitor B650 Description ACDC (green) The green ACDC LED should be lit when the patient monitor is connected to the AC mains, even if the patient monitor is in standby mode. A lit LED indicates that the DC/DC board receives the 15.3-16 VDC from the AC/DC power supply unit.
Troubleshooting • The LED is flashing to indicate Activity, i.e., the patient monitor is either transmitting or receiving data packets over the network. 11.6 Battery diagnostics You can check the monitor battery status from the Battery Status menu. Select Monitor Setup > Battery Status The Monitor Battery Status menu will open.
CARESCAPE Monitor B650 Field Status Description Battery Quality "OK" The full capacity of the battery is more than 50% compared to the full capacity of a new battery. "Condition" Battery requires conditioning. "Replace" The full capacity of the battery is less than or equal to 50% compared to the full capacity of a new battery.
Page 163
Troubleshooting Message Possible causes Possible solutions Identical unit & bed A patient monitor with the Disconnect the patient monitor that name noticed identical unit and bed name is has the identical unit and bed name. on the network. Change the unit and bed name of the duplicate patient monitor unit and bed name.
Page 164
CARESCAPE Monitor B650 Message Possible causes Possible solutions Service Monitor The CPU timekeeper battery is Replace the CPU timekeeper battery. Error Code empty. 0xHOST1100 External alarm 1. The USB cable between the 1. Reconnect the USB cable. light disconnect. patient monitor and the...
Page 165
Troubleshooting Message Possible causes Possible solutions Service Monitor Software activation failed. Reactivate software. If that does not Activation Failed help, reinstall the software and then reactivate it. Setting activation failed. Reactivate settings. • Module Log in to Webmin and select One of the supply voltages voltage low Diagnostics >...
CARESCAPE Monitor B650 11.8 Problems and solutions Start-up failures 11.8.1 Problem Possible causes Recommended actions Failure to turn on the patient Power cord is loose. Ensure that the power cord is connected properly monitor, when the following to the wall outlet and to the patient monitor.
Page 167
Troubleshooting Problem Possible causes Recommended actions Unable to turn on the patient Battery Empty Check the battery charge status, see section “6.1.1”. monitor when it is powered Charge or replace the battery. from the monitor battery. Battery Failure or missing Check the status of the battery charge/failure The patient monitor is not battery.
Page 168
CARESCAPE Monitor B650 Problem Possible causes Recommended actions Unable to turn on the patient Faulty DC/DC board. The The +12V voltage created by the DC/DC board is monitor: DC/DC board does not used only for LCD display backlight and for the supply the +12V for the optional recorder.
Troubleshooting Problem Possible causes Recommended actions Unable to turn on the patient 1. uDOM is missing or 1) Ensure that the uDOM is properly connected and monitor: loose. aligned to the connector in the CPU board. 2. uDOM software is The patient monitor 2) Replace uDOM.
Page 170
CARESCAPE Monitor B650 Trim Knob (only) is inoperative. Trim Knob cable loose. Connect Trim Knob encoder cable to the user interface board. Trim Knob encoder faulty. Replace the Trim Knob encoder. Hard keys or the power Keypad is faulty Replace keypad.
Troubleshooting Audible alarms do not work. Audible alarms are turned off Enable audible alarms. (See Alarms Setup > Audible & Visual.) Alarm volume is low. Adjust alarm volume (Monitor Setup > Sound Volumes). Speaker failure Replace the speaker unit. Speaker cable loose or faulty. Check that the speaker cable is intact and properly connected.
CARESCAPE Monitor B650 11.8.4 License issues Problem Possible cause Recommended action Unable to perform a function or A license has not been See License management chapter. a feature is not available. purchased for the feature. The trial license has expired for the feature.
Troubleshooting 11.8.5 Recorder issues Problem Possible cause Recommended action Recorder does not work. Graph location is not configured Check the configuration: Monitor Setup > correctly. Printing > Devices > Setup. Recorder board failure. Check the status of the +5 V REC and +12 V REC voltages, see section “11.3.1”...
Page 174
CARESCAPE Monitor B650 E-module issues Possible cause Recommended action Incompatible module Refer to the patient monitor’s supplemental information manual document to see the list of compatible modules. DC/DC board failure The supply voltages for the E-module interface board are generated in the DC/DC board.
Page 175
Troubleshooting Possible cause Recommended action CPU board failure The RS-485 communication for the E-modules is managed by the EMBC section of the CPU board. Check EMBC Frame logs for possible EMBC failures, see section “11.3.4”. If the cause is none of the above, the problem is most likely in the CPU board.
CARESCAPE Monitor B650 Possible cause Recommended action Hinge flex board is loose or faulty. Check that the hinge flex board is intact and properly mounted to the CPU board and to the module frame flex board. (PDM is connected to the PDM docking station) Module frame flex board faulty.
CARESCAPE Monitor B650 11.8.8 S/5 Network communication issues Check the following things before proceeding with any detailed network troubleshooting: • Check status of the wired and wireless network connection indicators and the WLAN signal strength indicator, for reference see “3.7”.
Page 181
Troubleshooting Wireless S/5 network Problem Possible cause Recommended action • Contact the hospital IT No wireless connection - the Patient monitor is out of wireless department to check the patient monitor does not coverage area. wireless coverage area. associate/authenticate with the Access Point, see section •...
Page 182
CARESCAPE Monitor B650 For your notes: 2062973-002...
Disassembly and reassembly 12 Disassembly and reassembly 12.1 Disassembly guidelines Field repair of the patient monitor is limited to replacing Field Replaceable Units (FRUs). See chapter 13. Service parts for a detailed list of available FRUs. Attempting a field repair on a printed circuit board, or a factory sealed component or assembly could jeopardize the safe and effective operation of the monitor.
CARESCAPE Monitor B650 • GE recommends using the new fasteners (screws, washers, etc.) in the FRU kits rather than reusing the old fasteners. Some fasteners are not intended to be re-used more than three times. • Use only new screws when attaching parts into light metal parts. Before fastening a screw, turn it counterclockwise until it drops into an existing thread pattern.
Page 185
Disassembly and reassembly WARNING ELECTRIC SHOCK - Always unplug the grounded cables when not in use. Leaving them connected could result in an electric shock from the ground contact in the other end. On/standby Turn the monitor off from the button.
Disassembly and reassembly 12.2 Module frame disassembly 12.2.1 Detaching the module frame front cover A) Monitors with the E-module option 1. Press down the Module Frame release knob and turn the Module Frame to a 90° angle, so that the Module Frame faces to the front. 2.
Page 188
CARESCAPE Monitor B650 B) Monitors without the E-module option 1. Press down the Module Frame release knob and turn the Module Frame to a 90° angle, so that the Module Frame faces to the front. 2. Release the two snaps on the top of the cover...
Page 189
Disassembly and reassembly 4. Shift the front cover slightly down and to the left by pulling the hole in the bottom plate to release the two snaps on left side and one on the right side of the front cover. 5.
CARESCAPE Monitor B650 12.2.2 Detaching the Recorder Unit Disassemble first: 12.2.1. Detaching the module frame front cover 1. Open the recorder door and remove the paper roll if installed. 2. Unscrew the two crosshead screws inside the recorder. Note that the screws cannot be removed.
Disassembly and reassembly When reassembling, the recorder unit can be installed into the Module Frame as a whole. NOTE: Ensure that the recorder unit is firmly installed to the recorder connector and both snaps in the EMC cover lock properly. 12.2.3 Detaching the PDM docking mechanism Disassemble first: 12.2.1.
CARESCAPE Monitor B650 12.2.4 Detaching the Module Frame cover unit Disassemble first: 12.2.1. Detaching the module frame front cover 12.2.3. Detaching the PDM docking mechanism, if installed. 1. Release the two snaps inside the holes of the frame cover using a flat blade screwdriver.
Disassembly and reassembly 12.2.5 Detaching the E-module Interface Board Disassemble first: 12.2.1. Detaching the module frame front cover 12.2.3. Detaching the PDM docking mechanism 12.2.4. Detaching the Module Frame cover unit 1. Detach the Module Frame back plate. Release the snaps with a flat blade screwdriver and detach the plate.
Disassembly and reassembly 12.3 Main unit disassembly 12.3.1 Replacing the mains fuses The mains fuses are situated on the back of the monitor, below the mains connector. 1. Lever the screwdriver against the cable holder to release the fuse holder and pull it out of the frame.
CARESCAPE Monitor B650 12.3.2 Detaching the Interface Board 1. Detach the Interface Board cover plate from the frame by releasing the snaps with a flat blade screwdriver. 2. Remove the six T10 screws that hold the Interface Board to the main unit.
Disassembly and reassembly 12.3.3 Detaching the Frame Side Housing Decorations NOTE: Be careful not to damage the decoration while disassembling. 1. To detach the Right Frame Housing Decoration: Release the snaps at the bottom part of the decoration with a flat blade screwdriver. Lift the decoration a little more to release the rest of the snaps and detach the decoration.
CARESCAPE Monitor B650 12.3.4 Detaching the Top Cover 1. Press down the Module Frame release knob and turn the Module Frame to a 90° angle, so that the Module Frame slot faces to the front. 2. Remove the T10 screw located behind the Module Frame.
Disassembly and reassembly 12.3.5 Disassembling the main unit into Rear and Front units Disassemble first: 12.3.2. Detaching the Interface Board 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 1. Set the monitor lying on its back and remove the two screws (T10) from the bottom.
Page 200
CARESCAPE Monitor B650 7. Pull the Front Unit away from the rear unit just enough so that you can detach the DC/DC cable from the DC/DC Board. NOTE: When reassembling, check that the cable is connected properly. 8. Detach the rear unit from the Front Unit.
Disassembly and reassembly 12.3.6 Detaching the uDOM Disassemble first: 12.3.2. Detaching the Interface Board 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 12.3.5. Disassembling the main unit into Rear and Front units 1. Detach the uDOM from the CPU connector. NOTE: uDOM, disk on module is the permanent memory of the patient monitor.
CARESCAPE Monitor B650 12.3.7 Replacing the CPU timekeeper battery Disassemble first: 12.3.2. Detaching the Interface Board 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 12.3.5. Disassembling the main unit into Rear and Front units 1. Detach the CPU timekeeper battery from the CPU board with a flat blade screwdriver.
Disassembly and reassembly 12.3.8 Detaching the DC/DC board Disassemble first: 12.3.2. Detaching the Interface Board 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 12.3.5. Disassembling the main unit into Rear and Front units 1. Disconnect the Battery cable and the Inverter cable from the DC/DC Board.
CARESCAPE Monitor B650 12.3.9 Detaching the CPU Board Disassemble first: 12.3.2. Detaching the Interface Board 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 12.3.5. Disassembling the main unit into Rear and Front units 12.3.8. Detaching the DC/DC board 1.
Disassembly and reassembly 12.3.10 Detaching the AC/DC board and rear unit assembly Disassemble first: 12.3.2. Detaching the Interface Board 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 12.3.5. Disassembling the main unit into Rear and Front units 1.
CARESCAPE Monitor B650 6. Remove the four T10 screws mounting the AC/DC board to the back plate. [Torque 1.6 Nm] Hold the AC/DC board to prevent it from falling. Reassemble in reverse order. Attach the 4 screws that mount the AC/DC board [Torque 1.6 Nm].
Page 207
Disassembly and reassembly 1. Disconnect from the CPU board: the Sync cable the Loudspeaker cable 2. Disconnect from the DC/DC Board: the Battery cable DCDC 3. Remove the five T10 screws with washer insulators mounting the Base Unit to the mid-frame.
Page 208
CARESCAPE Monitor B650 Reassemble in reverse order. NOTE: Pay attention to the cables when reassembling. Check that they go through the right holes in the mid-frame when attaching the Base Unit. Be especially careful to check the loudspeaker cable (see the figure).
Disassembly and reassembly 12.4 Front Unit Assembly 12.4.1 Detaching the Front Unit Assembly Disassemble first: 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 1. Remove the T10 screw at the bottom of the frame. [Torque 0.6 Nm] 2062973-002...
Page 210
CARESCAPE Monitor B650 2. Remove the four T10 screws in the top and bottom corners behind the Display Unit. [Torque 0.6 Nm] 3. Release the two snaps, one on each side of the monitor. The snaps are located in the...
Disassembly and reassembly 12.4.2 Detaching the LCD Display Unit Disassemble first: 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 12.4.1. Detaching the Front Unit Assembly 1. Remove the four T10 screws with washers, two on both sides of the LCD Display and detach the display from the frame.
Page 212
CARESCAPE Monitor B650 NOTE: To get access to detach the cables, you may have to lift the LCD display as showed in the pictures. • Reassemble in reverse order. NOTE: Do not leave any dust or dirt between the LCD Display and the plastic display cover, or the picture quality might deteriorate.
Disassembly and reassembly 12.4.3 Replacing the User Interface Board Disassemble first: 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 12.4.1. Detaching the Front Unit Assembly 1. Detach 2 screws and the PCB mounting parts. 2. Detach cables from User Interface Board: the Alarm Board cable Trim Knob encoder...
CARESCAPE Monitor B650 12.4.5 Replacing the Keypad 1. Pull the Trim Knob off. 2. Tear the Keypad panel from the Front Unit, starting from the upper left corner. NOTE: Try to leave as little glue as possible to the front frame cover. If any glue remains clean the surface with water-diluted alcohol.
Disassembly and reassembly 12.4.6 Replacing the Front Unit Assembly FRU Disassemble first: 12.3.3. Detaching the Frame Side Housing Decorations 12.3.4. Detaching the Top Cover 12.4.1. Detaching the Front Unit Assembly 12.4.3. Replacing the User Interface Board 12.4.4. Replacing the Trim Knob and Trim Knob Encoder 12.4.5.
CARESCAPE Monitor B650 12.4.7 Replacing the WLAN Assembly FRU Disassemble first: 12.3.4. Detaching the Top Cover 1. Attach the WLAN card to the CPU board card slot as shown in the picture. NOTE: Be careful not to bend the antenna boards or damage the antenna cables.
Page 217
Disassembly and reassembly NOTE: Place the antenna cables carefully as shown in the pictures. Reassemble the Top Cover. Grease the rubber gasket of Top Cover to reassemble it smoothly. 2062973-002...
Page 218
CARESCAPE Monitor B650 For your notes: 2062973-002...
Service parts 13 Service parts NOTE: Perform the checkout procedure steps described in chapter 10. Maintenance and checkout after you have replaced any service parts. 13.1 Ordering parts To order parts, contact GE. Contact information is available at www.gehealthcare.com. Make sure you have all necessary information at hand.
Page 220
CARESCAPE Monitor B650 FRU/Item part FRU/Item description FRU content number M1168225 FRU, Front Unit Assy for Touchscreen Includes front unit assembly with touchscreen sensor, alarm light lens, board & cable, buzzer Model, B650 unit and 7 mounting screws. Includes also 2 WLAN mounting tapes to re-mount antenna boards.
Page 221
Service parts FRU/Item part FRU/Item description FRU content number M1168233 FRU, CPU Board w/o uDOM, B650 Includes CPU timekeeper battery (CR-1632) and 9 mounting screws. Excludes the USB Disk on Module (uDOM) with software and all cables. M1168350 FRU, CPU Timekeeper Battery (5 pcs), CR-1632 lithium battery B650 M1168312...
Page 222
CARESCAPE Monitor B650 FRU/Item part FRU/Item description FRU content number M1168340 FRU, Plastics Kit, B650 Includes the following plastic parts: Module frame back plate Right frame housing decoration Left frame housing decoration Top cover Alarm lens Battery door unit Cable clamp for power cord (w. spring)
Page 223
Service parts FRU/Item part FRU/Item description FRU content number M1178195 FRU, Keypad for Non-Touchscreen Includes the membrane keypad and the language specific keypad panel (14 keys) model, PL, B650 M1178196 FRU, Keypad for Non-Touchscreen Includes the membrane keypad and the language specific keypad panel (14 keys) model, RU, B650 M1178200...
Page 224
CARESCAPE Monitor B650 For your notes: 2062973-002...
Page 225
Installation check form APPENDIX A: Installation check form CARESCAPE Monitor B650 Customer Monitor type B650- Service record # Software version Service engineer Prior to testing verify all equipment is calibrated via “Cal” labeling and record Cal Due Dates Measuring equipment / test gases used:...
Page 226
CARESCAPE Monitor B650 b.) Impedance of protective earth without power cord ≤ 0.1 ohms connection ≤ 0.2 ohms with power cord Earth leakage current test EN /IEC Normal Condition (NC) Polarity: Normal ≤ 500 µA ≤ 300 µA Single Fault Condition (SFC) Polarity: Normal ≤...
Page 227
Installation check form Module type Observed result Acceptance PASS N.A. FAIL criteria Patient (source) leakage current tests, using a test body Normal Condition (NC) Polarity: NORMAL ≤ 10 µA ≤ 50 µA Single Fault Condition (SFC) Ground closed (normal) Ground open (normal) ≤...
Page 228
CARESCAPE Monitor B650 Functional check Observed result Acceptance criteria PASS N.A. FAIL IX printers Test page is printed to the selected printer. Insite with EXC The patient monitor is active on Insite with EXC back office. Test completion Notes Used service parts...
Page 229
Maintenance check form APPENDIX B: Maintenance check form CARESCAPE Monitor B650 Customer Monitor type B650- Service record # Software version Service engineer Module type Start date Planned maintenance Corrective maintenance Prior to testing verify all equipment is calibrated via “Cal” labeling and record Cal Due Dates...
Page 230
CARESCAPE Monitor B650 Single Fault Condition (SFC) Polarity: Normal ≤ 1 mA ≤ 1 mA Polarity: Reversed Normal Condition (NC) Polarity: Reversed EN /IEC ≤ 500 µA ≤ 300 µA Enclosure leakage current (touch current) test Normal Condition (NC) Polarity: Normal ≤...
Page 231
Maintenance check form Functional check Observed result Acceptance criteria PASS N.A. FAIL IX printers Test page is printed to the selected printer. Insite with EXC The patient monitor is active on Insite with EXC back office. Recorder The header line contains the correct information.
Page 232
CARESCAPE Monitor B650 For your notes: B - 4 (4) 2062973-002...
Page 233
Verification procedure for wireless MC Network infrastructure APPENDIX C: Verification procedure for wireless MC Network infrastructure Purpose and scope The purpose of this verification procedure is to test the operation of the wireless network infrastructure with a wireless CARESCAPE monitor, the transport monitor. To verify the operation, you move the transport monitor throughout the predetermined wireless coverage area and observe that a constant ECG waveform from a stationary wired patient monitor is displayed in the bed-to-bed view of the wireless CARESCAPE monitor during...
Page 234
CARESCAPE Monitor B650 Documentation about the Wireless LAN infrastructure: • GE WLAN pre-quote questionnaire with all applicable attachments. • Wireless LAN design documentation, including site survey results. Test plan Each wireless installation is unique. As it is often impractical and uneconomical to verify the...
Page 235
Verification procedure for wireless MC Network infrastructure Test setup The patient monitors and the CIC Pro shall be installed, configured and tested to operate in the same MC Network. CIC Pro: • Configure the CIC to capture full disclosure data from the wireless CARESCAPE monitor. Refer to CIC Pro Clinical Information Center Service Manual and CIC Pro Clinical Information Center Operator's Manual for detailed instructions.
Page 236
CARESCAPE Monitor B650 Configuring the patient simulator: Refer to the simulator documentation for details on how to use and configure the simulator. Configure the patient simulator to output ECG waveform with: − ECG rhythm: a normal sinus rhythm − Heart rate: 80 bpm −...
Page 237
Verification procedure for wireless MC Network infrastructure • Take a snapshot of the refreshed WLAN Diagnostics screen, for example, by printing it to a file. Move the roll cart to the following test point along the walking path and repeat the step 2 at each test point until you have completed the test plan.
Page 238
CARESCAPE Monitor B650 Test Form Observations Test point # Time (hh:mm:ss) RSSI (dBm) Transmit rate (Mbps) Observations Test summary and recommended actions Date & time of testing Signature C - 6 (6) 2062973-002...
Page 240
Headquarters Asia Headquarters GE Medical Systems GE Medical Systems GE Healthcare Finland Oy Information Technologies, Inc. Information Technologies Asia; GE (China) Co., Ltd. Kuortaneenkatu 2 8200 West Tower Avenue No1 Huatuo Road, FI-00510 Helsinki Milwaukee, WI 53223 USA Zhangjiang Hi-tech Park Pudong...
