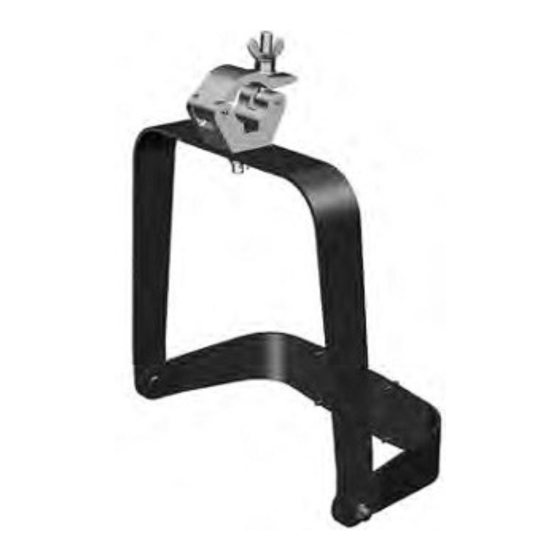

TRUSS-CLAMP MOUNT 8260-465B for GENELEC 8260A
instruction manual
1. setup
1.
The TRUSS-CLAMP
1.
is ready for set up.

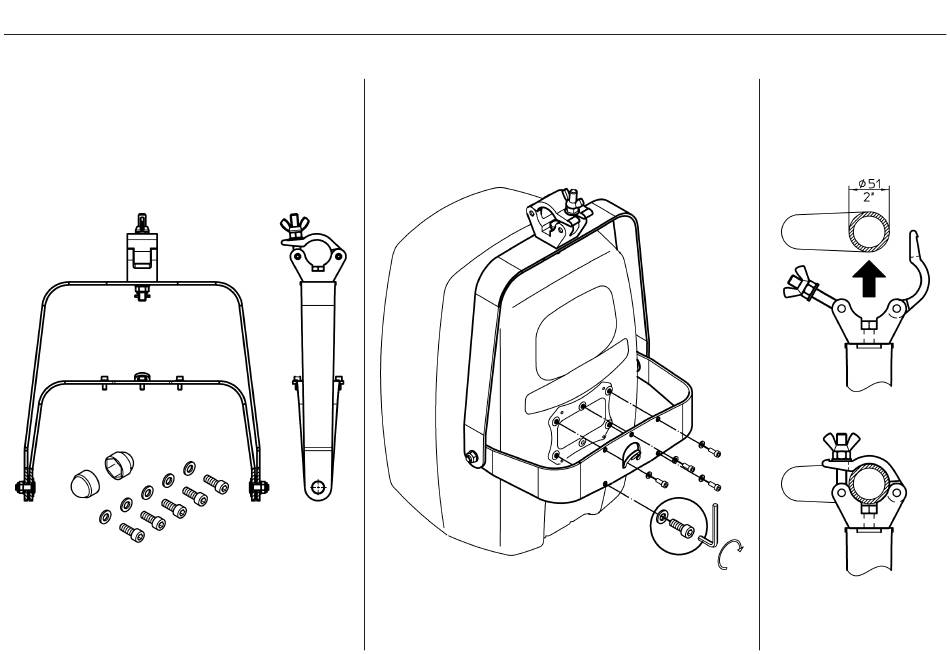

2. monitor mounting
2.
Bolt together GENELEC 8260A and bracket.
2.
Screw in five bolts M6x16 with washers.
2.
Use an allen wrench SW5.
easy handling,
adjustable direction and angle
3. truss mounting
3.
Tighten truss clamp to adequate
3.
frame tube (2" / ø 51 mm).
3.
Use washer, hexnut M12 and the
3.
wing nut to secure the assembly.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Genelec 8260-465B
Summary of Contents for Genelec 8260-465B
- Page 1 TRUSS-CLAMP MOUNT 8260-465B for GENELEC 8260A easy handling, adjustable direction and angle instruction manual 1. setup 2. monitor mounting 3. truss mounting The TRUSS-CLAMP Bolt together GENELEC 8260A and bracket. Tighten truss clamp to adequate is ready for set up.
-
Page 2: Safety Instructions
TRUSS-CLAMP MOUNT 8260-465B for GENELEC 8260A easy handling, adjustable direction and angle instruction manual 4. settings 5. overhead suspension Safety Rope: TILT ANGLE DIRECTION See VBG-document - Loosen both lateral hexagon locking-nuts - Loosen central hexagon locking-nut BGI 810-3 - Incline 8260A into desired angle - Turn 8260A into desired direction >hanger assembly<...
