Soldering iron unit
Instruction Manual
Thank you for purchasing the HAKKO FU-600 soldering station.
Please read this manual before operating the HAKKO FU-600.
Keep this manual readily accesible for reference.

TABLE OF CONTENTS

...................................................... 1
................................................. 1
....................................................... 3
...................................................... 5
......................................................... 8
......................................12
...................................................15
..................................17
...........................................18
...........................19
.............................................. 22
........................................................ 22
............... 2
................. 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FU-600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hakko Electronics FU-600

  • Page 1: Table Of Contents

    Soldering iron unit Instruction Manual ● Thank you for purchasing the HAKKO FU-600 soldering station. Please read this manual before operating the HAKKO FU-600. Keep this manual readily accesible for reference. ● TABLE OF CONTENTS 1. PACKING LIST ............1 2.
  • Page 2: Packing List

    1. PACKING LIST Please check to make sure that all items listed below are included in the package. HAKKO FU-600 Iron cable ............. 1 ............. 1 HAKKO FU-6001 (HAKKO FU-6002) Connecting cable ......1 ..........1 Flux protector Power cord ..............
  • Page 3: Warnings, Cautions And Notes

    ●Children should be supervised to ensure that they do not play with the appliance. ●The unit is for a counter or workbench use only. ●To prevent accidents or damage to the HAKKO FU-600, be sure to observe the following. CAUTION ●Do not use the HAKKO FU-600 for applications other than soldering.
  • Page 4: Part Names

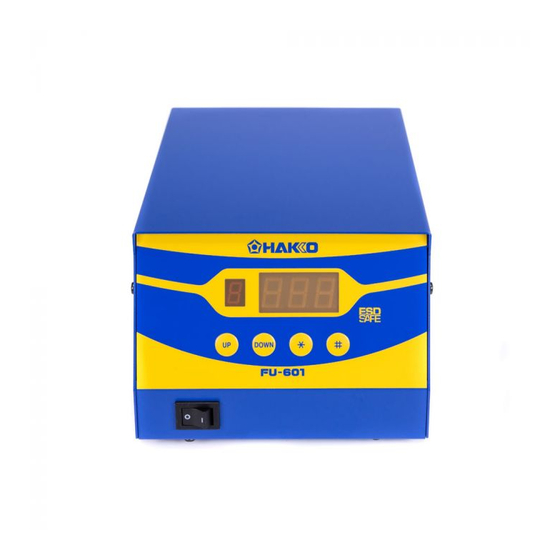

    4. PART NAMES ●HAKKO FU-600 Preset number display Setting display DOWN Control button Power switch Fuse Connecting cable connector Receptacle...
  • Page 5 ●HAKKO FU-6001 Positioning screw ① Flux protector Tip lock screw Fixing screw Positioning screw ② CAUTION Do not touch any screws than the hexagon socket head cap screws described in this manual.
  • Page 6: Initial Setup

    Pin No. Signal name Function Iron GND Outgoing data Incoming data Recommended Iron_Ready signal connection diagram Iron_Ready HAKKO FU-600 Ready signal Iron_GND HAKKO FU-600 GND Iron_Vcc Iron_GND Iron_Vcc HAKKO FU-600 Vcc (5V) Iron_Ready External equipment ●How to attach the tip...
  • Page 7 ●How to position the tip 1. To turn the shaft of the tip, loosen the positioning screw ①. To move the soldering iron in the longitudinal direction, loosen the positioning screw ②. Tighten the screws after determining the tip position balancing with your work object. ①...
  • Page 8 4. Place the HAKKO FU-6001 on the iron unit fixing assembly and tighten the two screws.   Tighten ●Installing the iron to the feeder unit Tighten the feeder unit set screws as shown in the figure below. Now you can install the HAKKO FU-6001 to the feeder unit. size:M3×30 ●How to position the tip after replacement After replacement, you need to position the tip.
  • Page 9: Operation

    6. OPERATION DOWN The HAKKO FU-600 has the following four control buttons. When press for less than one second, enters preset number selection screen. When press and hold for at least one second, enters preset temperature changing screen. Increase the value in the appropriate display window.
  • Page 10 Changing temperature setting CAUTION The temperature range is from 50 to 500℃. ( 120 to 930℉) ●If you enter a value outside the temperature setting range, the display returns to the hundreds  digit, and you have to enter a correct value. Example:350 to 400℃...
  • Page 11 Selecting the preset number You can call up the preset temperature by pressing the buttons. Initial preset temperature is 0:300℃, 1:350℃, 2:375℃, 3:400℃, 4:450℃ and 5:500℃. Example:preset number1 (350℃) to No.3 (400℃) 1. Press the button once.   Preset number display will begin to flash. 2.
  • Page 12 Entering the tip offset value Example:If the measured temperature is 410℃ and set temperature is 400℃, the difference is -10℃. (need to decrease by 10℃) So, enter the figure which 10 is deducted from present offset value. 1. Press and hold the button for at least one second.
  • Page 13: Parameter Setting

    7. PARAMETER SETTING Parameter number Value Parameter name Initial value ℉ ( ) / ℃ ( ) Temperature display ℃ Low temperature error setting 150℃ 30 - 150℃ (54 - 270℉) Buzzer setting Off ( ) / On ( ) On ( ) (S-E sound , C-E sound) Buzzer setting...
  • Page 14 ●05:S-E, C-E buzzer sound setting In the buzzer setting mode, which sets whether to sound the buzzer when a sensor error or soldering iron error occurs, either is displayed.    :The buzzer does not sound when error occurs.    :The buzzer sounds when error occurs. ●06:Set temperature achieving alert setting In the set temperature alert setting mode, either is displayed.
  • Page 15 ・ If you enter the password incorrectly twice in a row, the display will return to the previous display. ●20:Ready signal delay time You can set the delay time after the HAKKO FU-600 gets ready (ie., the temperature of the tip reaches the set value) until the Iron Ready signal becomes on.
  • Page 16: Maintenance

    High temperatures shorten tip life and may cause thermal shock to components. Always use the lowest possible temperature when soldering. The excellent thermal recovery characteristics of the HAKKO FU-600 ensures effective soldering at low temperatures. 2. Cleaning Always clean the soldering tip before use, to remove any residual solder or flux adhering to it by using a tip cleaner.
  • Page 17 ●The HAKKO FU-6001 maintenance After the HAKKO FU-6001 is used for soldering, the unit (particularly the flux protector) is heavily deposited with flux. If you insert a tip into the unit with flux deposit in or around the hole of the flux protector, the flux may be entrained into the hole and deposit on the terminal of the HAKKO FU-6001, causing poor contact (sensor error).
  • Page 18: Checking Procedure

    9. CHECKING PROCEDURE WARNING Unless otherwise directed, carry out these procedures with power switch OFF and the power UNPLUGGED. ■Check for a broken heater or sensor Verify the electrical integrity of the heater and sensor. Measure the resistance of the heater and sensor while at room temperature (15℃ to 25℃; 59 to 77℉) It should be 4Ω±10%.
  • Page 19: Error Messages

    10. ERROR MESSAGES CAUTION If any of the errors occur, the Ready signal output to the HAKKO FU-500 will be “Not Ready”. ●Sensor error When there is possibility that a failure has occured in the sensor or heater (including the sensor circuit), is displayed and a buzzer sounds.
  • Page 20: Trouble Shooting Guide

    11. TROUBLE SHOOTING GUIDE ●The unit does not operate when the power switch is turned ON. CHECK : Is the power cord and/or the connection plug disconnected? ACTION : Connect it. CHECK : Is the fuse down? ACTION : Investigate why the fuse blew and then replace the fuse. If the fuse blows again, send the unit in for repair.
  • Page 21 ●The low-temperature alarm tolerance error is displayed. CHECK : Is the tip too small for the items to be soldered? ACTION : Use a tip with a larger thermal capacity. CHECK : Is the setting value for the low-temperature alarm tolerance too low? ACTION :...
  • Page 22: Dimensional Outline Drawing

    12.DIMENSIONAL OUTLINE DRAWING HAKKO FU-6001 connected to the feeder unit ※ Back view of A ※ Connected to the feeder unit for φ1.2-1.6mm HAKKO FU-6001 disconnected 2 mounting holes Φ4.2 Through Φ8 Counterbore 5 Deep ※ ※ The dimension can be adjusted in range of ±5mm.
  • Page 23: Exploded View

    13. EXPLODED VIEW ●HAKKO FU-600 ●HAKKO FU-6001 14. PARTS LIST For more information about replacement parts or latest information , please visit our website (http://www.hakko.com) or HAKKO Document Portal. (see below) ② Item No. Part No. Part Name Specifications ①...
  • Page 24 TIP STYLES Unit:mm (in.) (0.32) (3.43) TX1-XD Shape-XD TX1-XD08 Shape-0.8XD TX1-XD16 Shape-1.6XD (0.02) (0.02) (0.02) (0.47) (0.47) (0.47) (0.28) (0.28) (0.28) TX1-XD24 Shape-2.4XD TX1-XD3 Shape-3XD (0.03) (0.04) (0.47) (0.47) (0.28) (0.28) TX1-XBCR2 Shape-2XBCR TX1-XBCR3 Shape-3XBCR TX1-XBCR4 Shape-4XBCR (0.28) (0.28) (0.28) (0.47) (0.47) (0.47) TX1-XDR Shape-XDR TX1-XDR16 Shape-1.6XDR TX1-XDR24 Shape-2.4XDR (0.47) (0.47) (0.47) (0.28) (0.28)

This manual is also suitable for:

Fu-601

Table of Contents
