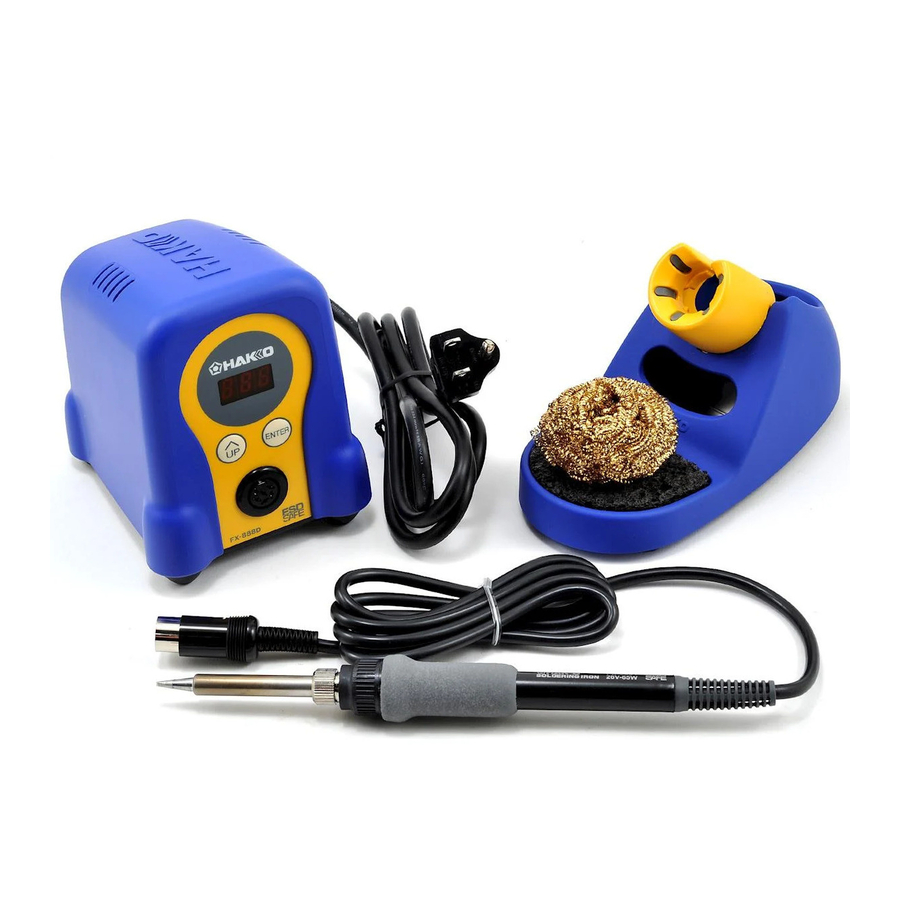

Hakko Electronics FX-888D Manual
  1. Manuals
  2. Brands
  3. Hakko Electronics Manuals
  4. Power Tool
  5. FX-888D
  6. Manual

Hakko Electronics FX-888D Manual

Hide thumbs Also See for FX-888D:

Advertisement

Quick Links

Download this manual
•
Digital model in an analog-model price bracket
•
Features adjustment mode, preset mode, and password function
•
Separable tip/heater design provides excellent value for money
•
Supports the N
Model No.
Power consumption 70W
Temperature range 200-480ºC
Temperature stability ±1ºC at idle temperature
・Station
Output voltage AC 26V
Dimensions 100(W)×120(H)×120(D)mm
Weight
1.2kg
・Soldering Iron
Power consumption
Tip to ground resistance <2
Tip to ground potential <2mV
Standard tip
Heating element
Cord length
Total length
Weight
* Length and weight (w/o cord)
system.
2
FX888D
65W (26V)
Shape-B (No.T18-B)
Ceramic heater
1.2m
217mm (with B tip)
46g (with B tip)
Soldering iron

Advertisement

loading
Need help?

Need help?

Do you have a question about the FX-888D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hakko Electronics FX-888D

Summary of Contents for Hakko Electronics FX-888D

  • Page 1 Soldering iron • Digital model in an analog-model price bracket • Features adjustment mode, preset mode, and password function • Separable tip/heater design provides excellent value for money • Supports the N system. Model No. FX888D Power consumption 70W Temperature range 200-480ºC Temperature stability ±1ºC at idle temperature ・Station Output voltage AC 26V...
  • Page 2 • Heater output has been increased by 30% compared to that of the conventional models HAKKO 936・937. Also FX-888D delivers excellent thermal recovery by using T18 series tips for their terrific heat conductivity. This allows soldering at a lower set temperature and reducing the thermal impact on components as well as tip oxidation that can shorten tip life.
  • Page 3 Designed to be User-Friendly • Small footprint Compact station body requires a space of only 100 (W) x 120 (D) mm. What’s more, points that come into contact with the floor are positioned as close to the outer edge of the body as possible to improve stability and make the station difficult to fall over.
  • Page 4 Strict temperature management • Digital display The FX-888D’s digital display makes it easy to check the set temperature at a glance. • Password function Settings can be locked using a password to prevent them from being changed unexpectedly. Of course, it is possible to restrict all setting changes or prevent users from switching to particular modes.
  • Page 5 Measuring tip temperature with a tip thermometer (HAKKO FG-100) HAKKO FX-8802 (nitrogen) gas system A space-saving N2 system. Anti-oxidation and pre-heating significantly improve solderability. —Example Configuration (N System) Soldering station, Iron holder, N2 gas generator, and N2 flowmeter must be purchased separately. HAKKO FX-8803 One-hand, manual-solder-feed iron...
  • Page 6 — Example Configuration (One-hand, Manual-Solder-Feed System) Soldering station and Iron holder must be purchased separately. HAKKO FX-8804 Hot tweezers —Example Configuration (Hot Tweezer System) Soldering station, cap, and Iron holder must be purchased separately. How to remove the bottom plate. 1.
  • Page 7 3. Remove the solder waste in the bottom plate. T18 Series Shape BC/C T18-C05 Shape-0.5C T18-C08 Shape-0.8C T18-C1 Shape-1C T18-C2 Shape-2C...
  • Page 8 T18-C3 Shape-3C T18-C4 Shape-4C T18-C5 Shape-5C T18-CF1 Shape-1CF Tinned cut surface only T18-CF15 Shape-1.5CF Tinned cut surface only T18-CF2 Shape-2CF Tinned cut surface only T18-CF3 Shape-3CF Tinned cut surface only T18-CF4 Shape-4CF...
  • Page 9 Tinned cut surface only T18-CSF25 Shape-2.5CSF This type has good heat transfer with short tip end design, tinned cut surface ony. T18-S6 Shape-S6 Shape B T18-B Shape-B T18-BL Shape-BL T18-S4 Shape-S4 T18-SB Shape-SB...
  • Page 10 Shape D T18-D08 Shape-0.8D T18-D12 Shape-1.2D T18-D16 Shape-1.6D T18-D24 Shape-2.4D T18-D32 Shape-3.2D T18-DL12 Shape-1.2DL T18-DL2 Shape-2DL...
  • Page 11 T18-DL32 Shape-3.2DL T18-S3 Shape-S3 T18-S9 Shape-S9 Shape I T18-I Shape-I Shape J T18-BR02 Shape-0.2BR Shape K T18-K Shape-K...
