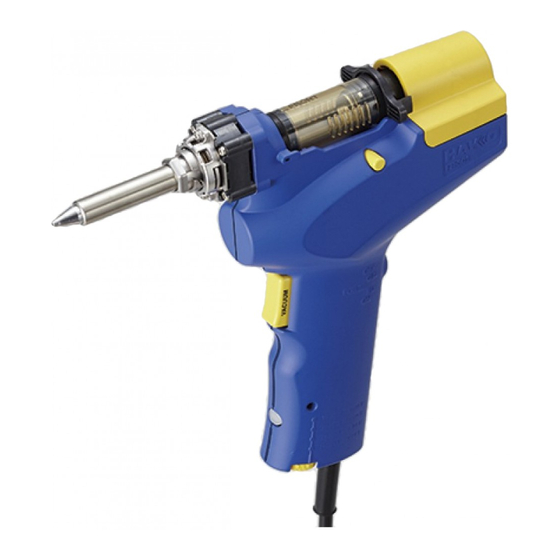

Hakko Electronics FR-301 Instruction Manual

Desoldering tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

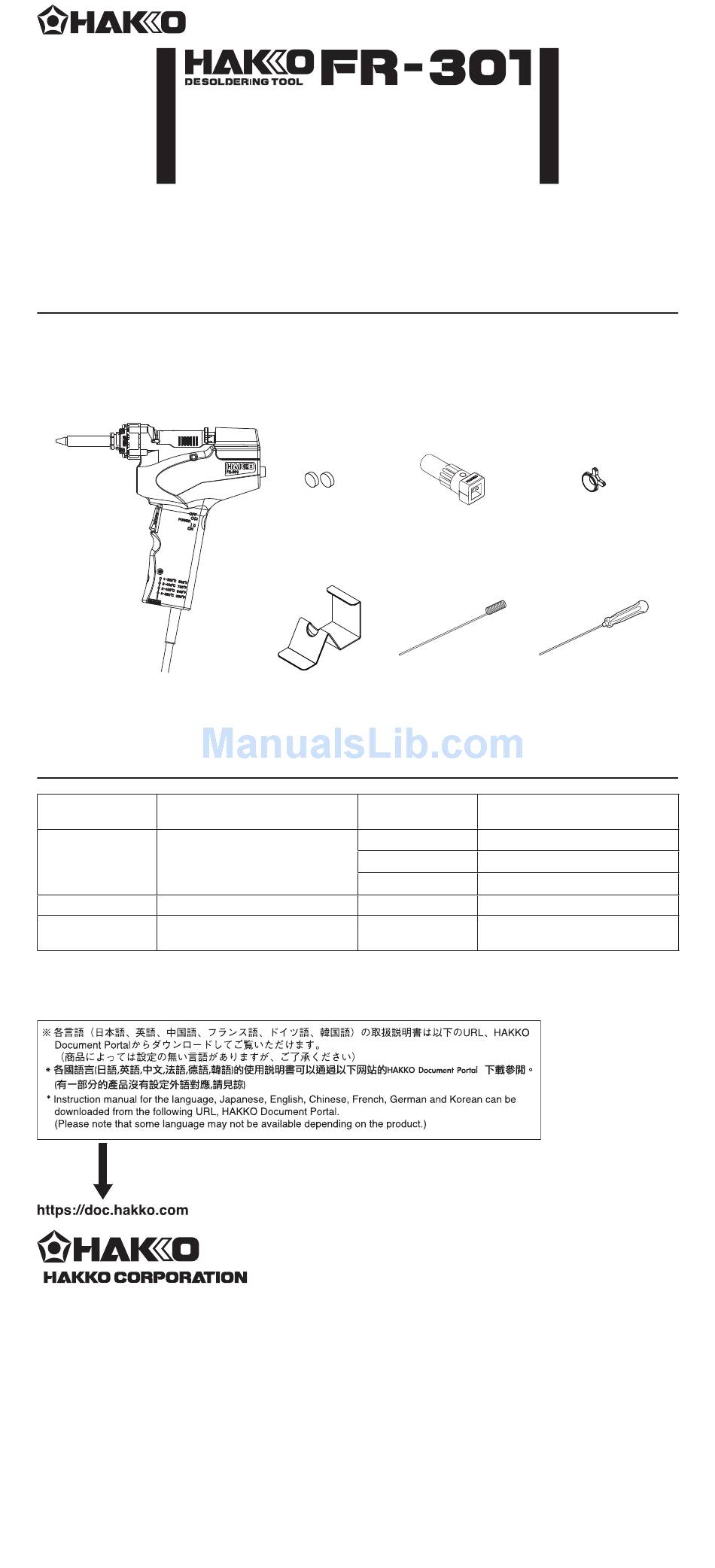

Thank you for purchasing the HAKKO FR-301 Desoldering Tool.
Please read this manual before operating the HAKKO FR-301.
1. PACKING LIST AND PART NAMES
HAKKO FR-301 .....................................................1
Ceramic paper filter (L) .........................................2
Nozzle wrench ........................................................1
Pre-filter ..................................................................1
HAKKO FR-301
2. SPECIFICATIONS
HAKKO FR-301
Part name
100V-98W (50/60Hz), 110V-122W
(50/60Hz), 120V-140W (60Hz),
Power supply
220V-100W (50/60Hz), 230V-110W
(50/60Hz), 240V-120W (50/60Hz)
350 to 500 °C (660 to 930 °F)
Temperature range
Nozzle to ground
<2 Ω
resistance
• The temperature was measured using the HAKKO FG-101 Station Tester.
• Specifications and design are subject to change without notice.
HEAD OFFICE
4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN
TEL:+81-6-6561-3225 FAX:+81-6-6561-8466
http://www.hakko.com E-mail:sales@hakko.com
OVERSEAS AFFILIATES
U.S.A.: AMERICAN HAKKO PRODUCTS, INC.
TEL: (661) 294-0090 FAX: (661) 294-0096
Toll Free (800)88-HAKKO
4 2 5 5 6
http://www.hakkousa.com
HONG KONG: HAKKO DEVELOPMENT CO., LTD.
TEL: 2811-5588 FAX: 2590-0217
http://www.hakko.com.hk
E-mail:info@hakko.com.hk
SINGAPORE: HAKKO PRODUCTS PTE., LTD.
TEL: 6748-2277 FAX: 6744-0033
http://www.hakko.com.sg
E-mail:sales@hakko.com.sg
Please access to the following address for the other Sales affiliates.
http://www.hakko.com
© 2017 HAKKO Corporation. All Rights Reserved.
Desoldering Tool
Instruction Manual
Please keep this manual readily accessible for reference.
Please check to make sure that all items listed below are included in the package.
Ceramic paper filter (L)
Iron holder
Iron holder ..............................................................1
Cleaning Pin (for ø1.0mm [0.04 in] nozzle) ............1
Cleaning Pin (for Heating Element) ........................1
Instruction manual (This manual) ...........................1
Nozzle wrench
Cleaning Pin
(for ø1.0mm [0.04 in]
nozzle)
Nozzle to ground
<2 mV
potential
Diaphragm pump
Vacuum generator
81 kPa (610 mmHg)
Vacuum pressure
11 L/min
Suction flow
215 (W) × 226 (H) mm/8.3 × 8.9 in.
Dimensions
0.52 kg/1.1 lb. with ø1.0 mm
Weight
[0.04 in] nozzle
Pre-filter
Cleaning Pin
(for Heating Element)
2017.9
MA02939XZ170928

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR-301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hakko Electronics FR-301

Summary of Contents for Hakko Electronics FR-301

  • Page 1 Desoldering Tool Instruction Manual Thank you for purchasing the HAKKO FR-301 Desoldering Tool. Please read this manual before operating the HAKKO FR-301. Please keep this manual readily accessible for reference. 1. PACKING LIST AND PART NAMES Please check to make sure that all items listed below are included in the package.

  • Page 2: Warnings And Cautions

    ● Do not modify the HAKKO FR-301. ● Use only genuine HAKKO replacement parts. ● Do not allow the HAKKO FR-301 to become wet, or use it when hands are wet. ● Be sure to hold the plug when inserting or removing the handpiece and power cords.

  • Page 3: Part Names

    4. PART NAMES Heating element Filter pipe Pump cover Nozzle Element cover assembly Release button Joint cover assembly Trigger Plug Power switch LED lamp Temp. control knob 5. OPERATION CAUTION The temperature of the nozzle end differs depending on the type of nozzles.

  • Page 4: Temperature Setting

    (4) Temperature setting The temperature of the HAKKO FR-301 can be adjusted between 350 - 500 °C/660 - 930 °F. Set the temperature in accordance with the requirements of the job being done. Although the temperature needed for desoldering cannot be determined merely by the type of board to be desoldered, the values in the table below may be used as a general guide.

  • Page 5: Replacing Parts

    (Continued) (1) A general guide to replacement part Use the table below as a general guide to replacement part. Use only genuine HAKKO FR-301 replacement parts as the use of other parts may impair performance, or cause damage or injury.
  • Page 6 6. MAINTENANCE (Continued) ● Pump Turn off the tool, remove the power plug from the power outlet and wait until the unit has cooled completely. 1. Loosen the screws on the back of the pump cover and remove the pump cover. 2.

  • Page 7: Troubleshooting

    7. TROUBLESHOOTING Calibrating the temperature 1. Install a new nozzle. The nozzle being used may have already High started to wear, so use a new nozzle. 2. Insert the power plug into the outlet. Use a flathead screwdriver to adjust 3.
  • Page 8 8. REPLACEMENT PARTS/OPTION Item No. Part No. Part Name Specifications A5046 100V–110V A5047 120V Heating element A5048 127V A5049 220V–240V B5063 Movable joint B5064 Wave spring B5062 Joint cover See section “■ NOZZLE Nozzle STYLES” on the next page. B5193 Element cover Item No.
  • Page 9 8.   REPLACEMENT PARTS/OPTION (Continued) ■ NOZZLE STYLES N61-01 N61-02 N61-03 N61-04 N61-05 N61-06 N61-07 N61-08 N61-09 N61-10 N61-11 N61-12 N61-13 N61-14 N61-15 N61-16...
  • Page 10 8.   REPLACEMENT PARTS/OPTION (Continued) Item No. Part No. Part Name Specifications B5197 Cover With screw B5018 Inner hose B5185 Filter pipe assembly B5198 Flange With screws B5201 Power switch B5021 Housing With screws B5025 Power cord, 3-wire cord & American plug B5026 Power cord, 3-wire cord &...
