Instruction Manual

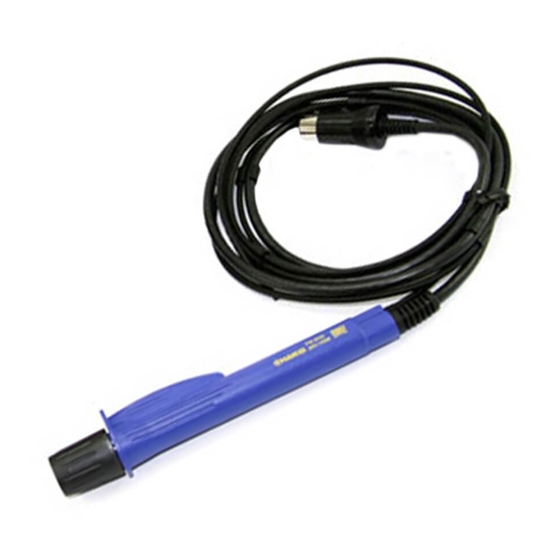

Thank you for purchasing the HAKKO FM-2029 Hot Air Handpiece.
Please read this manual before operating the HAKKO FM-2029.
Keep this manual readily accessible for reference.
HAKKO FM-2029 can not be operated by itself.
Read the instruction manual for the HAKKO FM-206
Rework System used in conjunction with the
HAKKO FM-2029.
SINGLE HOT AIR
CAUTION
TABLE OF CONTENTS
17
17
17
18
19
20
21
22
22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hakko Electronics FM-2029
Summary of Contents for Hakko Electronics FM-2029
- Page 1 SINGLE HOT AIR Instruction Manual Thank you for purchasing the HAKKO FM-2029 Hot Air Handpiece. Please read this manual before operating the HAKKO FM-2029. Keep this manual readily accessible for reference. CAUTION HAKKO FM-2029 can not be operated by itself.
-
Page 2: Packing List And Part Names
*This product is protected against electrostatic discharge. 3. COMPATIBLE STATIONS Use the HAKKO FM-2029 with the HAKKO FM-206 soldering station. Instruction manual in the language of Japanese, English, Chinse, French, German and Korean can be downloaded from the HAKKO Document Portal. -
Page 3: Warnings, Cautions, Notes And Examples
Do not allow the HAKKO FM-2029 to become wet, or use it when hands are wet. ● Since smoke is produced when using the HAKKO FM-2029, be sure the work area is well ventilated. ● While using HAKKO FM-2029, do not do anything which may cause bodily harm or physical damage. -
Page 4: Initial Setup
5. INITIAL SETUP B. Connect to HAKKO FM-206 1. Connect the cord assembly of HAKKO FM-2029 to channel 3 connector for HAKKO FM-206. (Fig.2) When connecting or disconnecting the ● cord assembly, hold the plug. Be sure to turn off the power switch before connecting or ●... -
Page 5: Operation
Handpiece holder may overheat as a result. If placing the HAKKO FM-2029 into the handpiece holder for a long time, press the Hot Air button on the handpiece and stop the hot air. -
Page 6: Trouble Shooting Guide
ACTION : Insert the nozzle completely. CHECK : Is the connection cord broken ? ACTION : If the cord assembly is broken, replace the HAKKO FM-2029. CHECK : Is the heater/sensor for nozzle broken ? ACTION : Replace the nozzle with a new one. -
Page 7: Parts List
8. PARTS LIST ●HAKKO FM-2029 Item No. Part No. Part Name Specifications HAKKO FM-2029 1 2 3 4 FM2029-01 24V-140W Conversion kit HAKKO FM-2029 FM2029-02 24V-140W ●Handpiece holder Item No. Part No. Part Name Specifications C1574 Handpiece holder Item No. - Page 8 http://www.hakko.com Copyright © 2011 HAKKO Corporation. All Rights Reserved. 2011.3 MA02254XZ110303...
