Configuration
3 Configuration
Anybus Wireless Bridge II is normally configured via the web interface or using
one of the pre-configured Easy Config modes.
Advanced configuration can be carried out by issuing AT commands via the web
interface or over a Telnet or RAW TCP connection to port 8080.
3.1

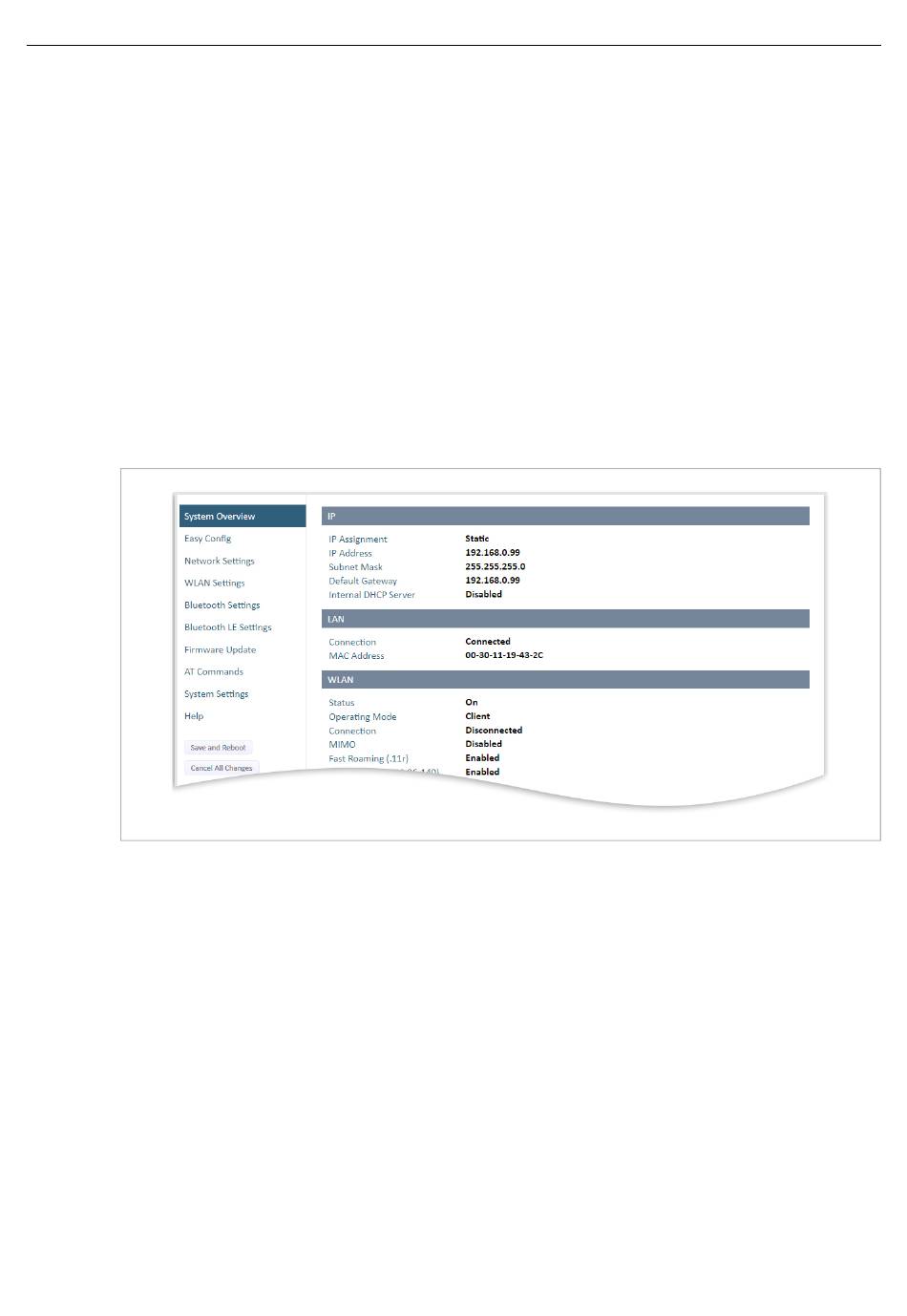

Web Interface

The web interface is accessed by pointing a web browser to the IP address of
the unit. The default address is 192.168.0.99.
The configuration settings are described in detail in the User Manual.
3.2

Easy Config

1. Power on the unit and wait for the Link Quality LEDs to light up and go out
again, then immediately press and release the MODE button.
2. Press MODE repeatedly to cycle through the Easy Config modes until the
desired mode is indicated by the A-B-C-D LEDs.
3. Within 20 seconds of step 2, press and hold MODE for 2 seconds. When the
button is released the unit will restart in the selected mode.
