7. INSTALLATION
7A. INSTALLATION LOCATIONS
7Ai. FAVC location
The Fresh Air Ventilation Controller (FAVC) has been designed to install directly to the return air
plenum of your HVAC system, refer to Figures 14 and 15 for additional installation information. The
FAVC can be installed on the wall in the return air stream as close to the return air vent of HVAC
system when the small room is designed to act as a return air plenum using the optional FAVC
mounting bracket (Field Controls P/N: 602600150), refer to Figure 16 for return air closet
installation information.
P/N 780100700 07/18 Rev F

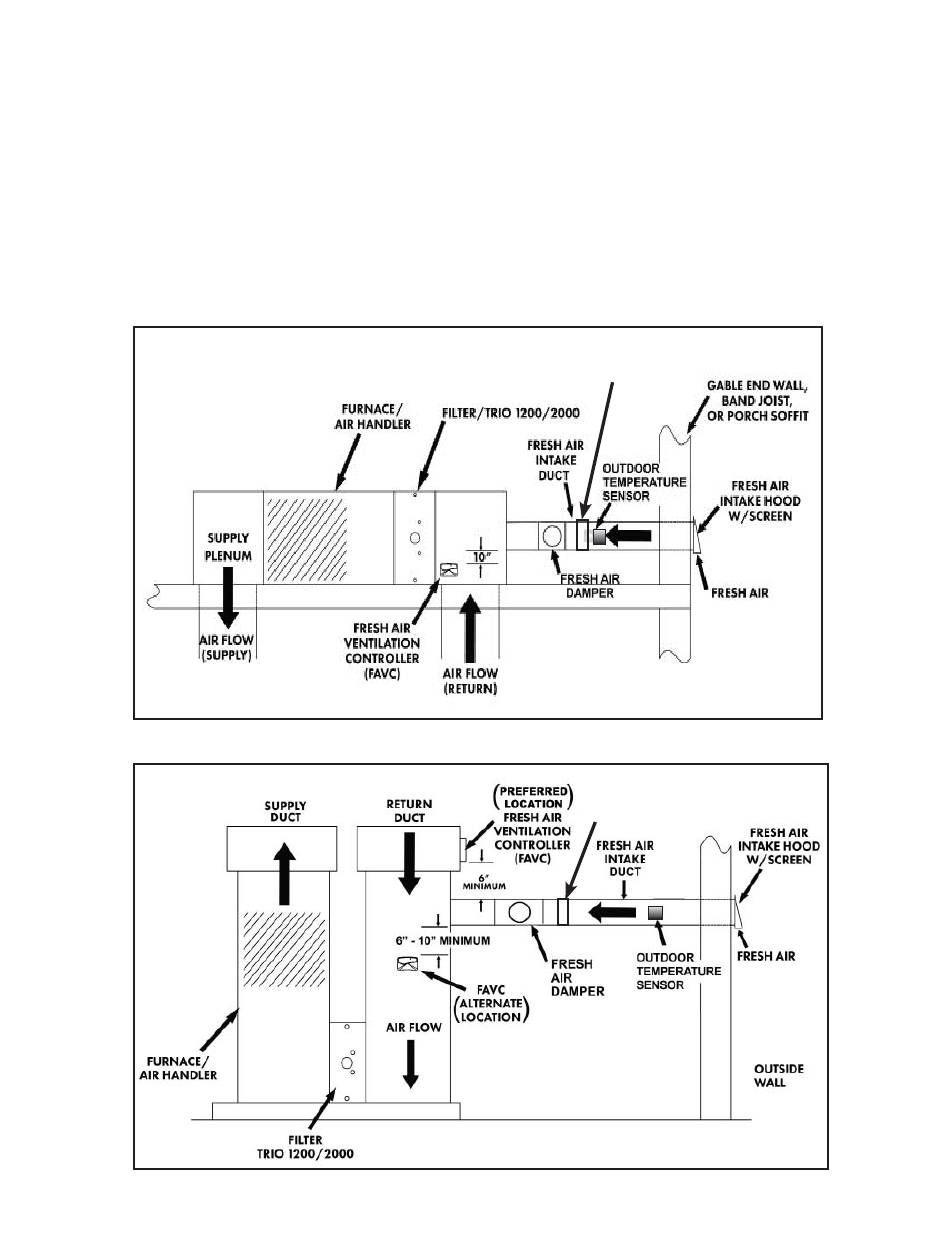

FIGURE 14 - Attic/Horizontal Air Handler Installation
FIGURE 15 - Basement/Vertical Air Handler Installation
Page 16 of 36
OPTIONAL INLINE HEATER
(REQUIRED FOR COLD
REGION ONLY)
OPTIONAL INLINE HEATER
(REQUIRED FOR COLD
REGION ONLY)
