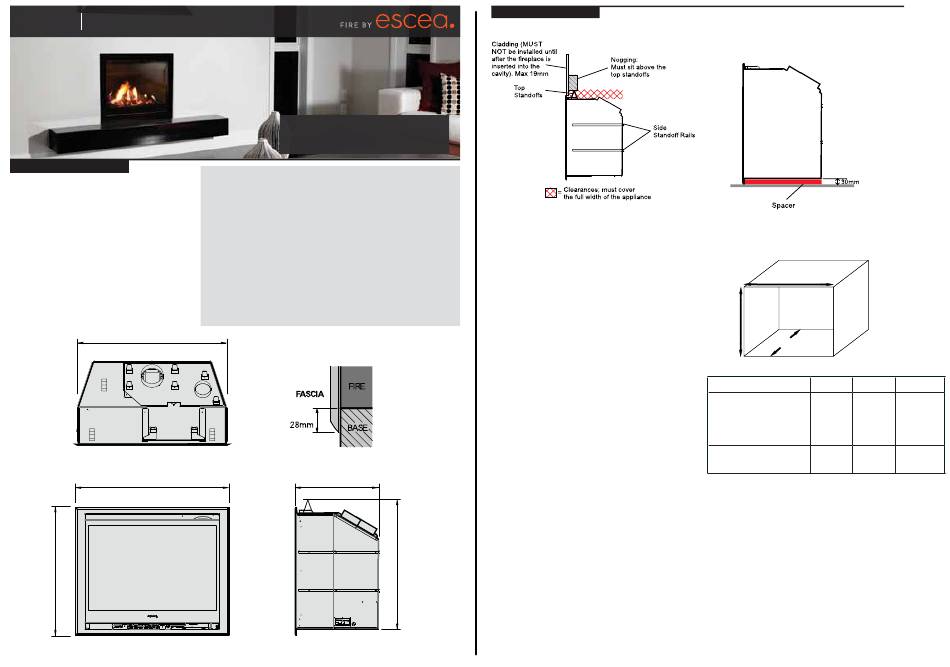

Escea AF700 Information Sheet For Builders And Architects

AF700
Information Sheet for Builders and Architects

Appliance Information

Product Dimensions

All outside dimensions taken from the appliance are
with the standoffs attached.
693mm
711mm*
593mm*
For further information or specifications, visit the
technical section of our website www.escea.com
to view the latest product Installation Manual.

Specifications

Heat Output 5-5.6 kW
Star Rating 3-4 stars
Gas Input/Consumption 22-25 MJ/hr
Gas Connection Rear right or front right, 1/2" BSP female thread
Gas Type Natural Gas / ULPG (NZ) / Propane (Aus)
Weight 45 kg
Room fan Yes
Flue Type Simpson Duravent Direct Vent (False Chimney)
Flexi Flue (Masonry)
Flue Size 6" mm Outer, 4" mm Inner (Direct Vent)
4" and 3" Flexi Flue (Masonry)
Power Requirement 3 pin earthed 230V power outlet +isolating switch
to be within 1.0m of rear right hand corner of the
appliance.
Smart Heat App Yes
Distance from fireplace base
to Fascia face
387mm
*Slim Fascia Dimensions.

Cavity Construction

False cavity Installation

Cavity Base

This appliance MUST be fully supported on its
base. The base must extend over the entire area of
the underside of the appliance. The base must also
be levelled to prevent vibration from possible fan
imbalance. M5 Standoffs (circled in the diagram
below) may be used to screw in any feet with an
M5 thread to level the rear of the fireplace inside
the cavity. The base of the cavity must be strong
enough to support 75kgs.
596mm
Masonry Installation Requirements
The masonry install requires a spacer below the appliance
to allow room for the fascia to sit flush with the ground.

Cavity Shape

The standoff rails installed on the outside must only be re-
moved when being installed into a masonry cavity.
W
H
D
Note: a top is not required when creating the cavity
Height Width
False Chimney 600mm 695mm
installation (top standoffs
must be adjusted to the
upright position)
Masonry install with 585mm 685mm
Standoff Rails Removed
*Note: If cavity dimensions significantly exceed those spec-
ified, a register plate is available for purchase through your
local escea retailer (New Zealand Only).
630315_1 AF700 Builders and Architects Sheet
Depth
390mm
+flue
Clearances
385mm
