Jenn-Air JXW9036W Product Dimensions

PRODUCT MODEL NUMBERS
JXW9030W
JXW9036W
ELECTRICAL REQUIREMENTS
A 120 Volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
LOCATION REQUIREMENTS
Have a qualified technician install the range hood. It is the installer's
responsibility to comply with installation clearances specified on the model/serial
rating plate. The model/serial rating plate is located inside the range hood on the
rear wall of the range hood.
Canopy range hood location should be away from strong draft areas, such as
windows, doors and strong heating vents.
For Mobile Home Installations
The installation of this range hood must conform to the Manufactured Home
Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal
Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or
when such standard is not applicable, the standard for Manufactured Home
Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI
A225.1/NFPA 501A*, or latest edition, or with local codes.
VENTING REQUIREMENTS
A 10" (25.4 cm) round vent
system is needed for
installation (not included).
The hood exhaust opening is
10" (25.4 cm) round.
NOTE: Flexible vent is not
recommended. Flexible vent
creates back pressure and air
turbulence that greatly reduce
performance.
Vent system can terminate
either through the roof or
wall.
Calculating Vent System Length
To calculate the length of the system you need, add the equivalent feet (meters)
for each vent piece used in the system.
Vent Piece Equivalent Length
45° elbow 2.5 ft (0.8 m)
90° elbow 5.0 ft (1.5 m)
The maximum equivalent vent lengths are:
10" (25.4 cm) round vents - 60 ft (18.3 m)
Because Whirlpool Corporation policy includes a continuous commitment to improve our
products, we reserve the right to change materials and specifications without notice.

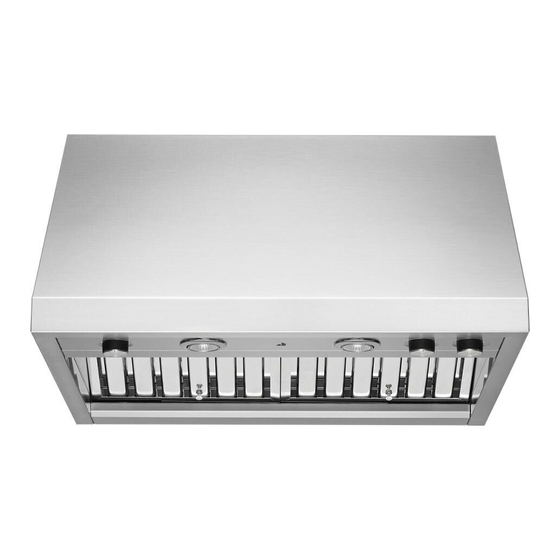

30" (76.2 cm), 36" (91.4 cm) and 48" (121.9 cm) Commercial Style
Wall-Mount Canopy Range Hood
JXW9048W
Roof Venting Wall Venting
A
B*
B*
A. Roof cap A. Wall cap
B. 10" (25.4 cm) B. 10" (25.4 cm)
round vent*
Example vent system
90 elbow
The following example falls within the maximum recommended vent
length.
1 - 90° elbow
1 - wall cap
8 ft (2.4 m) straight
Length of system
PRODUCT DIMENSIONS
Front view
A
2¹⁄₄"
(5.7 cm)
round vent*
Back view
8³⁄₈"
(21.3 cm)
A. Top of hood
B. Wood support
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
6 ft (1.8 m)
2 ft
(0.6 m)
= 5.0 ft (1.5 m)
= 0.0 ft (0.0 m)
= 8.0 ft (2.4 m)
= 13.0 ft (3.9 m)
18¹⁄₁₆" (45.9 cm) for 48" (121.9 cm) Hood
12¹⁄₁₆" (30.6 cm) for 36" (91.4 cm) Hood
9¹⁄₁₆" (23.0 cm) for 30" (76.2 cm) Hood
CL
30" (76.2 cm)
36" (91.4 cm)
48" (121.9 cm)
9⁷⁄₈"
(25.0 cm)
D
CL
E
18¹³⁄₁₆" (47.8 cm) for 48" (121.9 cm) Hood
12¹³⁄₁₆" (32.5 cm) for 36" (91.4 cm) Hood
9¹³⁄₁₆" (24.9 cm) for 30" (76.2 cm) Hood
C. Bottom of hood
D. Home wiring location
E. Knockout into terminal box
Wall cap
6¹⁄₂" (16.5 cm)
12" (30.5 cm)
18" (45.7 cm)
25" (63.5 cm)
A
18"
B
(45.7 cm)
C
Page 1 of 2
Ref. W10274316
10/08/09
