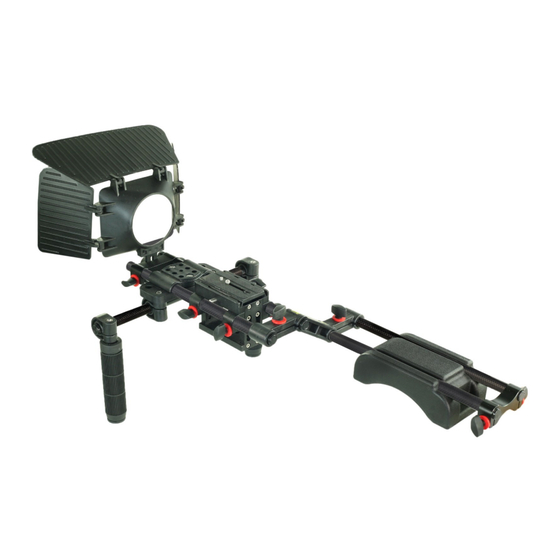

DSLR SHOULDER RIG
I N S T R U C T I O N M A N U A L
For Demonstration only
All rights reserved
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted
by the applicable copyright statutes or in writing by the publisher.
Advertisement
Related Manuals for Filmcity FC-10W-CF
Summary of Contents for Filmcity FC-10W-CF
- Page 1 DSLR SHOULDER RIG I N S T R U C T I O N M A N U A L For Demonstration only All rights reserved No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the publisher.
- Page 2 DSLR users by providing professional look production value at an affordable price. I N T H E B O X Note: 1. If you have purchased (FC-10W-CF), you will receive the following: Camera Base with Straight & Z-Bracket...
- Page 3 FILMCITY Carbon Fiber Camera Rig with Counter Weight A S S E M B L I N G YO U R D S L R S H O U L D E R R I G Attach the quick release plate of your tripod head with base plate and tighten it with the help of screw driver.
- Page 4 FILMCITY Carbon Fiber Camera Rig with Counter Weight Note: The front handle bracket clamps are the ones with allen bolts. Now insert front handle rod into the front bracket and secure it properly with the help of allen key.
- Page 5 Now insert the 300mm rods into the z-bracket and tighten the knob to secure properly. Note: if you have purchased (FC-10W-CF) then you have to attached counter weight instead of SR-33A adapter. Attach the shoulder pad and SR-33A adapter into the rods and secure it...
- Page 6 FILMCITY Carbon Fiber Camera Rig with Counter Weight Attach the camera with quick release plate and tighten the bolt to secure properly. Now mount the camera onto the base plate and tighten the knob to secure it. Note: you can adjust the height of...
- Page 7 FILMCITY Carbon Fiber Camera Rig with Counter Weight Note: 2. If you have purchased (FC-10-CF), you will receive the following except of counter A S S E M B L I N G YO U R M B - 7 7 M AT T E B O X ...
- Page 8 FILMCITY Carbon Fiber Camera Rig with Counter Weight (SHOWN WITH OPTIONAL ACCESSORIES) W A R R A N T Y We offer a limited time warranty for our products. For mechanical products we provide a 6 month warranty & for electronic products we provide a 3 month warranty from the date of purchase.
- Page 9 FILMCITY Carbon Fiber Camera Rig with Counter Weight Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired. We will cover the complete cost of sending replacement parts within the warranty period.
