Page 1
Filmcity A7R II Camera cage Kit (FC-A7RS-KIT ) Instruction Manual...
Page 2
At Filmcity, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
Page 3
Filmcity family. By purchasing your Filmcity Skobee Camera Dolly with Track, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.
Page 4

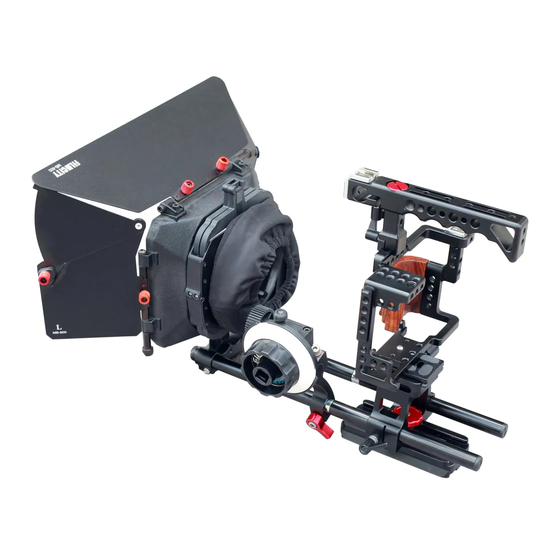

Introduction Filmcity unveils its specially designed Camera cage kit for Sony a7R II, a7S II, & a7 II users with dynamic features. The 15mm rail system offers plenty of room to mount and stack your components. One such combination of components is the Matte Box and Follow Focus which are included in this package.
Page 5
Assembling Your MB-600 Power Matte Box Insert french flag to the top of Matte Box and tighten it with screws. In the same way, insert side flags into the slots provided on both sides and secure them with screws. NOTE: If the french flag remains loose even after tightening the knob, then slightly tighten the allen bolt as shown.
Page 6
Assembling Your Camera Cage Kit Attach the quick release plate of your tripod head with sliding base plate and tighten it with the help of screw driver. Now mount the sliding base plate on fluid head and secure it properly with the help of knob.
Page 7
Attach quick release plate of rod adapter into the cage and tighten it with the help of screw-driver. Now attach the camera cage into the rod adapter and tighten with knob to secure. Insert 150mm female threaded rods into the rod adapter. Note: You can attach the 150mm male rods at the front to extend the rods for mounting your matte box, follow focus and handles etc.
Page 8
Note: The direction of the handle can be adjusted .Loosen the screw with the help of screw driver to ad- just the direction of handle or to mount it sideways. Wrap the Flexible gear ring around the lens, cut to size (if needed) and tighten the gear properly.
Page 9
Now attach the matte box to the front of rods, align the knicker with the lens barrel and tighten the knot. NOTE: CABLE CLAMP has 1/4 inch screw and can be attached to any 1/4 inch thread. Exclusive of Cable WARRANTY We offer a one year warranty for our products from the date of purchase.
Page 10
Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired. We will cover the complete cost of sending replacement parts within the warranty period. After that, Nominal cost of the product &...
