- Page 1 DWR-5420/DH-5400/DB-5400 Operation manual Dual-Channel Three Redundancy Digital Wireless Microphone System CHIAYO ELECTRONICS CO., LTD.
-
Page 2: Important Safety Instructions
DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System Important safety instructions ◼ READ, KEEP and HEED these instructions. ◼ CLEAN ONLY with dry cloth. ◼ DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 3: Important Usage Instructions

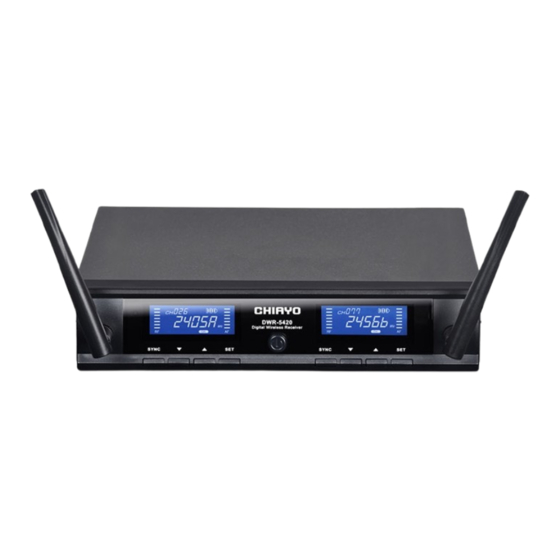

Instructions Thank you for choosing CHIAYO digital wireless microphone system! For more details, please take a few moments to read this operating manual for thorough understanding of the function and operation of both transmitter and receiver. In the box 2405... - Page 4 DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System Parts and functions of DWR-5420 receiver Antenna A (SMA) Antenna B (SMA) CH 1 CH 2 Power switch MENU / SET button UP button DOWN button Channel synchronization button DC input MIC/LINE output impedance switch...
- Page 5 Instructions Antenna installation Install supplied 2.4GHz receiver SMA antenna A and B at SMA connectors on the front panel. Please make sure the antennas being firmly tightened otherwise the reception quality might be affected. Receiver placement 1. The receiver should be at least 1m above the ground and 1m away from a wall or metal surface to minimize reflections.
-
Page 6: Volume Adjustment
DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System Channel synchronization of the receiver and transmitter Press and hold the transmitter’s synchronization button until “SYNC” flashes on the LCD. Press and hold the receiver’s SYNC button until the LCD displays “-Sync-” and the channel number becomes the same as the transmitter indicative of successful channel synchronization. - Page 7 Instructions Setting microphone’s sensitivity from the receiver Press SET button to make the sensitivity level flashes SYNC → Press DOWN(▼) and UP(▲) button to adjust the sensitivity level between -1, 0 and 1. SYNC After a level is chosen, wait about 5 seconds to save the setting and the level will not change after reboot until the setting is changed again.
-
Page 8: Notch Filter
DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System Notch filter When noise signals are picked up by the microphone, notch filter can prevent these signals entering the receiver. Its default status is OFF. If using belt-pack transmitter, it’s advised to turn on the notch filter. - Page 9 Instructions Equalizer setting Equalizer adjustment is actually used to increase or reduce the high/medium/low frequency component of the speaker's restored sound. It is so-called raising or attenuating treble/bass via frequency-specific volume controls to improve human voices or make musical instruments’ sound more prominent.
- Page 10 DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System Audio output connection INDIVIDUAL balanced output MIXED unbalanced output ¼” PHONE PLUG connector provides unbalanced audio XLR connector provides balanced audio output signal output signal from this jack to the mixer/amplifier. Use an audio output cable with ¼”...
- Page 11 Instructions Parts and functions of DH-5400 microphone Cartridge module Battery power LED 3-STEP power switch Menu button Setting button Channel synchronization button Battery compartment Color cap Charging port Battery installation & indicator fig.1 fig.2 ➔ ● ○ ● ● When the microphone is The LED will be solid blue If the LED flashes, it means switched ON position (fig.1),...
- Page 12 DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System 3-STEP power switch To prevent other user from turning off the power, you may slide this switch to the right to lock the microphone on stand-by or mute status. Slide to the left to unlock.
- Page 13 Instructions RF power setting Higher output power can extend the RF transmission distance but has higher power consumption that results in shorter batteries’ duration. Lower output power will reduce the RF transmission distance but can extend the batteries’ operating duration with lower power consumption. Use MENU button to go to the RF POWER page.
- Page 14 DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System Battery type setting Use MENU button to go to the BATTERY TYPE page. Press and hold SET button until NiMH or AKLN flashes to denote readiness for setting. Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery).
- Page 15 / happens. simutaneously in the same room. When to choose ◼ ◼ Only one DWR-5420 system (two One system operates on F-CH01 transmitters) in the room. and F-CH02 modes and the other system on F-CH03 and F-CH04. Auto freq hopping Use MENU button to go to the SCAN mode page.
- Page 16 DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System Parts and functions of DB-5400 transmitter Menu button Antenna Setting button Cover release button Battery compartment Channel synchronization button Power button Battery power LED Charging contacts Audio input connector Pin-2: LINE IN (GT)
- Page 17 Instructions Channel synchronization of the receiver and transmitter Open the cover and hold the synchronization button until “SYNC” on the LCD flashes. Hold the receiver’s SYNC button until the LCD displays “-Sync-” and the channel number becomes the same as the transmitter indicative of successful channel synchronization. SYNC ...
- Page 18 DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System Battery type setting Use MENU button to go to the BATTERY TYPE page. Press and hold SET button until NiMH or AKLN flashes to denote readiness for setting. Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery).
- Page 19 Instructions RF power setting Higher output power can extend the RF transmission distance but has higher power consumption that results in shorter batteries’ duration. Lower output power will reduce the RF transmission distance but can extend the batteries’ operating duration with lower power consumption. Use MENU button to go to the RF POWER page.
-
Page 20: Scan Mode Setting
DWR-5420/DH-5400/DB-5400 Dual-Channel Three Redundancy Digital Wireless Microphone System SCAN mode setting There are five scan modes for selection: A-SCAN, F-CH01, F-CH02, F-CH03 and F-CH04. Mode A-SCAN F-CH01 F-CH02 F-CH03 F-CH04 The microphone will automatically operate There are four modes for selection. Each...
