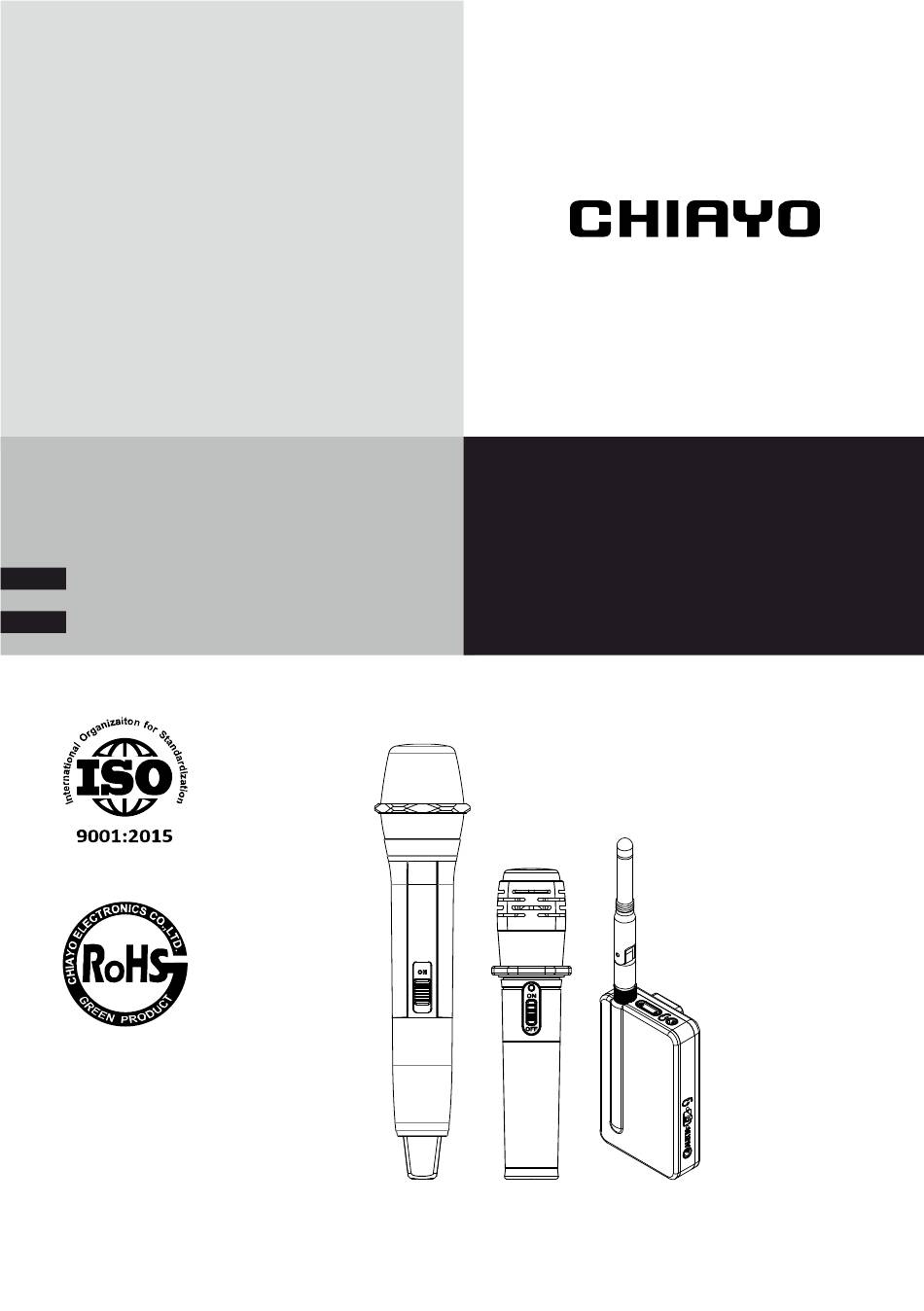

- Page 1 DWH-511 / DH-511 / DWR-511 Operation manual 2.4G digital wireless microphone system CHIAYO ELECTRONICS CO., LTD.
- Page 2 2.4G digital wireless microphone system Introduction Thank you for choosing CHIAYO digital wireless microphone system! For more details, please take a few moments to read this operating manual for thorough understanding of the function and operation of both transmitter and receiver.
- Page 3 Instructions DWH-511 Handheld transmitter (TX) Cartridge module Power Indicator Power switch Channel synchronization button Battery compartment Charging contact Battery installation & indicator When the microphone is switched ON If the indicator turns soild RED, it means the position, the power indicator will be solid batteries are weak and require replacement.
- Page 4 DWH-511 / DH-511 / DWR-511 2.4G digital wireless microphone system DH-511 Handheld transmitter (TX) Cartridge module Power Indicator Power switch Channel synchronization button Battery compartment Color cap Charging port Battery installation & indicator When the microphone is switched ON...
- Page 5 Instructions DWR-511 Receiver (RX) Antenna Clip Power Indicator Signal Indicator Reset Line Output Mini USB Charging Port Clip Volume Control Power Button Microphone Output Power On/Off Turn on the DWR-511 by pressing and holding the power button for 1 second. It may take a few seconds for the transmitter and receiver to connect and show solid green signal indicator lights.
- Page 6 DWH-511 / DH-511 / DWR-511 2.4G digital wireless microphone system Signal Indicator SOLID GREEN: The receiver is paired and FLASHING GREEN: the receiver is not communicating with the transmitter. connected to the transmitter, or has gone out of range. If this light remains blinking, the units will have to be paired again.
- Page 7 Instructions Microphone output The microphone output on the receiver is a 3.5 mm, unbalanced TRS stereo jack that outputs a microphone level audio signal. Use the included audio output cable (3.5mm to 6.3mm) to connect the receiver to the mic input (6.3mm) of the amplifier. Be advised that the DWR-511 receiver’s MIC OUT is not compatible with line level inputs labeled as LINE or AUX.
- Page 8 DWH-511 / DH-511 / DWR-511 2.4G digital wireless microphone system 1. Start with both the TX and RX units powered off. Note that pairing will not be possible if either unit is low on TX off RX off ...
