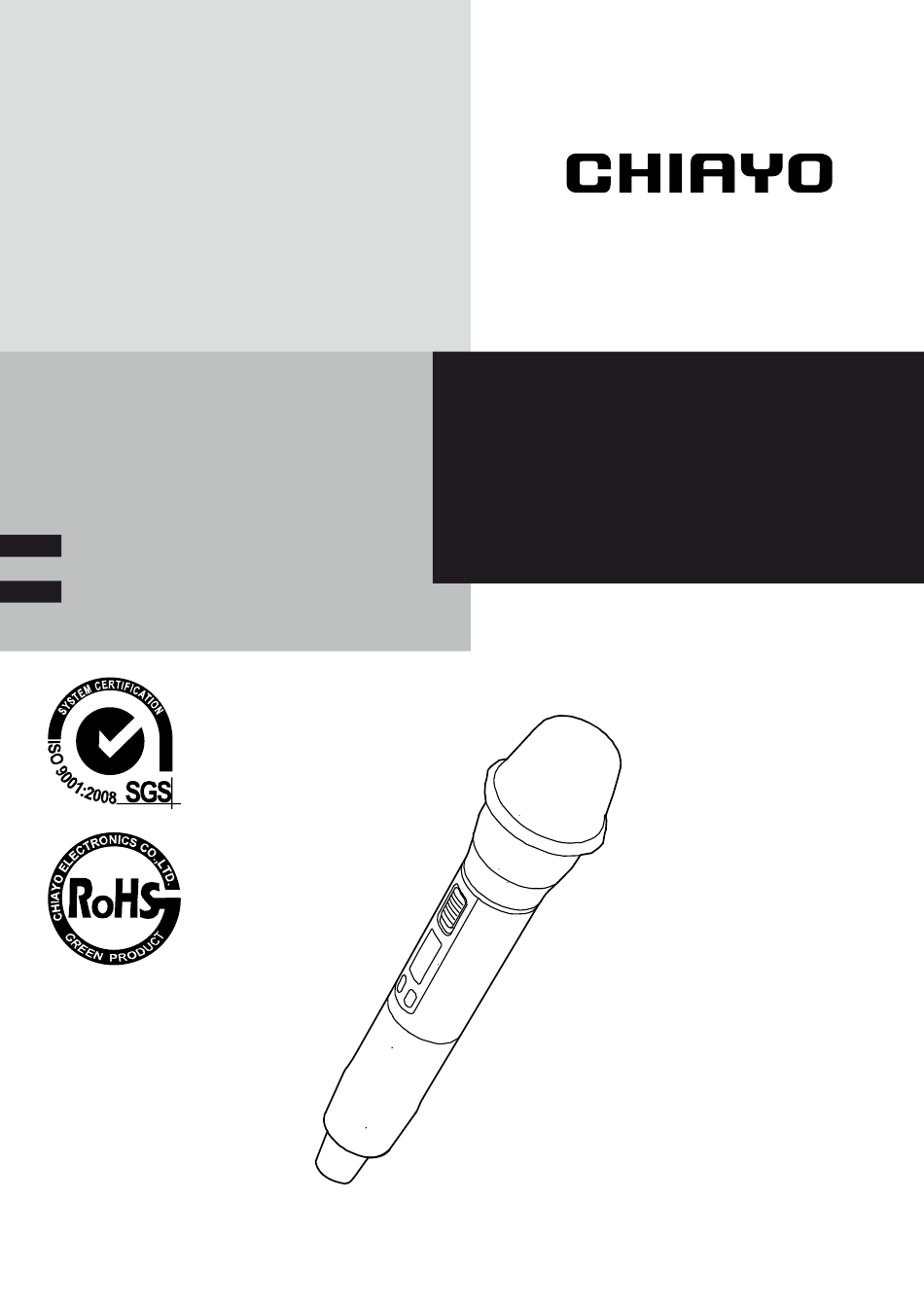

- Page 1 DH-2400 Operation manual Digital Handheld Microphone CHIAYO ELECTRONICS CO.,LTD.

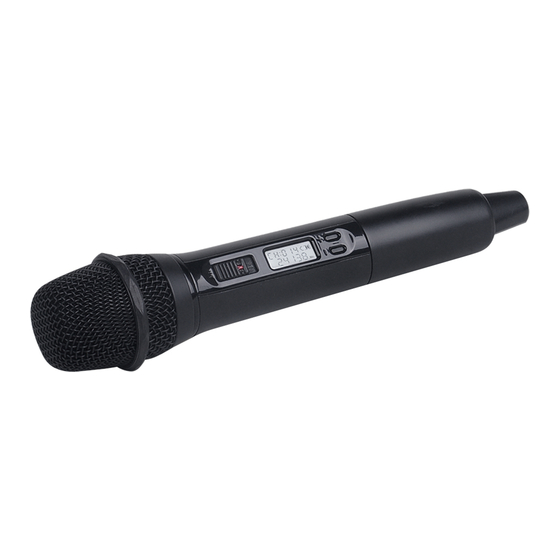

- Page 2 DH-2400 Digital Handheld Microphone Parts and functions Cartridge Battery power LED Power switch Setting button Menu button Channel synchronizing button attery compartment Color cap Charging port 3-STEP power switch To prevent other user from turning off the power, you may slide this switch to the right to lock the microphone on stand-by or mute status.
- Page 3 Instructions Battery installation & indicator When the transmitter is switched If the LED remains illuminated, it ON, a blue LED will blink once to means the batteries are weak and denote the batteries installed are require replacement. in good condition. This transmitter requires 2 x AA To install, remove the battery cover batteries to operate.
- Page 4 DH-2400 Digital Handheld Microphone Changing CHANNEL / FREQUENCY Press-release MENU button until the CHANNEL-FREQUENCY page appears. C H: 07 9 2 4 8 0 M H z Press and hold SET button until the channel number flashes to denote readiness for setting. CH :0 79 2 4 8 0 M H z...
- Page 5 Instructions Channel synchronizing of the receiver and transmitter Unscrew the microphone’s lower housing and then press and hold the synchronizing button until LINK flashes on the LCD. CH :0 00 L I N K Press and press and hold the receiver’s SYNC button until the FREQ frequency icon appears.
- Page 6 DH-2400 Digital Handheld Microphone Battery type setting Press-release MENU button until the CHANNEL-BATTERY TYPE page appears. CH :0 76 A K L N Press and hold SET button until NIMH or AKLN flashes to denote readiness for setting. CH :0 76 A K L N Press-release SET or MENU button to select either NiMH (rechargeable battery) or AKLN (alkaline battery).
- Page 7 Instructions RF power setting Press-release MENU button until the CHANNEL-RF POWER page appears. CH :0 76 R F 0 8 Press and hold SET button until the RF power figure flashes to denote readiness for setting. CH :0 76 R F 0 8 Press-release SET (UP) or MENU (DOWN) button to choose an output level from 0db to 20db.
- Page 8 (2) This device must accept any interference received, including interference that may cause undesired operation. Frequency: 2400~2483.5MHz Maximal power: 9.81dBm CE declaration info: www.chiayo.com.tw/declaration.html CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜...
