Seastar Solutions HP6016 Installation Instructions

NOTICE
Manuals can be downloaded from:
www.se st rsolutions.com
WARNING
NOTICE
WARNING

Bolt Torque Specifications

ALL HELM PUMPS
TORQUE TO
150 in-lb
Figure A.
BAYSTAR STEERING CYLINDERS
TORQUE TO 20 – 25 ft-lb
Figure B.
NOTICE
© 2008 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6
INST LL TION INSTRUCTIONS
Copy Part# 501002, Rev. C, 01/2014
HYDRAULIC STEERING

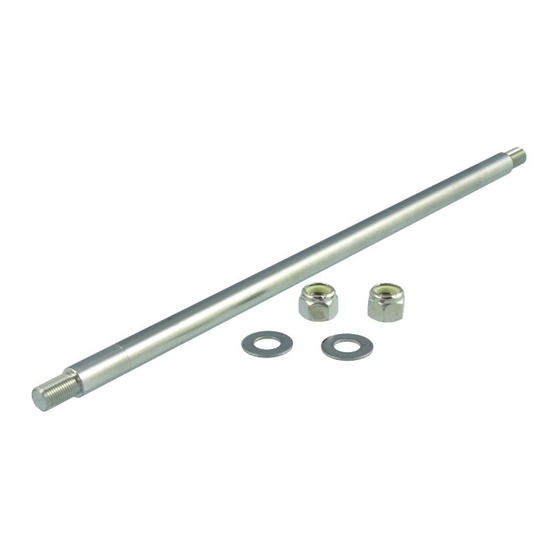

SPARE PARTS KIT
This kit is designed for use in a SeaStar, BayStar, Capilano or Hynautic
Hydraulic Steering System. SeaStar Solutions recommends that LL work
is completed by a Qualified Marine Technician to ensure safe operation
of the vessel. Please read and adhere to LL warnings, cautions and
notices that are outlined on this page as well as in your Owner's Manual.
Failure to adhere to the torque specifications outlined below may
lead to separation of components resulting in loss of steering
control causing ejection from vessel, or collision with objects
leading to property damage, personal injury and/or death.
Refer to your Owner's Manual for any related notices, warnings
and/or cautions.
It is good practice to check ALL fasteners after initial use and
regularly thereafter to ensure proper torque setting is maintained.
These are the recommended maximum torque values for reusable
dry bolts. Bolts should be torqued to this value +0% -20%.
For lubricated bolts, multiply the dry bolt torque values by .75.
Values are stated in: in-lbs (Nm)
Bolt Size 18-8SS
8-32 20.0 (2.25)
8-36 22.0 (2.48)
10-24 23.0 (2.59) 19.0 (2.14)
10-32 32.0 (3.61) 26.0 (2.94)
1/4"-20 75.0 (8.47) 62.0 (7.01)
1/4"-28 94.0 (10.6) 77.0 (8.70)
Values are stated in: ft-lbs (Nm)
Bolt Size 18-8SS
7/16"-14 31.0 (42.00) 26.0 (35.25)
7/16"-20 33.0 (44.74) 27.0 (36.61)
1/2"-13 43.0 (58.30) 35.0 (47.45)
1/2"-20 45.0 (61.01) 37.0 (50.17)
9/16"-12 57.0 (77.28) 47.0 (63.72)
9/16"-18 63.0 (85.42) 51.0 (69.15)
5/8"-11 93.0 (126.09) 76.0 (103.04)
5/8"-18 104.0 (141.00) 85.0 (115.24)
Torque values for 18-8 stainless steel and brass bolts are taken from
a torque guide by ITT Harper. ll results correspond well with basic
bolt equations, using a bolt factor of 0.2 and a factor of 3/4 for a
reusable connection.
Brass
Bolt Size
16.0 (1.81)
5/16"-18 132.0 (14.91)
18.0 (2.03)
5/16"-24 142.0 (16.04)
3/8"-16 236.0 (26.66)
3/8"-24 259.0 (29.20)
Brass
Bolt Size
3/4"-10 128.0 (173.55) 104.0 (141.00)
3/4"-16 124.0 (168.12) 102.0 (138.29)
7/8"-9 194.0 (236.03) 159.0 (215.58)
7/8"-14 193.0 (261.67) 158.0 (214.22)
1"-8 287.0 (389.12) 235.0 (318.62)
1"-14 259.0 (351.16) 212.0 (287.43)
