Seastar Solutions HC5323-3 Installation Instructions

NOTICE
CAUTION
Important Notes
MOUNTING BRACKET
(INCLUDED WITH
CYLINDER)
1
3/8" HOLES

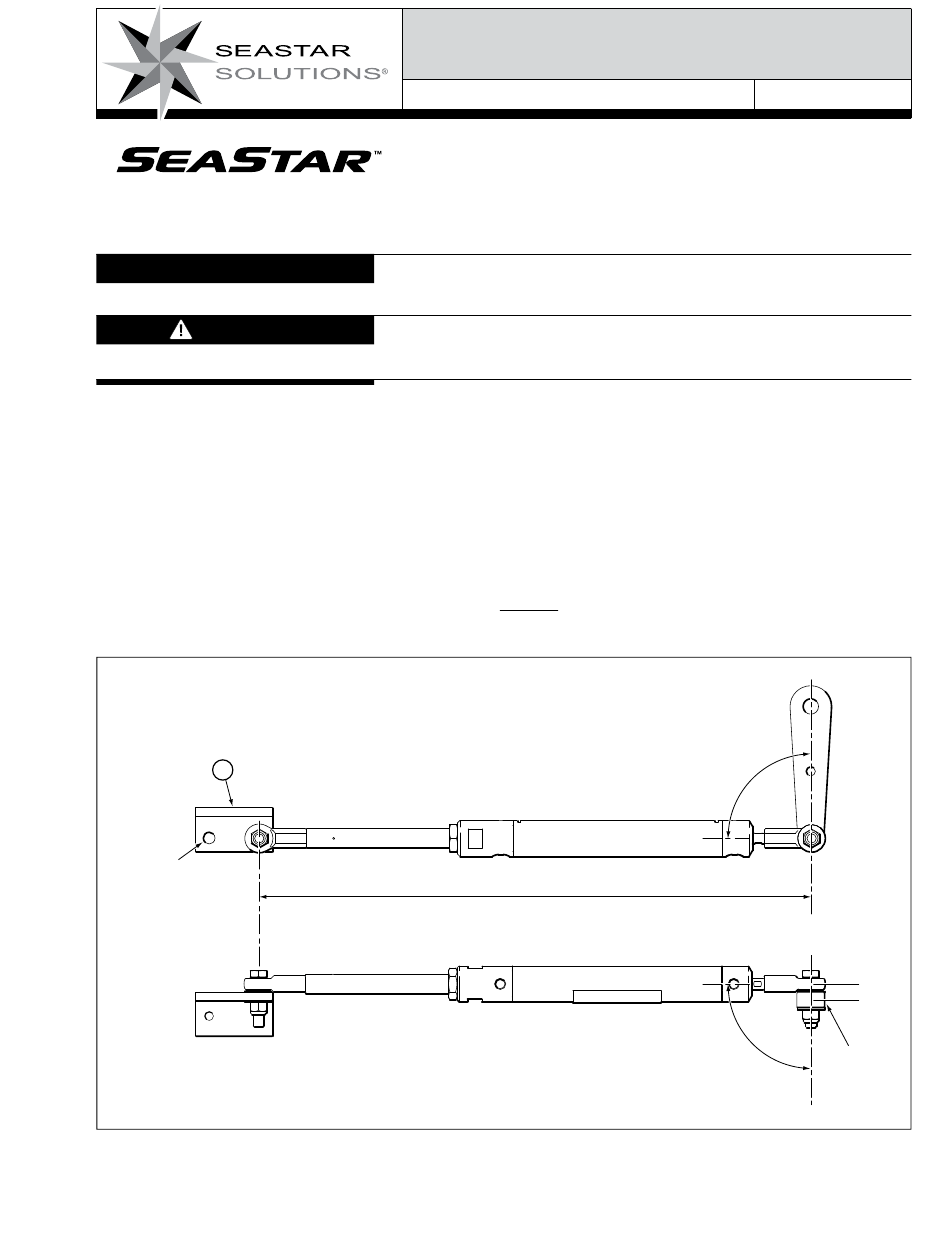

Figure A. Correct Cylinder to Rudder Arm Mounting Orientation.
© 2010 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6
INSTALLATION INSTRUCTIONS
Copy Part# 343325, Rev. B, 01/2014
HC5322-3 & HC5323-3

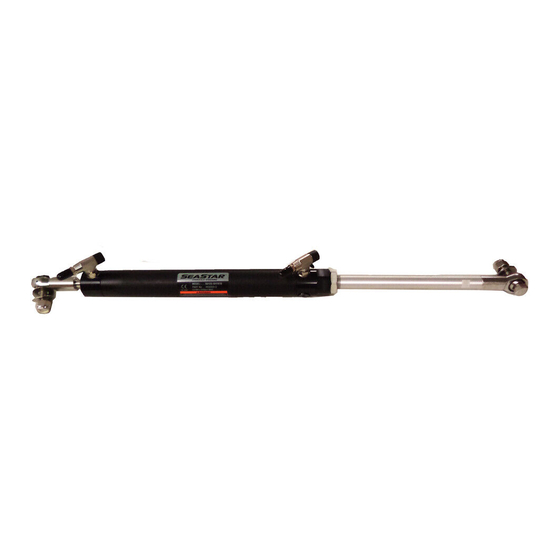

SteerINg CylINder
These cylinders replace the Hynautic K-18 (HC5322-3) and K-19
(HC5323-3) steering cylinders.
These cylinders are not intended for use on any racing and/or
aggressive type applications.
1. At ALL times protect cylinder shafts from nicks and scratches. A
damaged cylinder shaft cannot be repaired and MUST be replaced.
2. To achieve MAXIMUM performance, cylinder is to be mounted at
a right angle (90°) to the rudder arm when in the center position
(refer to Figure A below).
3. Ball joint connections allow for no-load pivoting and minor
misalignment. Ball joint connections are NOT designed to handle
steering loads when significantly misaligned.
4. Mounting area MUST be able to withstand significant forces in
excess of 2000 lb. There must be NO binding or interference of
the ball joints at any point in the steering arc.
X = CENTERED POSITION
HC5322-3 = 28.0"
HC5323-3 = 33.0"
X
PLANE 'A' TO BE PARALLEL TO PLANE 'B'.
(CYLINDER AND RUDDER ARM TO SWING
TOGETHER IN PARALLEL PANES.)
Page 1 of 2
90°
RUDDER ARM IN
CENTERED POSITION
90°
Fax: 604.270.7172 Web: www.seastarsolutions.com
A
B
RUDDER
ARM
