Seastar Solutions HA1230 Installation Instructions

WARNING
WARNING
Removing Old Motor
CAUTION
NOTICE
COVER SCREWS
PHILLIPS (6)

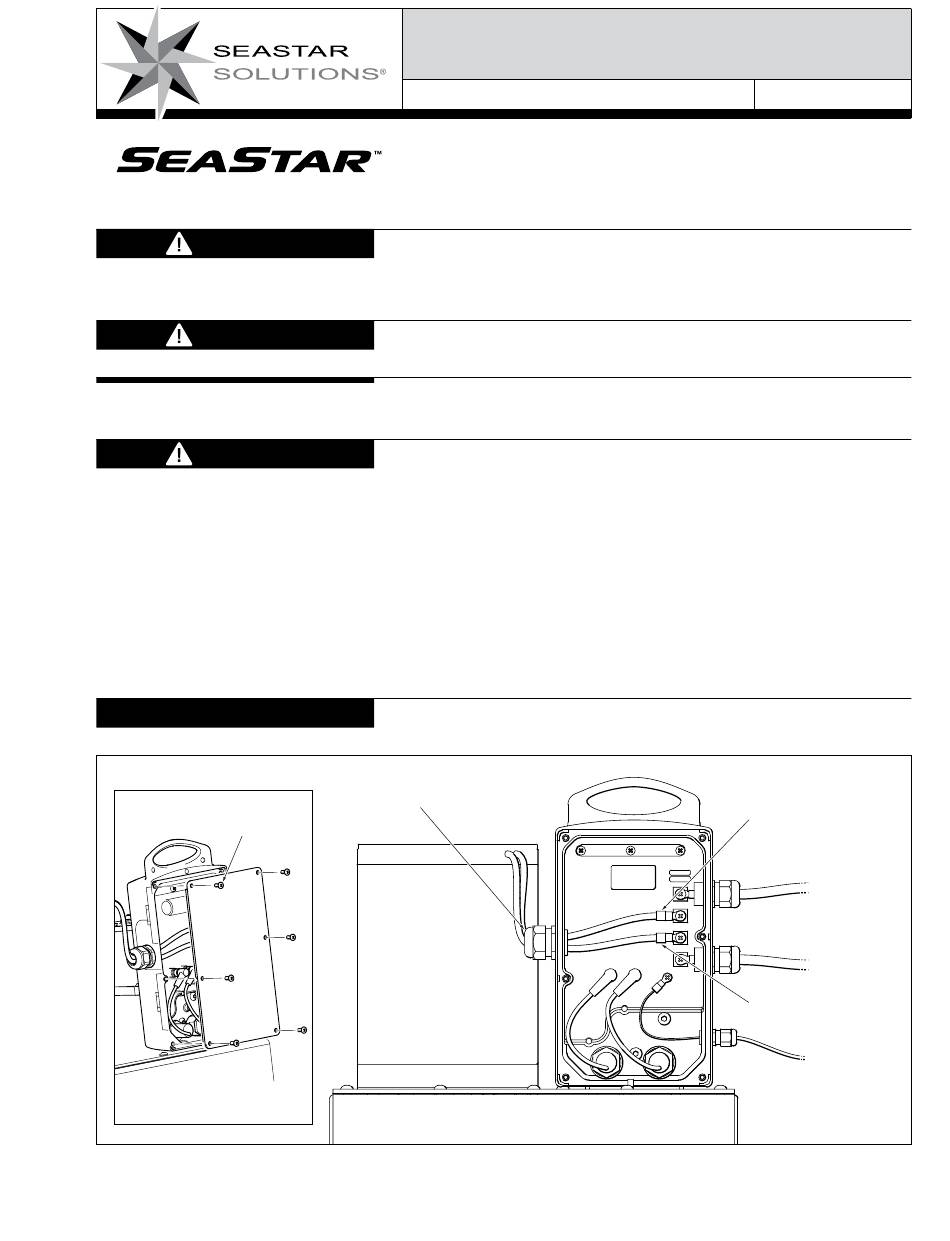

Figure A1.
Controller Rear Cover.
Figure A. Disconnecting Motor Leads.
© 2006 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6
INSTALLATION INSTRUCTIONS
Copy Part# 391249, Rev. C, 01/2014
MOTOR REPLACEMENT
DC Power Units, Part #HA1230
BEFORE starting with the following instructions, ensure that
the area is completely vented and free of fumes. Failure to do
so may result in a fire/explosion resulting in property damage,
personal injury and/or death.
Allow sufficient time for motor to cool prior to performing the
instructions noted below.
1. Disconnect power to the DC Power Unit (located at battery or
other onboard power source).
Failure to disconnect main power lead may result in irreparable
damage to the DC Power Unit.
2. Remove the six Phillips head screws from the controller rear
cover and remove the rear cover. (See figure A1.)
3. Disconnect the motor leads from the circuit board by
removing the two Phillips head screws. (See figure A.)
4. Loosen and pull back the wire retaining nut (See figure A)
then pull the motor leads out of the electronics enclosure.
5 . Remove and discard the two motor through bolts. (See figure B.)
6. Pulling UPWARDS, remove and discard the old end cover,
motor shell, armature and bottom bearing. (See figure B.)
The motor bottom plate (See figure B), should remain attached to
the DC Power Unit. DO NOT attempt to remove the bottom plate.
WIRE RETAINING NUT
Page 1 of 3
POSITIVE MOTOR
LEAD (RED)
NEGATIVE MOTOR
LEAD (BLACK)
