Seastar Solutions HA6523 Installation Instructions

WARNING
Tilt Mechanism Removal
CAUTION
Figure A1.
1

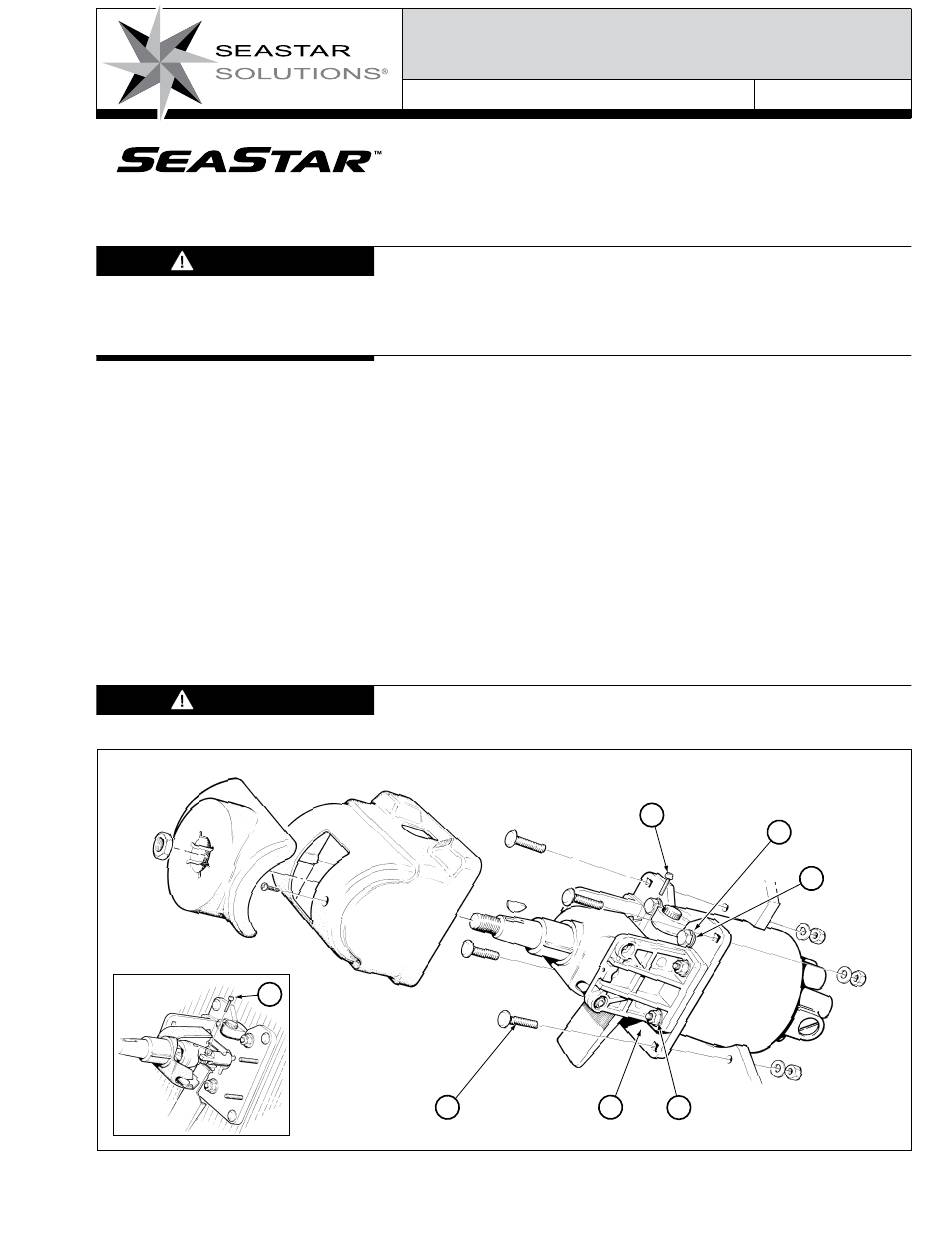

Figure A. Traditional Tilt Helm Mechanism Shown.
© 2009 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6
INSTALLATION INSTRUCTIONS
Copy Part# 279129, Rev. E, 11/2014
CLASSIC TILT MECHANISM
REPLACEMENT, Part #HA6523
This kit is designed to replace the tilting mechanism of a SeaStar
Traditional and SeaStar Classic Tilt helms. In ALL cases, use ALL
of the mounting hardware, plates and mechanism that are included
with this kit. DO NOT re-use any of the older parts off your tilting
helm pump.
1. Remove steering wheel.
2. Remove plastic tilt covers.
3. Locate and remove Socket Head Screw (item 1, figure A, A1 & B1).
4. Tilt Mechanism removal:
a. Traditional Tilt helms: Locate and remove the 4 nuts (item 2,
figure A) that fasten the tilt mechanism to the helm pump
b. Classic Tilt Helms: Locate and remove the two screws (item 2,
figure B) that fasten the tilt mechanism to the helm pump.
5. Slide Tilt Mechanism off of helm pump wheel shaft.
6. Traditional Helms ONLY. Locate and remove the three bolts and
washers (item 3 and 6, figure A) that fasten the helm plate (item
4, figure A) to the helm pump.
7. Locate and remove the four carriage bolts (item 5, figure A).
Discard the helm plate (item 4, figure A) and fasteners as they
are not required for installation.
AT this time the helm pump will NOT be fastened to the dash board.
Take appropriate steps to avoid kinking of the steering lines.
5 x 4
Page 1 of 2
1
3 x 3
4 2 x 4
Fax: 604.270.7172 Web: www.seastarsolutions.com
6 x 3
