Seastar Solutions HF6010 Supplement Instructions

2nd Station Connection
CAUTION
Kit to be used with -3 ORB helm
pumps ONLY. -3 Helm pumps are
fitted with positionable O-ring style
hose fitting ports. DO NOT attempt
to install an NPT pipe fitting into a -3
helm hose fitting port. Doing so will
lead to irreparable damage to the
helm. ONLY use SeaStar Solutions
O-ring style hose fittings (ORB).
WARNING
NOTICE

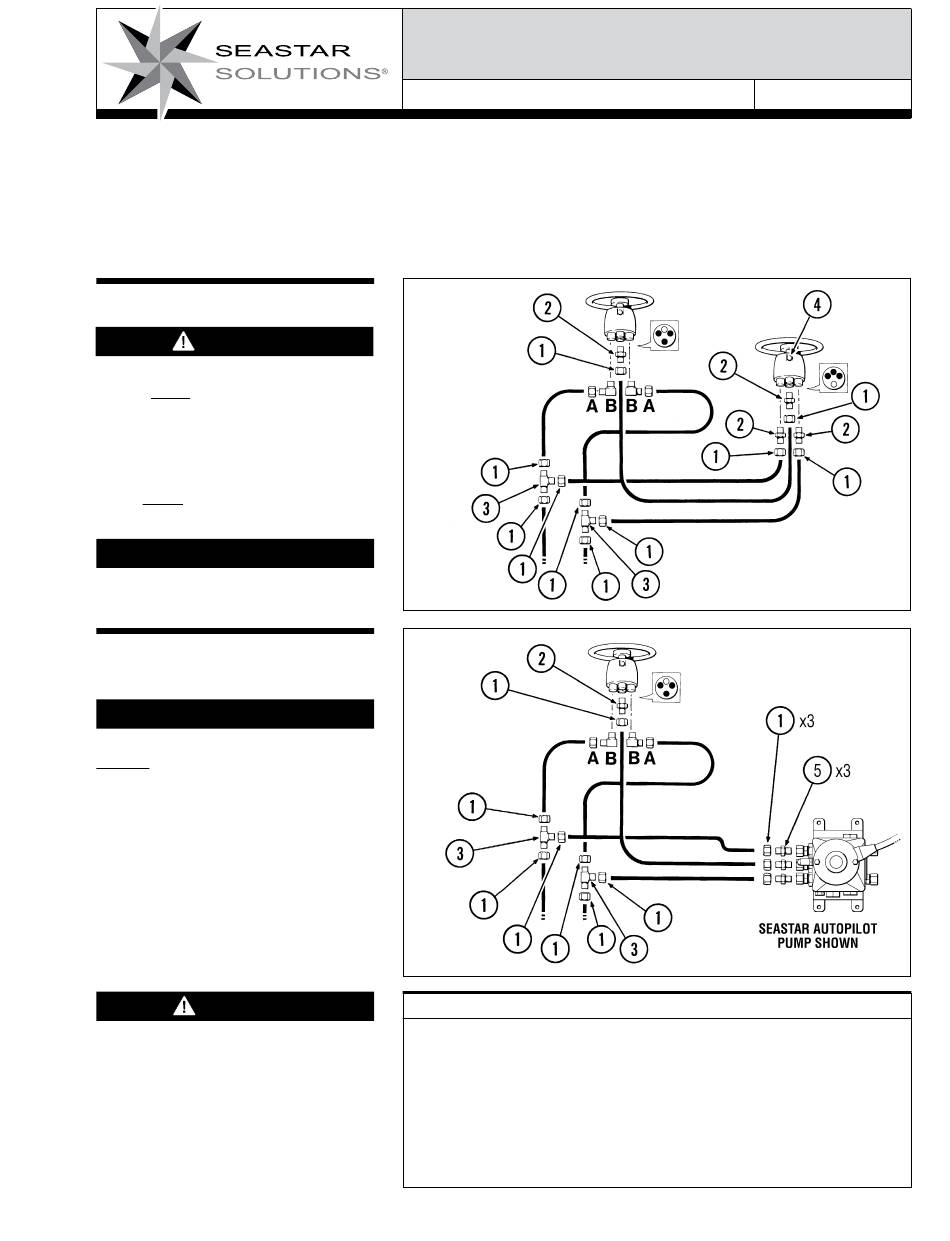

Typical plumbing layouts shown.
Autopilot Powerpack
Connection
WARNING
NOTICE
When using a SeaStar Autopilot Pump,
ALWAYS refer to the Installation Manual
shipped with your autopilot pump.
NPT fitting installations ONLY:
• Apply a liquid, Teflon based pipe
sealant onto the threads going into
the pump
• Tighten fitting HAND-TIGHT
• Using a wrench, tighten an additional
1.5 turns
• Continue to tighten until desired
orientation is met
CAUTION
DO NOT attempt to install NPT pipe
fittings into a cylinder and/or helm
pump fitted with ORB hose fitting
port. Doing so will lead to irreparable
damage to the cylinder and/or helm
port. ONLY use SeaStar ORB hose
fittings provided by SeaStar Solutions.
DO NOT use steel fittings with SeaStar
Helm Pumps, use brass fittings ONLY.
© 2014 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6
SUPPLEMENT INSTRUCTIONS
Copy Part# 998009, Rev. B, 08/2014
FITTING KIT # HF6010
2nd Station/Autopilot when using
3/8" Nylon/Copper tubing
Figure A.
Figure B.
ITem PArT # qTy DeSCrIPTIoN
1 280327 12
2 343088 2
3 600605 2
4 HA5432 1
5 600602 3
B* 2
Tube Nut – 3/8" Dia.
Connector Fitting, 3/8" Tube – -5 ORB
Tee Fitting, 3 Ends – 3/8" Tube
Non-Vented Filler Plug
Straight fitting, 14" NPT to 3/8" Tube
(Not for use in -3 helms)
Elbow 3/8" Tube (M) -5 ORB (M)
* Supplied with Helm Pump.
