- Page 1 User’s Manual EXTENDED BATTERY MODULE (EBM) BP36V60ART2U BP72V60ART2U Cyber Power Systems (USA), Inc. 4241 12th Avenue East Suite 400 Shakopee, MN 55379 Phone: 877-297-6937 Fax: 952-403-0009 http://www.cyberpowersystems.com K01-0000515-01...

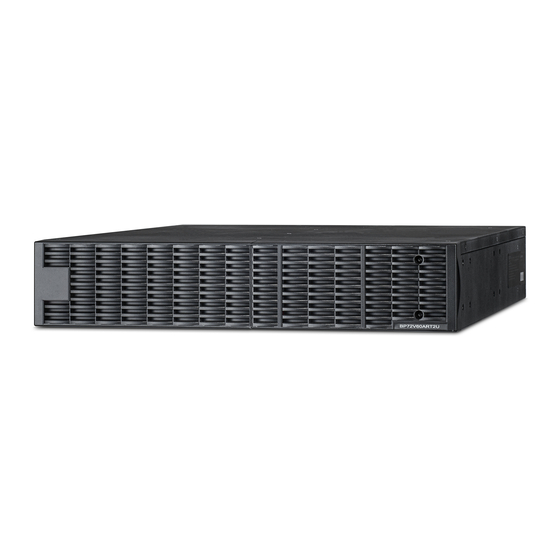

- Page 2 OVERVIEW The CyberPower extended battery modules (BP36V60ART2U / BP72V60ART2U) support 60A polarized plugs, and are designed for variety of Cyber Power UPS systems. When combining with the UPS, the EBM provides extended runtime with a 36VDC/72VDC external connection. Additional parallel-connected EBM provide the UPS for a longer extended runtime operation.
-
Page 3: Hardware Installation
Tighten the front rail screws on the rack. Step 2: Rackmount ears & hanging brackets installation Attach two rackmount ears to the EBM using the provided M5X7L*8pcs screws and tighten two hanging brackets with the M5X6L*6pcs screws. Copyright © 2018 Cyber Power Systems, Inc. - Page 4 Slide the hanging brackets on the EBM into the rails mounted in the rack with the front of the unit facing toward you. Secure the EBM to your rack with four M5X12L*4pcs screws at the front of the rack. (Located in position 2 & position 5) Copyright © 2018 Cyber Power Systems, Inc.
-
Page 5: Vertical/Tower Installation
CAUTION! Do not work alone under hazardous conditions. CAUTION! In case of the risk of electric shock, do not remove the top cover. CAUTION! The battery can energize hazardous live parts inside even when the AC input power is disconnected. Copyright © 2018 Cyber Power Systems, Inc. -
Page 6: Basic Operation
Step 5: Use a power cord to plug AC input inlet of the EBM into a wall receptacle. Step 6: Turn on the DC breaker of the EBM. Copyright © 2018 Cyber Power Systems, Inc. - Page 7 EBM Number setting, select the appropriate number and Save. This operation can also be done if there is an RMCARD installed in the UPS, or via PowerPanel® Business Edition Agent. Please see their respective User Manuals for instructions. Copyright © 2018 Cyber Power Systems, Inc.
- Page 8 Press the “ESC” button to cancel or return to the previous LCD menu. Configure Submenu Available Settings Default Settings EBM Number = [0] [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] Copyright © 2018 Cyber Power Systems, Inc.
-
Page 9: Maintenance
Only use replacement batteries which are certified by proper disposal and recycling of batteries. Do not dispose of batteries Cyber Power Systems. Use of incorrect battery type is an electrical in fire. hazard that could lead to explosion, fire, electric shock, or short circuit. -
Page 10: Technical Specifications
If the Battery module requires further service, please refer to the following information: 1. Call us at (877) 297-6937 or write to us at Cyber Power Systems (USA), Inc., 4241 12th Ave. E., STE 400, Shakopee, MN 55379 or send us an e-mail message at tech@cpsww.com for instructions. -
Page 11: Product Registration
How Do You Open A Connected Equipment Claim? 1. Call us at (877) 297-6937 or write to us at Cyber Power Systems (USA), Inc., 4241 12th Ave. E., STE 400, Shakopee, MN 55379, or send us an e-mail message at claims@cpsww.com for instructions, within 10 days of the occurrence. - Page 12 CyberPower is the warrantor under this Limited Warranty. For further information please feel free to contact CyberPower at Cyber Power Systems (USA), Inc. 4241 12th Ave E., STE 400, Shakopee, MN 55379; call us at (877) 297-6937; or send us an e-mail message at claims@cyberpowersystems.com.
-
Page 13: Conformance Approvals
Address: 4241 12th Avenue E, Suite 400 Shakopee, MN 55379, USA Hours of Operation: Monday – Friday, 7:00am – 6:00pm (CST) Entire contents copyright © 2018 Cyber Power Systems, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited. Copyright © 2018 Cyber Power Systems, Inc.
